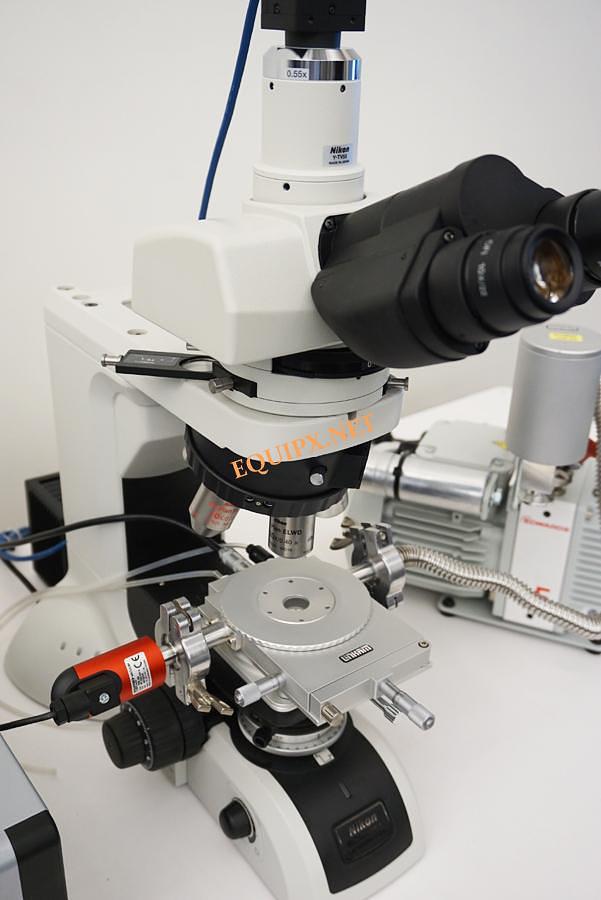

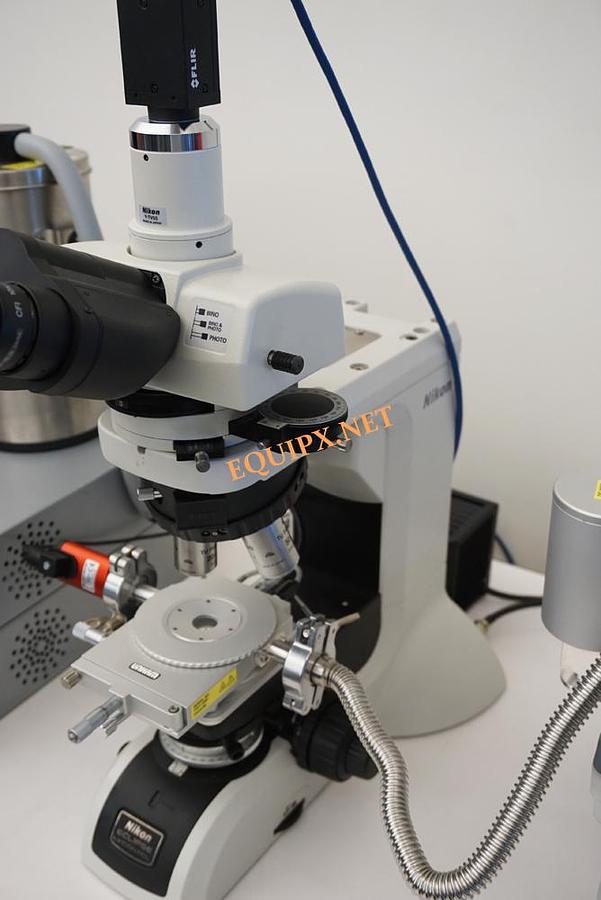

Nikon LV100N POL Polarizing microscope with Linkam FDCS196 Freeze drying vacuum stage and FLIR 3mp camera

Nikon LV100N POL Polarizing microscope with Linkam FDCS196 Freeze drying vacuum stage and FLIR 3mp camera

$23,500 (USD)

or
Call (408) 209-9278

Description

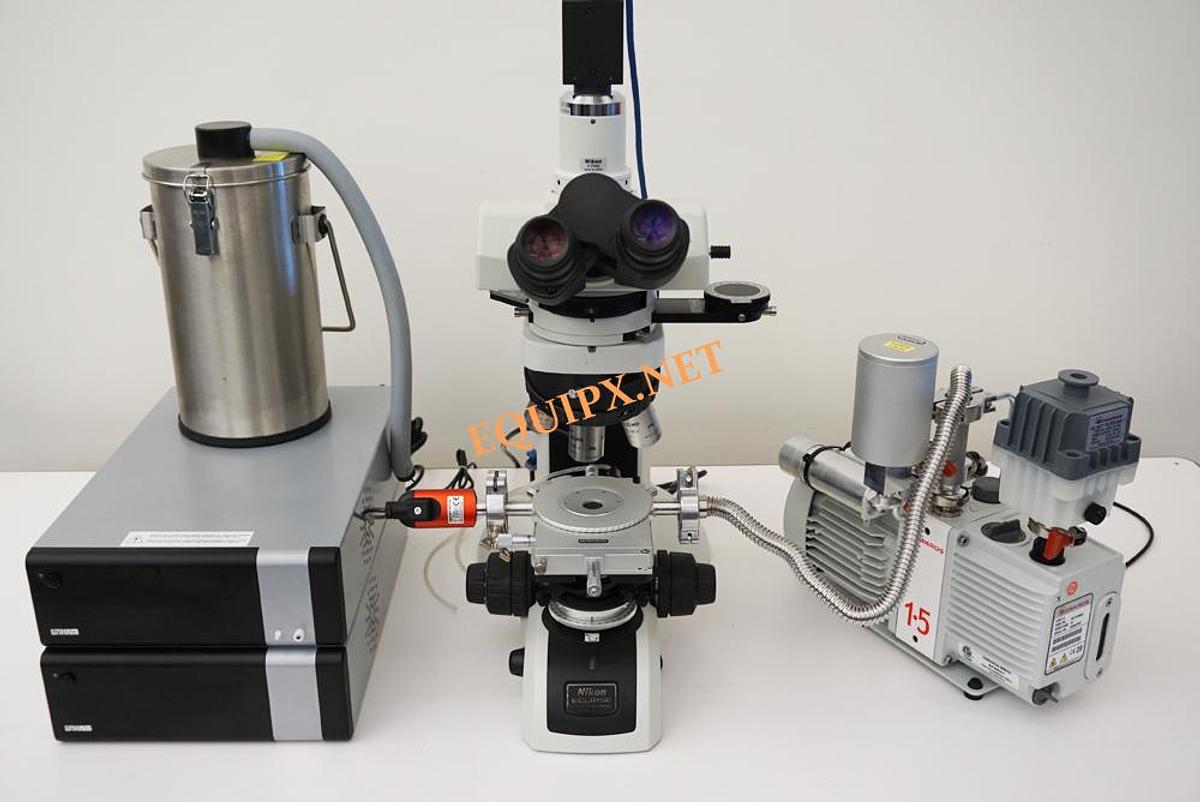

Nikon LV100N POL microscope with Diascopic illumination configured with Linkam freeze drying stage

TU Plan 5x/10x/20x ELWD/50x ELWD objectives

Linkam LNP96S and T96-S controllers

Edwards E2M-1.5 vacuum pump

Manufacture date 2020

FDCS196 Freeze Drying System Specifications

  • Temperature range < -195°C to 125°C

  • Up to 150°C/min heating

  • Temperature stability <0.1°C

  • 16mm XY sample manipulation

  • Sample area 22mm diameter

  • Vacuum tight sample chamber to 1 x 10-3mbar (subject to temperature used) even with XY manipulation

  • Clamps directly to the microscope substage for stability

  • 100 Ohm platinum resistor sensor

  • Light aperture 1.3mm diameter

  • Silver heating block for high thermal conductivity

  • Direct injection of the coolant into the silver block

  • Single ultra thin lid window 0.5mm

  • Objective lens working distance 4.8mm

  • Condenser lens minimum working distance 12.5mm

  • Range of condenser extension lenses available

  • Can be used with all microscope techniques

  • Suitable for confocal, Laser Raman, IR and X-ray

  • Stage body size 135mm x 92mm x 21.7mm

    • The FDCS196 is supplied with 0.3mm thick lid/base windows (not 0.2mm).

    FLIR GS3-U3-32S4C-C 1/1.8" Grasshopper®3 High Performance USB 3.0 Color Camera

  • Frame Rate
    121 fps
  • Lens Mount
    C-Mount
  • Pixel Size
    3.45
  • Resolution
    2048 × 1536
  • Sensor
    1/1.8" Sony IMX252 CMOS
  • ADC
    10-bit, 12-bit
  • Chroma
    Color
  • Megapixel
    3.2 MP
  • Readout Method
    Global Shutter
  • Compliance
    CE, FCC, KCC, RoHS. The ECCN for this product is: EAR099.
  • Machine Vision Standard
    USB3 Vision v1.0
  • Operating Humidity
    20 to 80% (no condensation)
  • Operating Temperature
    0° to 50°C
  • Storage Humidity
    20 to 95% (no condensation)
  • Storage Temperature
    -30° to 60°C
  • Image Processing
    Gamma, lookup table, and sharpness
  • Serial Port
    1 (over non-isolated I/O)
  • Flash Memory
    2 MB non-volatile memory
  • Image Buffer
    128 MB
  • Trigger Modes
    Standard, bulb, overlapped, multi-shot
  • User Sets
    2 user configuration sets for custom camera settings
  • Exposure Range
    0.005 ms to 32 seconds
  • Gain Range
    0 dB to 47.994 dB
  • Partial Image Modes
    Pixel binning, ROI
  • Absolute Sensitivity Threshold (y)
    8.33 (Mode 0) / 4.45 (Mode 7)
  • Quantum Efficiency Blue
    53 (Mode 0) / 54 (Mode 7) (% at 470 nm)
  • Quantum Efficiency Green
    65 (Mode 0) / 65 (Mode 7) (% at 525 nm)
  • Quantum Efficiency Red
    56 (Mode 0) / 57 (Mode 7) (% at 640 nm)
  • Saturation Capacity (e-)
    9747 (Mode 0) / 9838 (Mode 7)
  • Temporal Dark Noise (e-)
    4.75 (Mode 0) / 2.33 (Mode 7)
  • Dynamic Range dB
    65.38 (Mode 0) / 70.82 (Mode 7)
  • Mass
    90 grams
  • Auxiliary Output
    3.3 V, 150 mA maximum
  • Interface
    USB 3.1 Gen 1
  • Non-isolated I/O Ports
    2 bi-directional
  • Opto-isolated I/O Ports
    1 input, 1 output
  • Dimensions
    44 mm × 29 mm × 58 mm
  • Power Consumption
    4.5W
  • Power Requirements
    5 V via USB3 or 8-24 V via GPIO (e×ternal power is recommended for this model)
  • Hard Drive
    200 MB hard drive space
  • RAM
    2GB RAM or more
  • Port
    USB 3 Port
  • Operating System
    Windows or Linux (32–bit or 64–bit)
  • CPU
    3.1 GHz or equivalent CPU


    • Show All

    Specifications

    Stock Number4488
