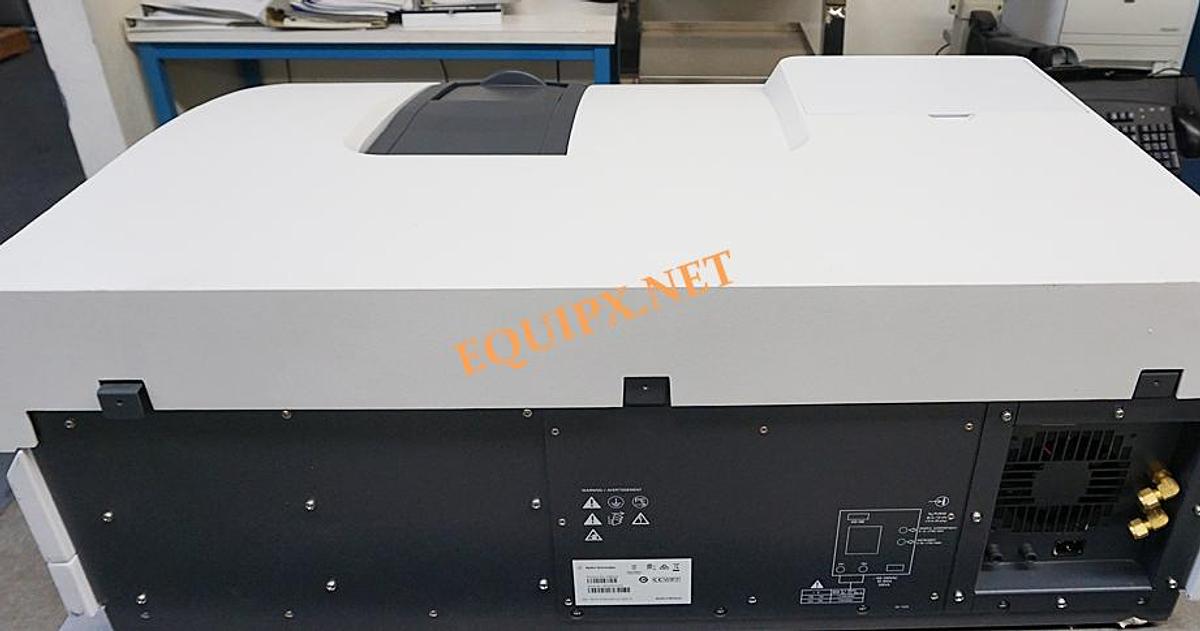

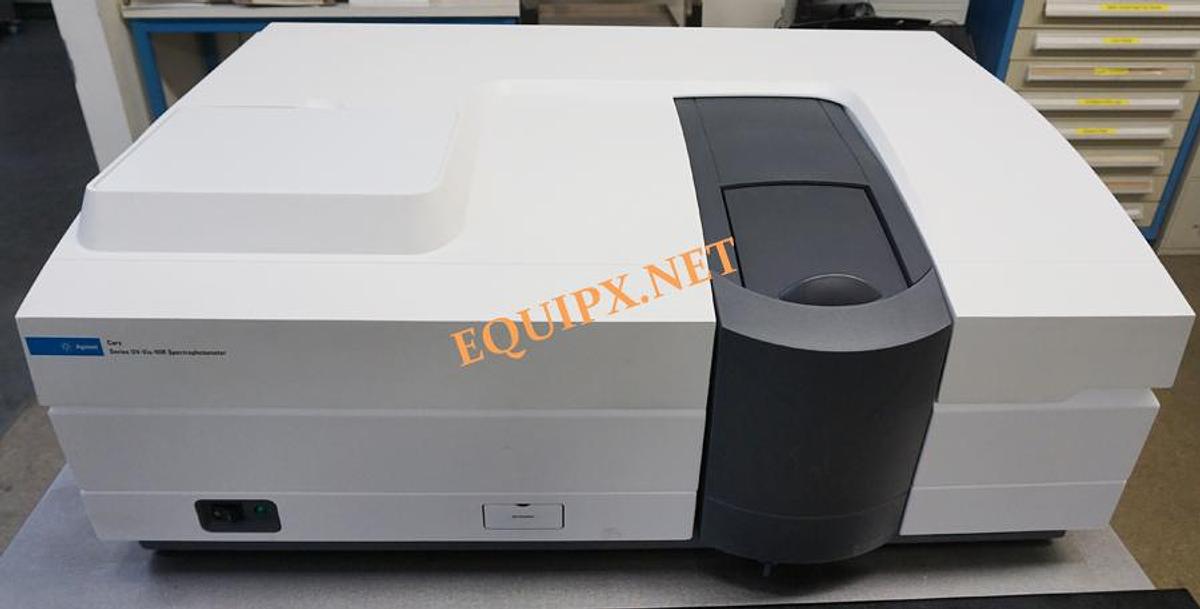

Agilent Cary 5000 UV-VIS-NIR spectrophotometer 175nm to 3300nm with WIN UV software (2020) NEVER INSTALLED

Description

Agilent Product # G9825A
Serial # MY2041CD02

Date of manufacture Oct 2020

INCLUDES ALL ITEMS HIGHLIGHTED BELOW

NEVER INSTALLED Cary 5000 UV-VIS-NIR spectrophotometer with accessories

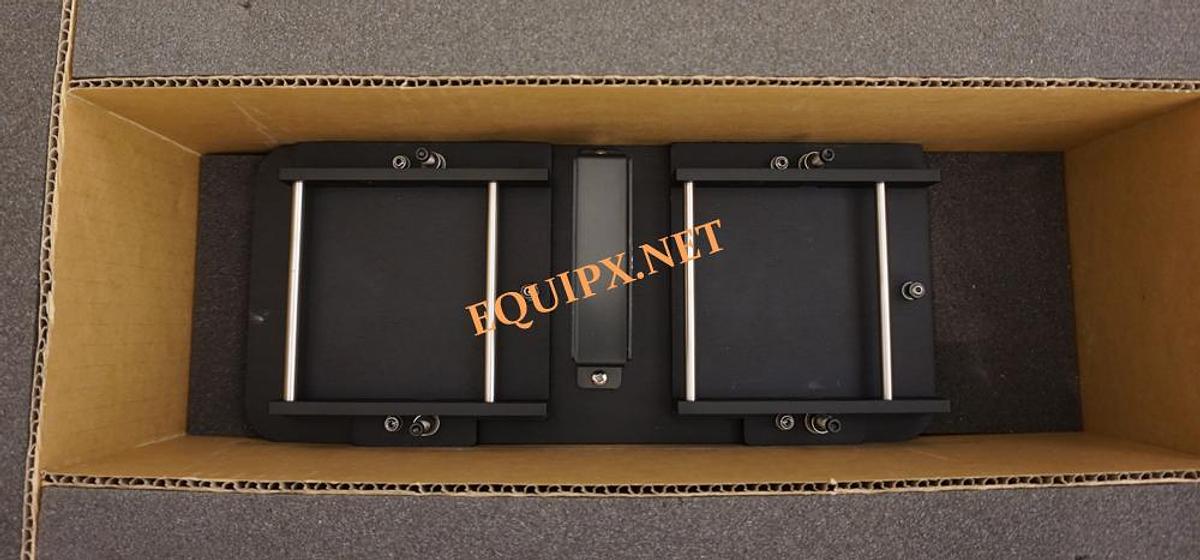

Solid sample holder and sub-plate pn 210179100

Cell holder base and sub plate

Standard cell holder

IEEE cable

(2) Semi-Micro Rect Cell UV 10mm 900uL pn 6610012700

(2) matched pair of 10mm rectangular Quartz stoppered cells pn 6610001100

Aperture mask, solid sample holder, 1mm

Linearity Calibration filter kit pn 9910095700

Visible source lamp Cary 4/5/6000i

Operation manual and quick start guide, Declaration of Conformity and Software license

DVD's:
Cary WinUV software ver. 6.2.0 March 2016

Cary 7000 UMS eLearning and eFamilarization DVD Rev 1.0.0

National Instruments DVD5 kit, NI-488.2 fo Windows and LABview realtime ver 20.0

The Cary 5000 UV-Vis-NIR spectrophotometer is a high-performance UV-Vis and NIR spectrophotometer with superb photometric performance in the 175–3300 nm range. Using a PbSmart detector, the Cary 5000 extends its NIR range to 3300 nm making it a powerful tool for materials science research. The Cary WinUV software, a modular Windows-based software, makes it easy to perform powerful analysis and control a number of optional accessories.

The large sample compartment can be expanded to hold large accessories and integrating spheres for spectral and diffuse reflectance. The LockDown mechanism makes it possible to quickly change and position accessories for reproducible results.

Features

Measure beyond 8.0 absorbance units with reference beam attenuation

Measure 175 to 3300 nm using a PbSmart NIR detector for extended photometric range

WinUV software—modular software with power analysis and enhanced transfer and report export capabilities

Versatile set of accessories for materials research including spectral and diffuse reflectance

Variable slit widths (down to 0.01 nm) for optimum control over data resolution

Large sample compartment with LockDown mechanism for quick changes and positioning for reproducible results

Maximum light throughput using Schwarzchild coupling optics for higher accuracy at low transmission levels

Minimal noise and stray light using a floating aluminum casting and double Littrow monochromator

Extended dynamic range by attenuating the reference beam more in line with the sample absorbance

Nitrogen pumping—separate purging in the sample and monochromator compartments

Specifications

Control Software	Cary WinUV for UV-Vis-NIR Applications
Depth	710 mm (28")
Height	380 mm (15")
Light Source	Tungsten halogen visible and deuterium arc UV
Maximum Scanning Speed	UV-Vis 2,000 nm/min NIR 8,000 nm/min
Photometric Range (Abs)	8 Abs
Photometric System	Double beam
Power Requirements	100-240 VAC, 50/60 Hz
Spectral Bandwidth	UV-Vis 0.01 - 5.00 nm NIR 0.04 - 20 nm
Wavelength	175 - 3300 nm
Weight	91 kg
Width	1020 mm
Z-height	20 mm
