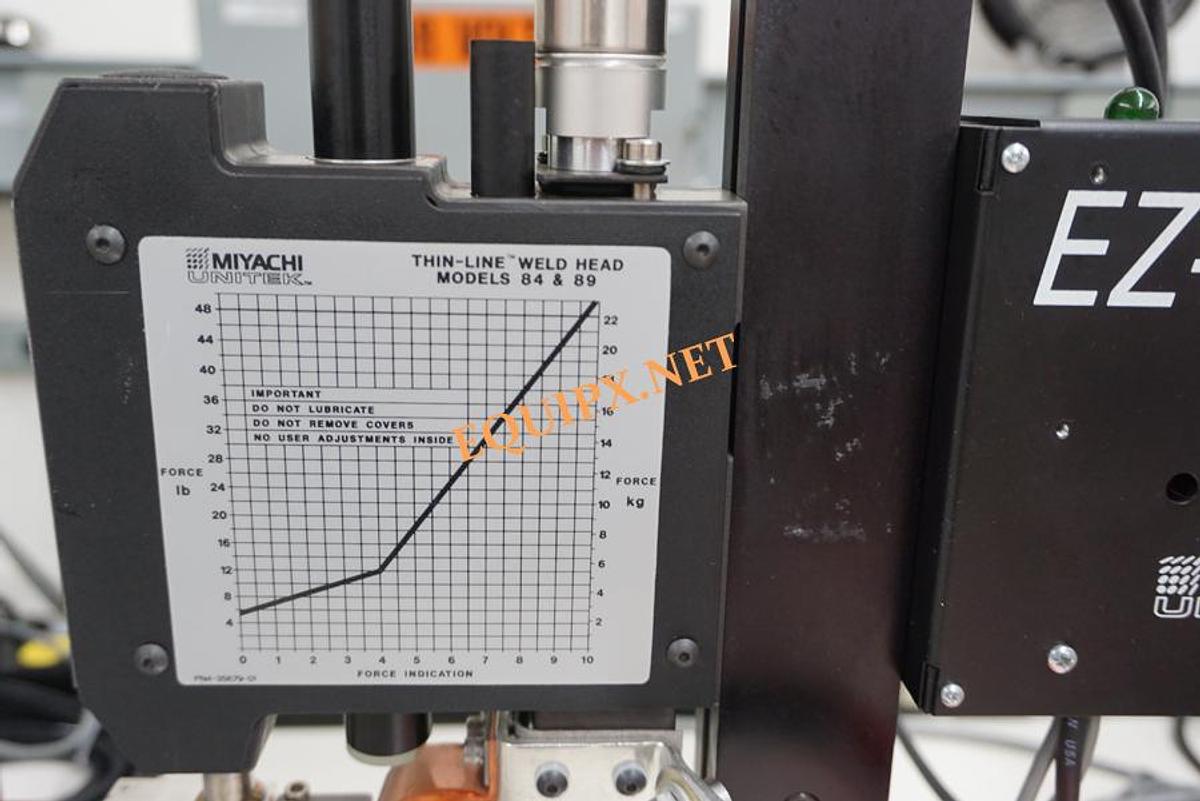

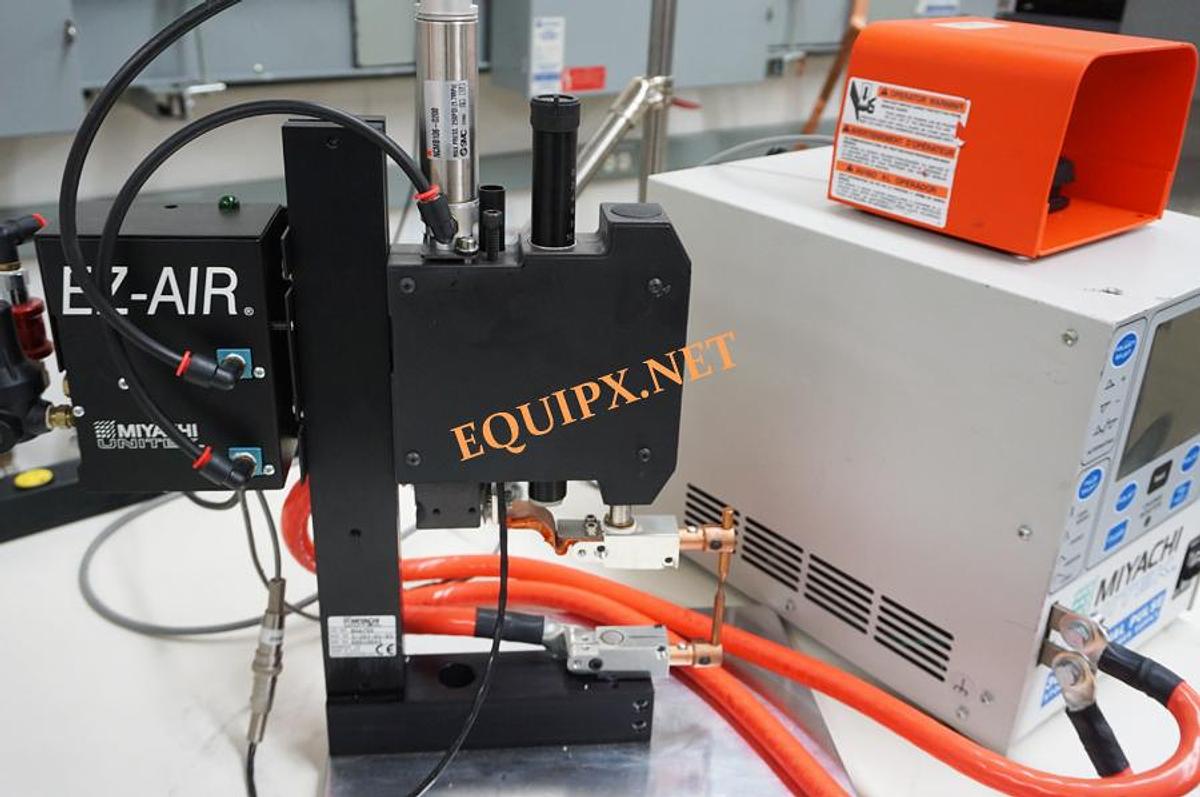

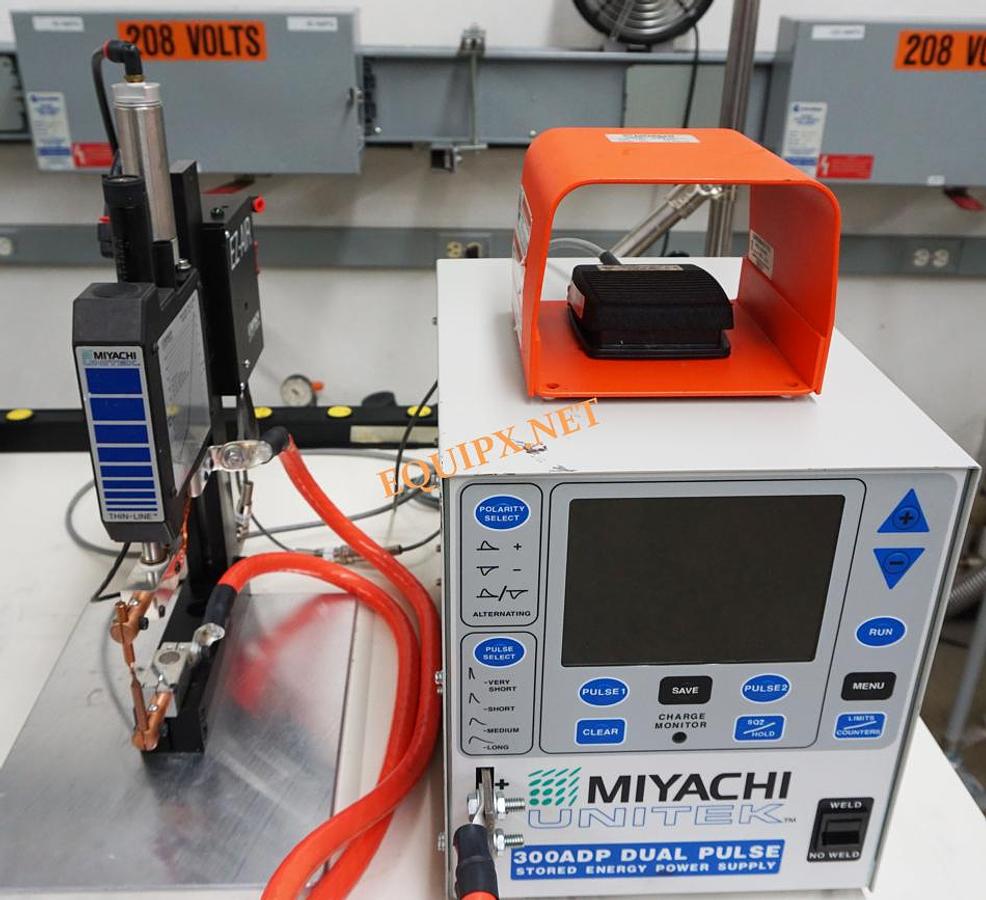

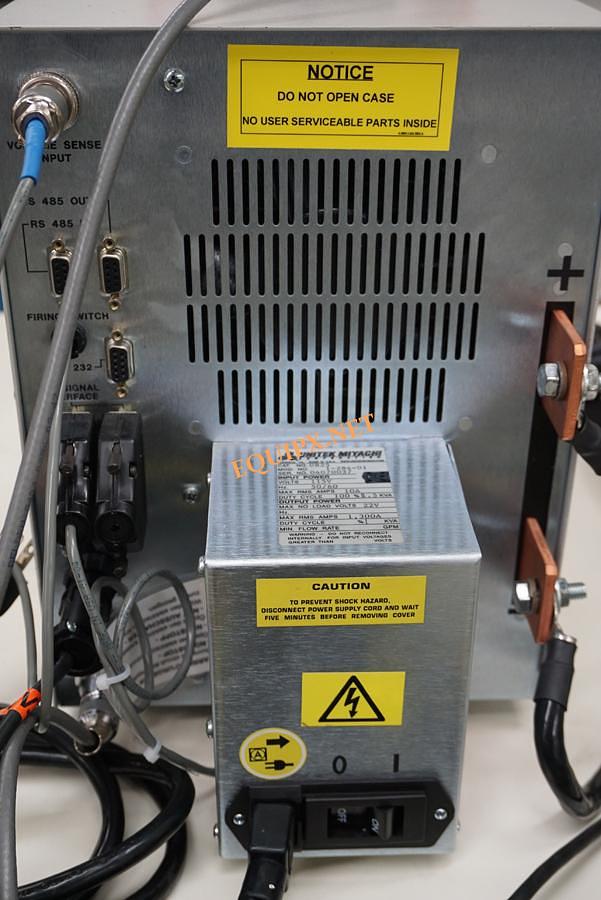

Miyachi Unitek 300ADP 300ws Capacitive Discharge Welder and 80A/EZ weld head

• Built-in current monitor

• Set pulse limits with second pulse inhibit

• Four pulse widths with fast rise times

• Automatic polarity switching

• Upslope function

• Quick view color screen TYPICAL APPLICATIONS KEY FEATURES

• Dual pulse function helps overcome surface inconsistencies

• Built-in monitor measures peak current for both pulses for process monitoring

• Process monitor features a color coded bar graph on the RUN screen that provides instant weld history of In Limit/ Out of Limit percentages to assess process performance

• Upper and lower limits can be set for both pulses, with an option to inhibit Pulse 2 if Pulse 1 is out of limits. Prevents weld blow out

• Upslope function allows gradual ramping of weld energy to alleviate weld splash

• Automatic polarity switching between pulses provides even heating between electrodes and increases electrode life

• Up to four software selectable pulse widths increases the range of welding applications and improves process optimization.

• High resolution 6.5 in color display – large, clear 6.5 inch high resolution color display shows all weld information on the RUN screen
