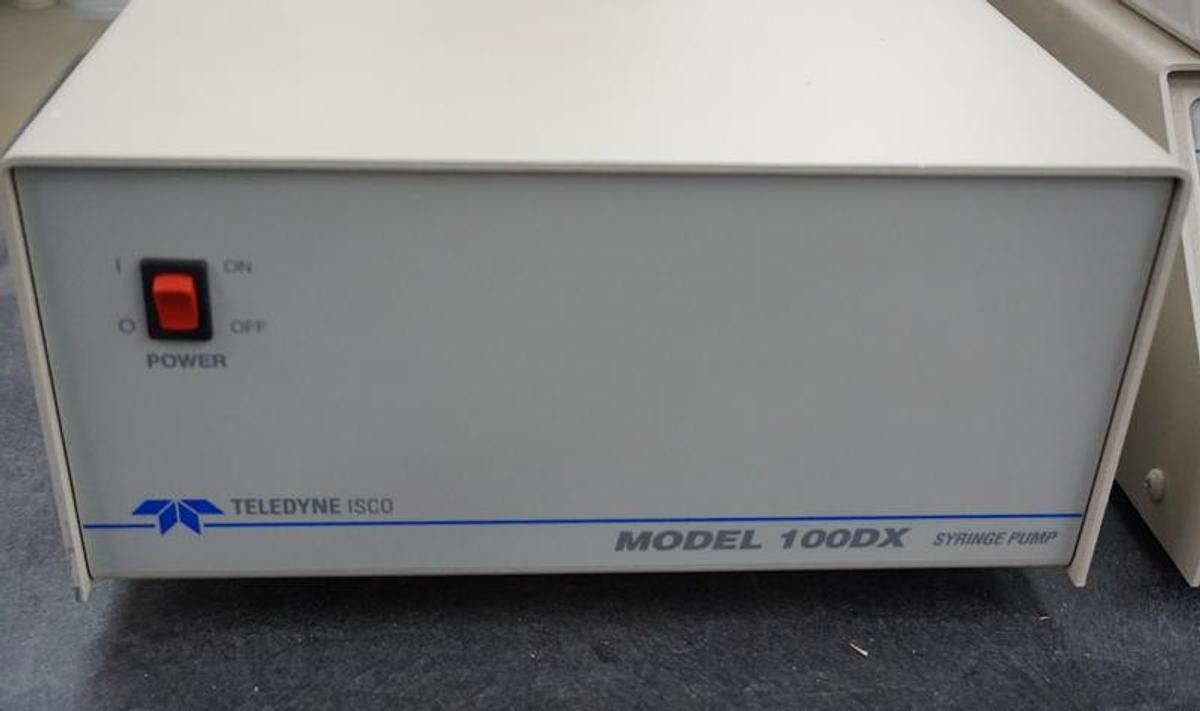

Teledyne 100DX High Pressure 10,000PSI Syringe Pump

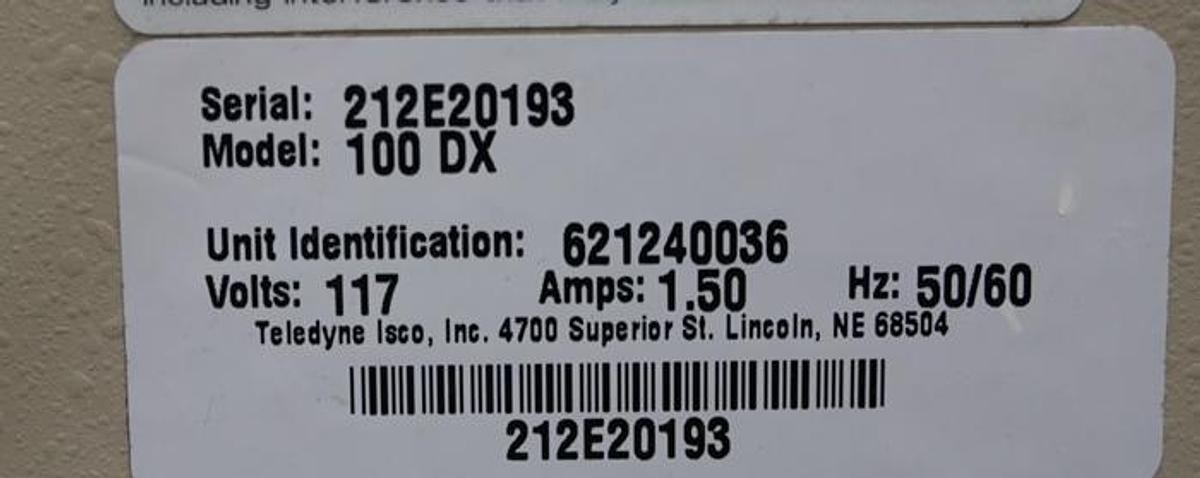

sn 212E20193

Teledyne ISCO 100DX Syringe Pump

High Pressure Applications - up to 10,000 psi

The 100DX was developed initially to meet the demand for a 10,000 psi pump with fast flow and refill for Supercritical Fluid Extraction. It has also found many other applications for jobs requiring the combination of high pressure and flow rate up to 50 ml/minute. For the ultimate low-flow precision, we recommend the 100DM model, which has the same pressure rating but is geared for maximum flow of 30 ml/minute and double the displacement resolution of the 100DX.

Dual-pump 100DX systems are available with a choice of valve packages for non-stop continuous flow.

Features

100DX pump has 1/8" Valco fittings for secure high-pressure connections.

Integral button-style pressure transducer in cylinder cap assures excellent stability and repeatability.

Rugged single-ratio drive train has auto-lubricating gears to assure long life and low maintenance.

Each Isco D-Series syringe pump is bench tested at the factory. All pumps are CE compliant and certified to UL 3101 and EN 61010-1 standards.

Cylinder wash system protects the seals from deposits.

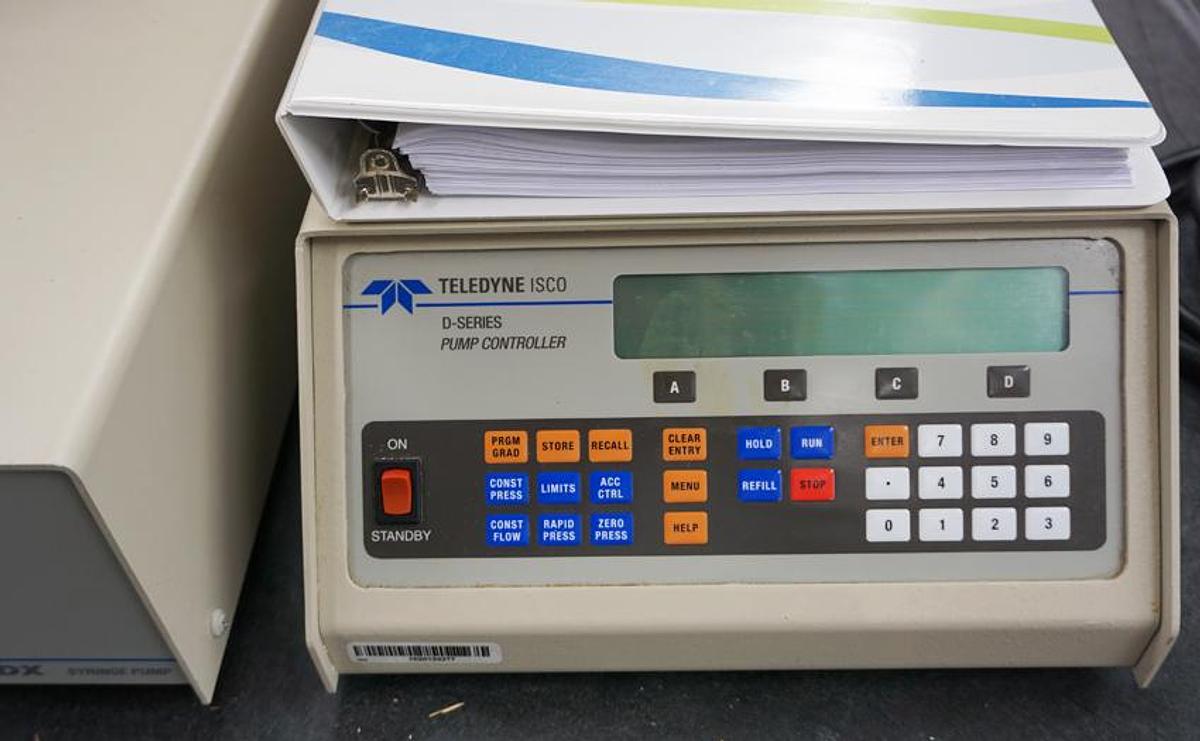

Exclusive "Smart Key" controller. All Isco D-series pumps use the same controller that can operate any three pump modules, either independently or together. Operating modes include:
- Single pump independent constant flow or pressure
- Single pump flow - or pressure - ramp programming
- Single pump dispensing
- Dual pump continuous constant flow or pressure
- Dual pump concentration gradients
- Three-pump configured systems

RS-232 serial interface for computer control or monitoring of operating parameters.
