Manually operated

Clamping force 12 tons

Daylight opening 0″ – 10″ (Factory set at 4-1/2″)

Stroke 5-1/8”

Four (4) fully threaded columns

Heated platen package, including:

Two (2) 12”x 12” electrically heated steel platens

2600 watts per platen

Temperature range up to 650 deg F

One (1) digital temperature controller per platen

0-24,000 lb Analog pressure gauge, reading in 200 lb increments (digital gauge also available)

230/1 supply voltage FLA 22

Light gray safety shield

Dark gray frame

Electrical disconnect (non-fused)

Dimensions: 29”L-R x 27”F-B x 44”H (uncrated)

Weight: 851 pounds (uncrated)

sn 140124

New seals and rebuild kit installed by EquipX August 2025

Stock Number	4969
Sort	0

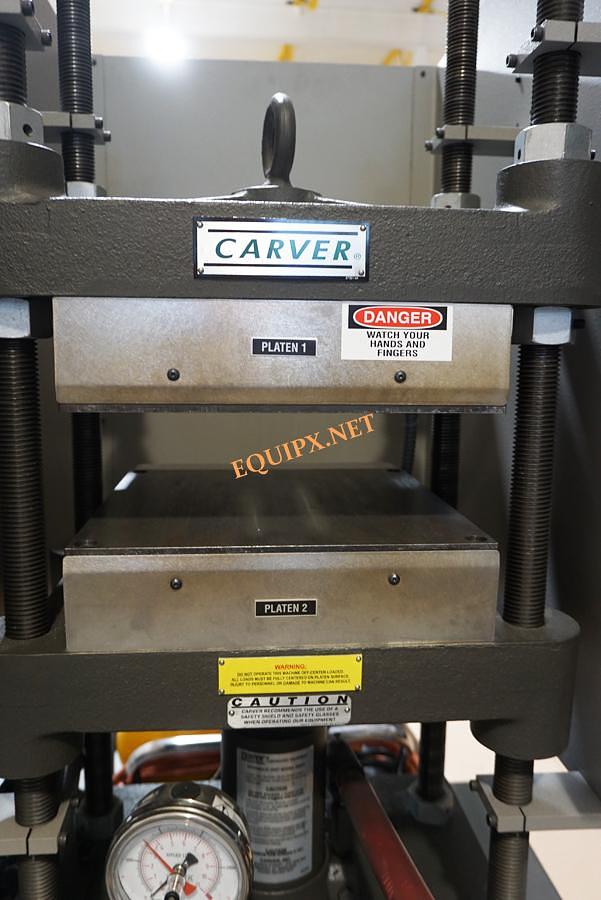

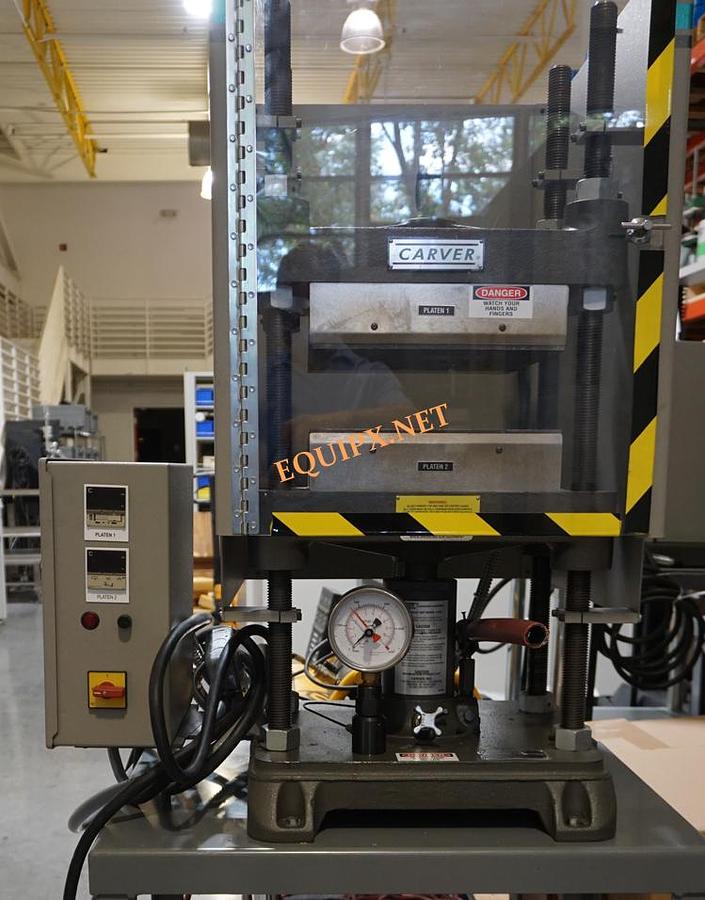

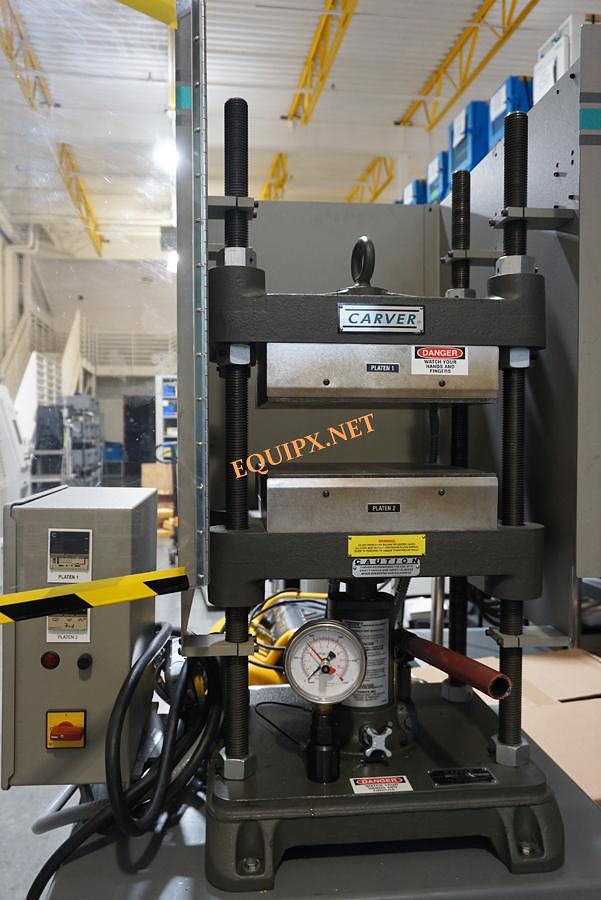

Carver 4122 manual 4 post heated press, 12 Ton capacity, 12x12 heated platens (max 650F) , floor stand, Hydraulics rebuilt
