2017 Cyber Technologies CT 350 3D Non-Contact Optical Profiler (PC and software upgraded 2023)

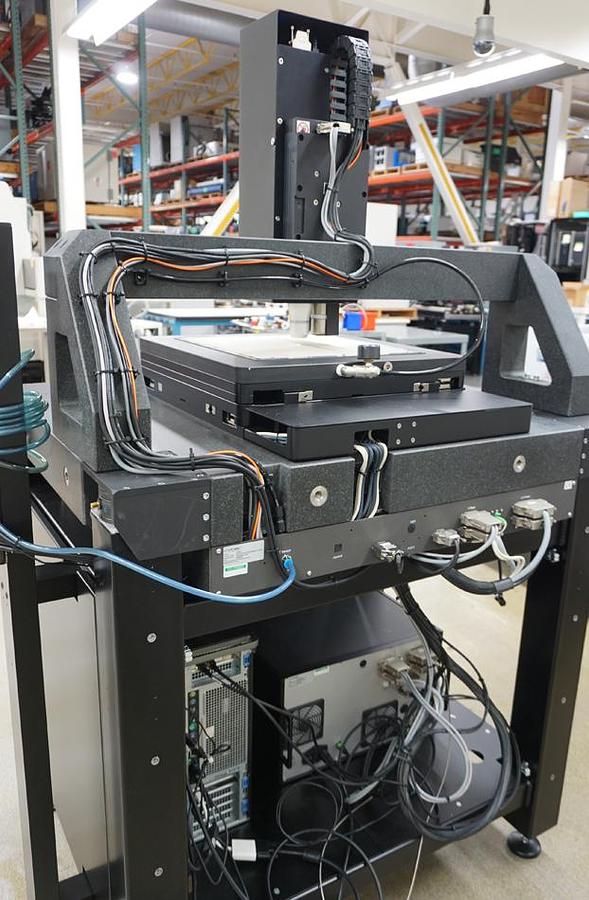

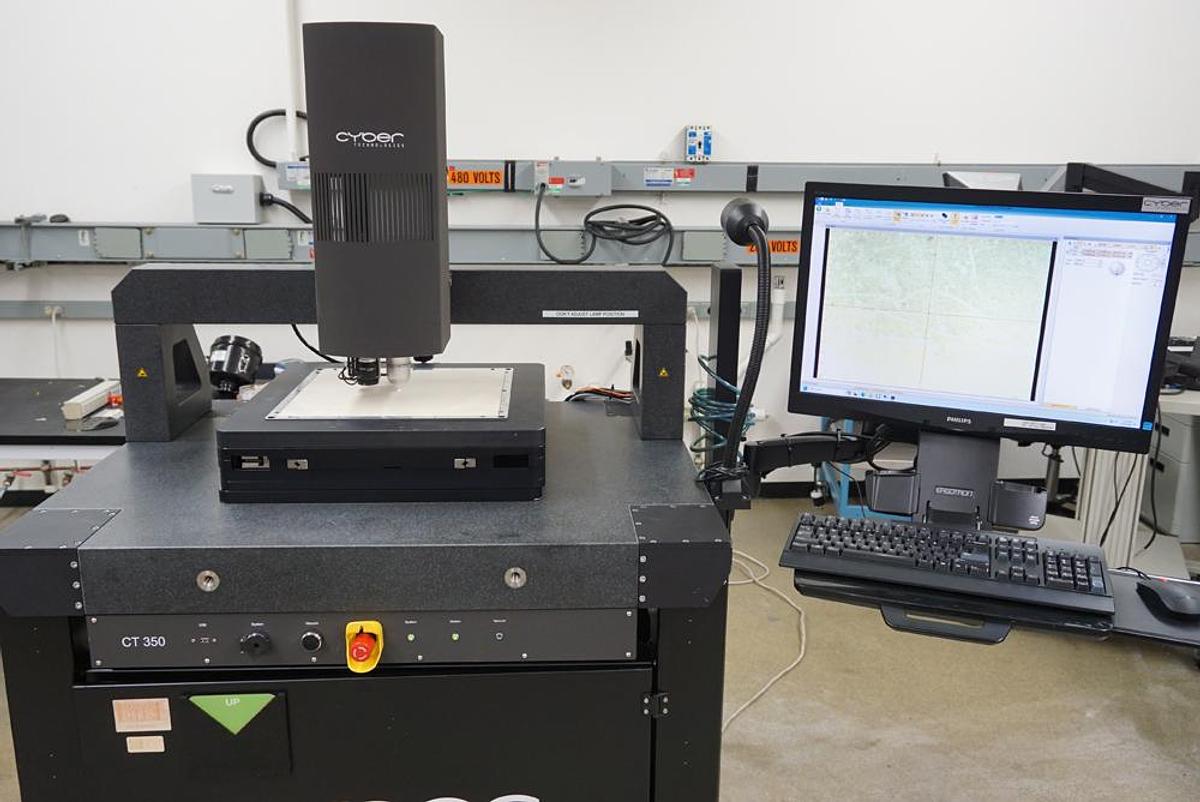

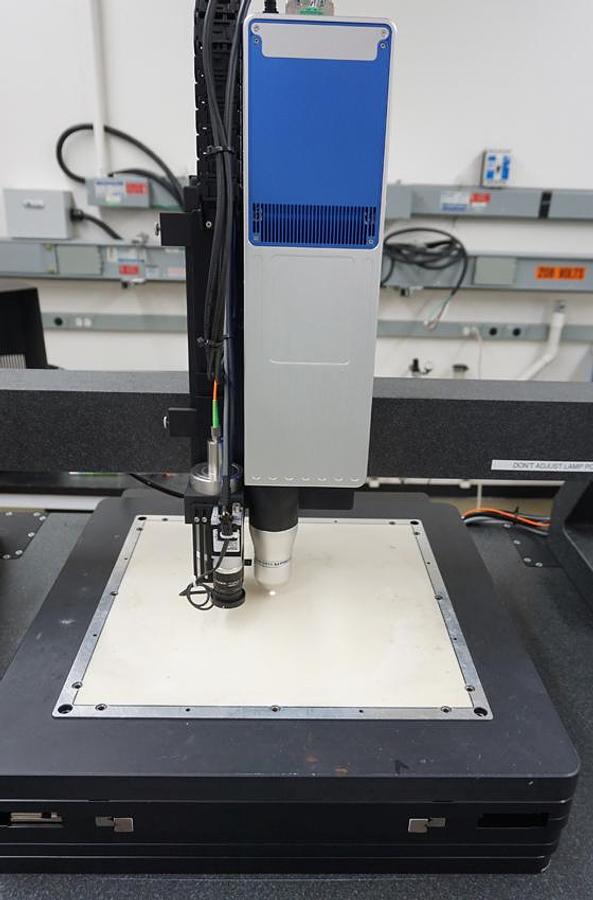

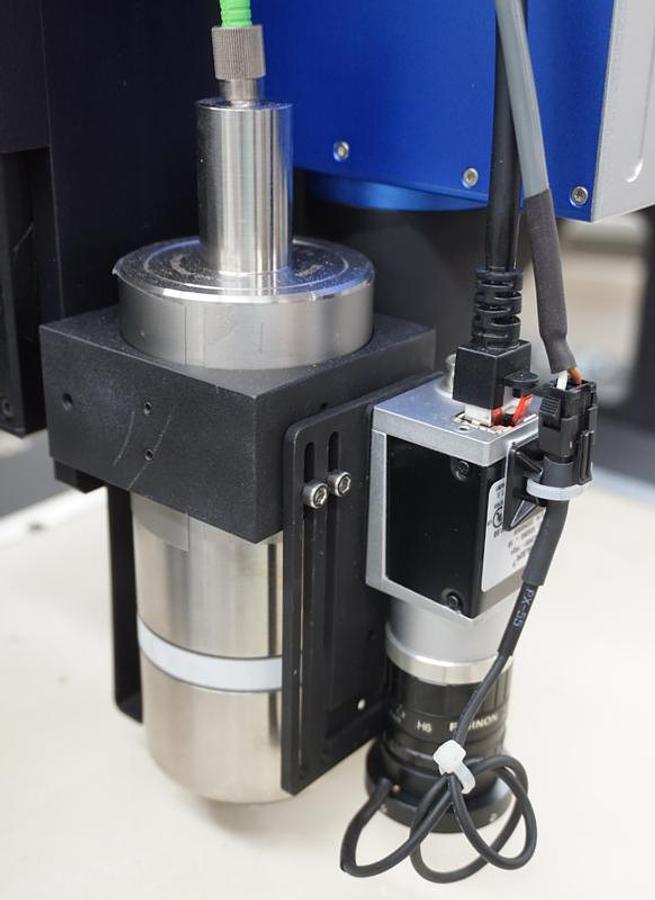

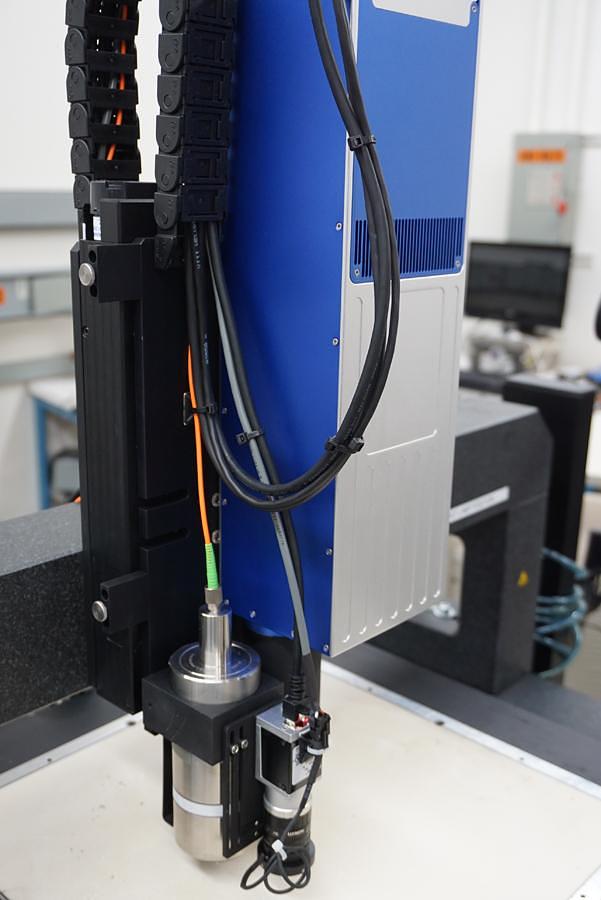

Precitec CHRocodile SE-1000 Interferometric Point Sensor

Range: 1.000mm (resolution 0.035um)

Measuring Distance 20.800um

Spot Diameter: 3.5um

Measuring Angle: 90 degrees +/- 45 degrees

Precitec L-CHR 500 Line Sensor

Line length 1.4325 mm

Pitch: 7.500 um

Range: 500 um

Axial Resolution: 50.00 nm

Numerical Aperture: 90 degrees +/- 38

Working Distance: 12.00 mm

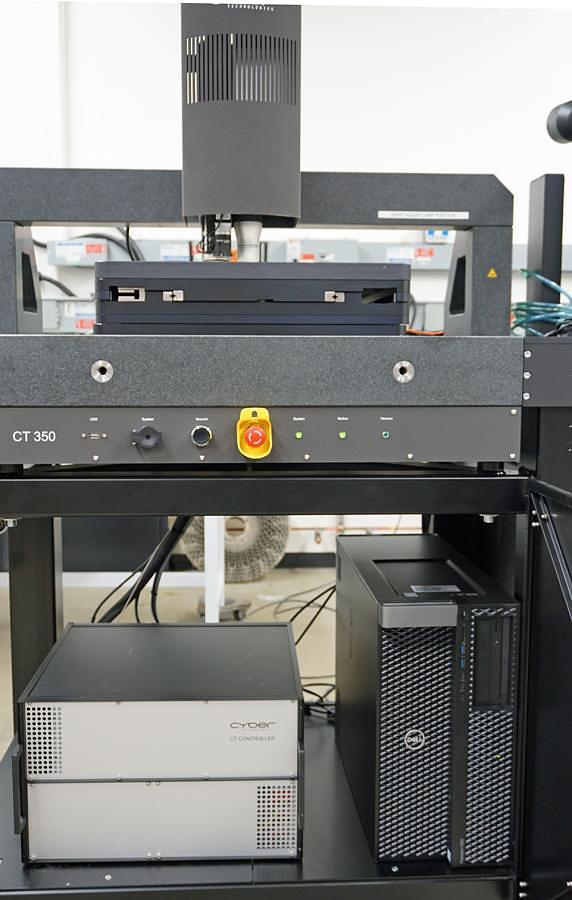

Upgraded Windows 11 PC

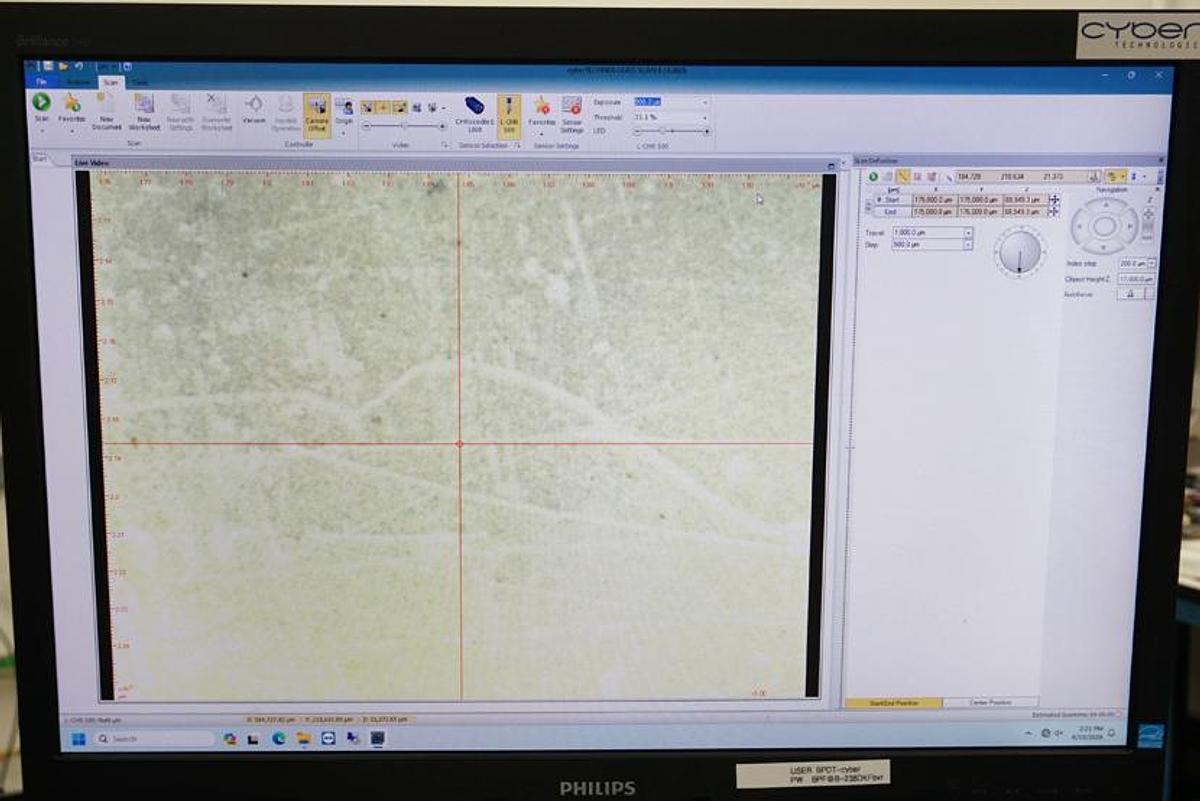

Scan Suite 8.14 version 8.14.8626 SP1 x64 Build 8/13/2023 System 2810001

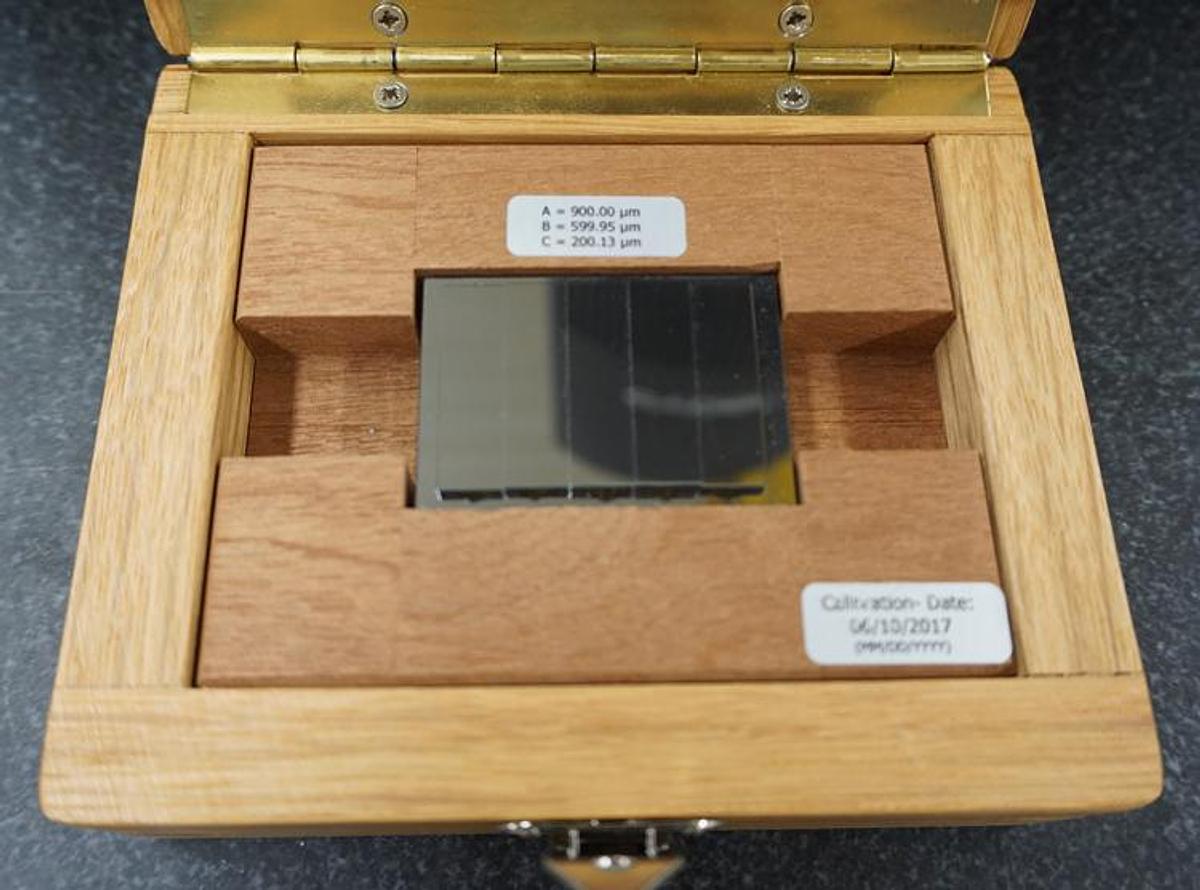

Calibration standard

Basler acA2500-14gc Progressive scan CMOS color video camera with GigE Machine Vision

The Precitec CHRocodile SE is an ultra-high-speed interferometric point sensor designed for non-contact distance and thickness measurements. It uses advanced optics to measure layers with extreme accuracy. It is widely used in industries like electronics and semiconductor manufacturing.

Key Features and Specifications of Precitec CHRocodile SE point sensor

• Measurement Type: Measures distance and thickness passively.
• Material Versatility: Works flawlessly on any infrared-transparent material, including rough or highly doped silicon wafers, semi-transparent plastics, and glass.
• Exceptional Speed: Captures data at incredibly fast rates (up to 66,000 to 70,000 Hz) to keep up with rapid, high-volume production lines.
• Accuracy: Delivers nanometer-level resolution, allowing it to measure even the smallest microstructures.
• Easy Integration: Features a small, compact design. It easily fits into tight spaces in complex manufacturing and testing machines.
