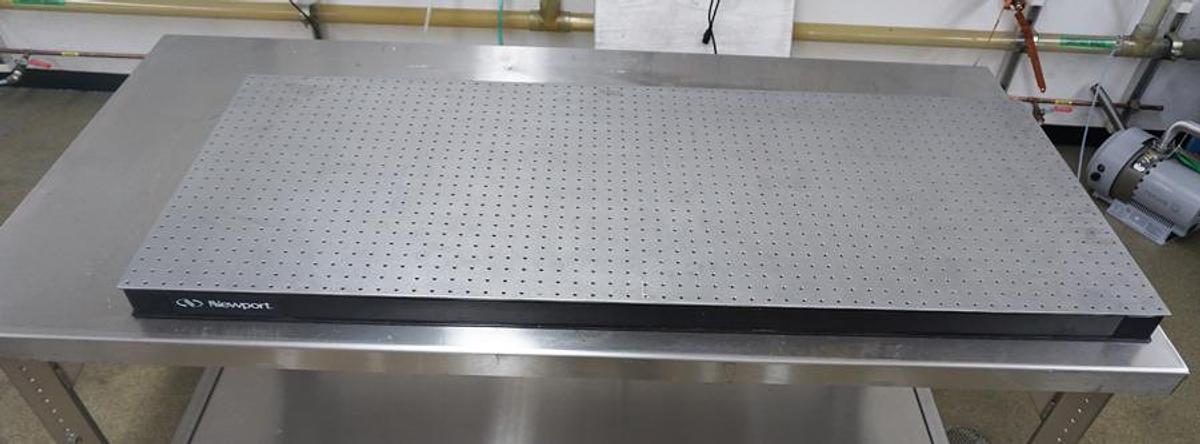

Newport M-IG-25-2 Optical Breadboard, 3.4 mm Skin, 600 x 1500 x 58 mm, M6

The M-IG-25-2 Industrial Grade Honeycomb Core Optical Breadboard has a 600 mm width, a 1500 mm length, and is 58 mm thick with M6 Metric mounting holes on 25 mm grid with 12.5 mm boarders. The M-IG Series has become the standard for industrial applications not requiring the extremely high rigidity of the Newport RG and SG Series products. It supports a variety of industrial and biomedical systems for use in production or quality measurement. The stainless steel top features a precision tapped sealed hole grid to allow system configurability. The trussed core honeycomb design offers excellent rigidity and damping. Damped side panels and top further reduce vibration noise problems.

• Broadband Damping
• Constrained layer core, damped working surface and composite edge finish
• Width
• 600 mm
• Length
• 1500 mm
• Thickness
• 58 mm
• Working Surface
• 3.4 mm thick 400 Series ferromagnetic stainless steel
• Surface Flatness
• ±0.15 mm over 600 mm square
• Bottom Skin Material
• 3.4 mm thick carbon steel
• Microlocks
• No
• Mounting Holes
• M6
• Mounting Hole Type
• Cut (not rolled) threads with countersink
• Mounting Hole Pattern
• 25 mm grid
• Mounting Hole Borders
• 12.5 mm borders
• Hole Sealing Type
• Easy clean non-corrosive high impact polymer conical cup, 19 mm deep
• Core Design
• Trussed honeycomb, vertically bonded closed cell construction, 0.25 mm Steel sheet materials, 0.76 mm triple core interface
• Weight
• 68.2 kg
