TPS Blue M DCI-336-B-MP750 Inert gas oven max 350C with Watlow F4T Controller and Teledyne Trace O2 Analyzer with flow control box- 208v 1ph

11 cu ft

Max temp 350C

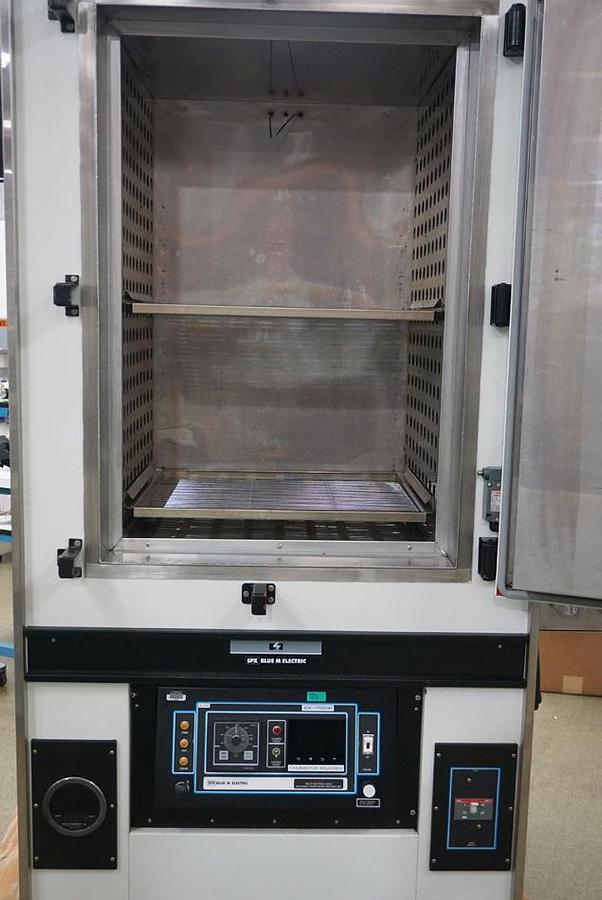

Chamber dimensions 25 x20 x38 (WxDxH)

Watlow F4T Controller with touch screen

Swivel casters with leveling feet

Safety door switch

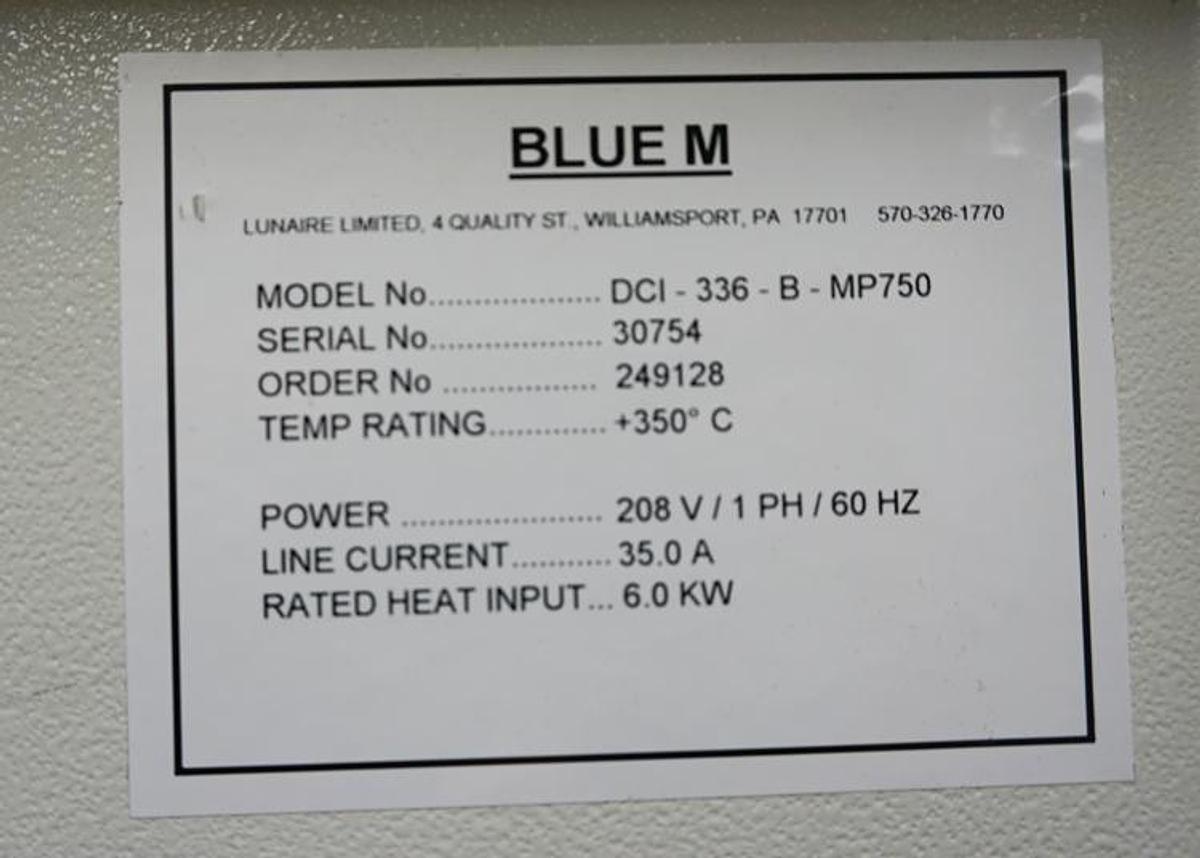

208v/ 1PH /60hz, 35.0 A line current

Teledyne 3000TB Trace O2 analyzer with flow control box

Watlow F4T Controller Features • 4.3-inch, color touch panel with high-resolution, graphical user-interface • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability • 40 ramp and soak profiles with real-time clock and battery backup. • Ethernet Modbus® TCP connectivity • High-speed USB 2.0 host port • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility • Optional Data Logging capability • Optional Graphical Trend Chart • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment • Temperature stability: Typical ±0.1°F/°F (±0.1°C/°C) rise in ambient max

Trace Oxygen Transmitter

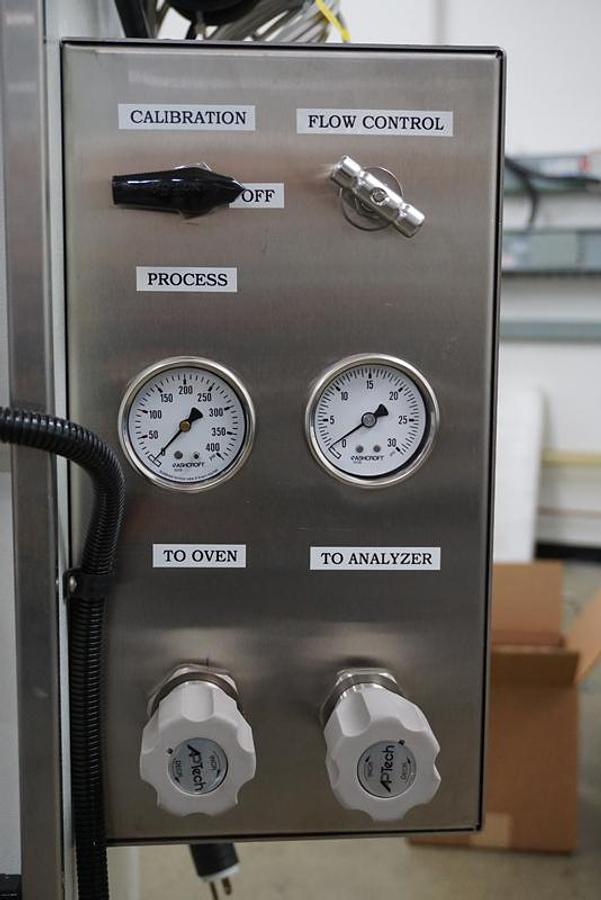

The trace oxygen transmitter option is designed for DCC, DCI, or IGF ovens. The Teledyne 3000 trace oxygen transmitter will use the second channel of the programmable controller to read and display the oxygen level measured inside the chamber. This O2 measurement system will be configured to turn on the chamber's purge system and turn off the heating element once a high O2 ppm condition is detected. The controller will be configured to prevent the start of the heating process until the O2 ppm level reaches the desired setpoint level. An alarm silence switch will be provided for the high O2 alarm. The system includes O2 solenoid valves, which will close and disable the sampling pump when the door is opened and remain off until the completion of the initial purge cycle is completed. The purge system is wired so that it does not turn on the heating elements of the oven during the purge cycle. The Series 3000 trace oxygen transmitter has a single range of 0-500 PPM which includes two manual isolation valves, two AC powered solenoid valves (used to protect the oxygen sensor from exposure to air), high capacity in-line filter, sample pump mounted on the side of the enclosure, and a flow meter.
