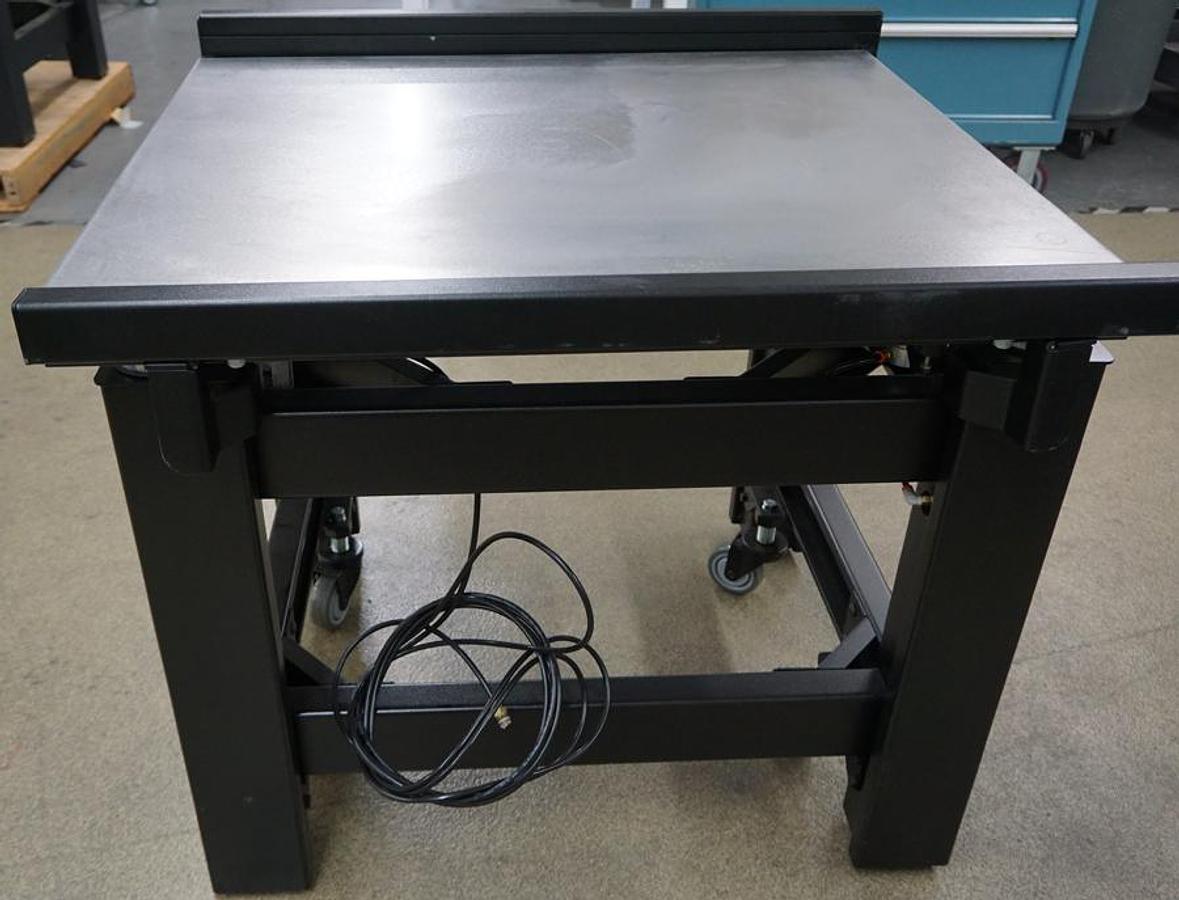

Ametek 63-7590S Vibration Isolation Table with 30"x36" smooth stainless top- includes casters, Front and Rear support bars

CleanBench with smooth top

750 x 900 mm 30" x 36″

Casters

Front and Rear support bars

• Gimbal Piston™ Isolators

• Thin-Wall Rolling Diaphragms

• All-aluminum height control valves

• Internal Piston Travel Restraints

• Tiebar Gussets

• Rugged Built in leveling feet

• Superior Table Tops

TMC 63 Series High-Performance Lab Tables provide an excellent vibration-free working surface for loads up to 350 lb (160 kg). Now with modular construction, these tables are recommended for use in such diverse applications as electrophysiology, cell injection, ultramicrotomy, photomicroscopy, scanning tunnel microscopy, and confocal laser scanning microscopy.

General Specifications

Isolator natural frequency:

High Input Specifications

Vertical  1.2 Hz

Horizontal 1.0 Hz

Low Input Specifications:

Vertical 1.5 – 2.0 Hz

Horizontal 1.2 – 1.7 Hz

Isolation efficiency @ 5 Hz:

Vertical: 70 – 85%

Horizontal: 75 – 90%

Isolation efficiency @ 10 Hz:

Vertical: 90 – 97%

Horizontal: 90 – 97 %

Gross load Capacity:

1,400 lbs. (640kg)

Net load Capacity:

350 lbs. (160kg)

Finish:

Medium texture black powder coat frame; stainless steel top.

Facilities required:

80 psi nitrogen or air
