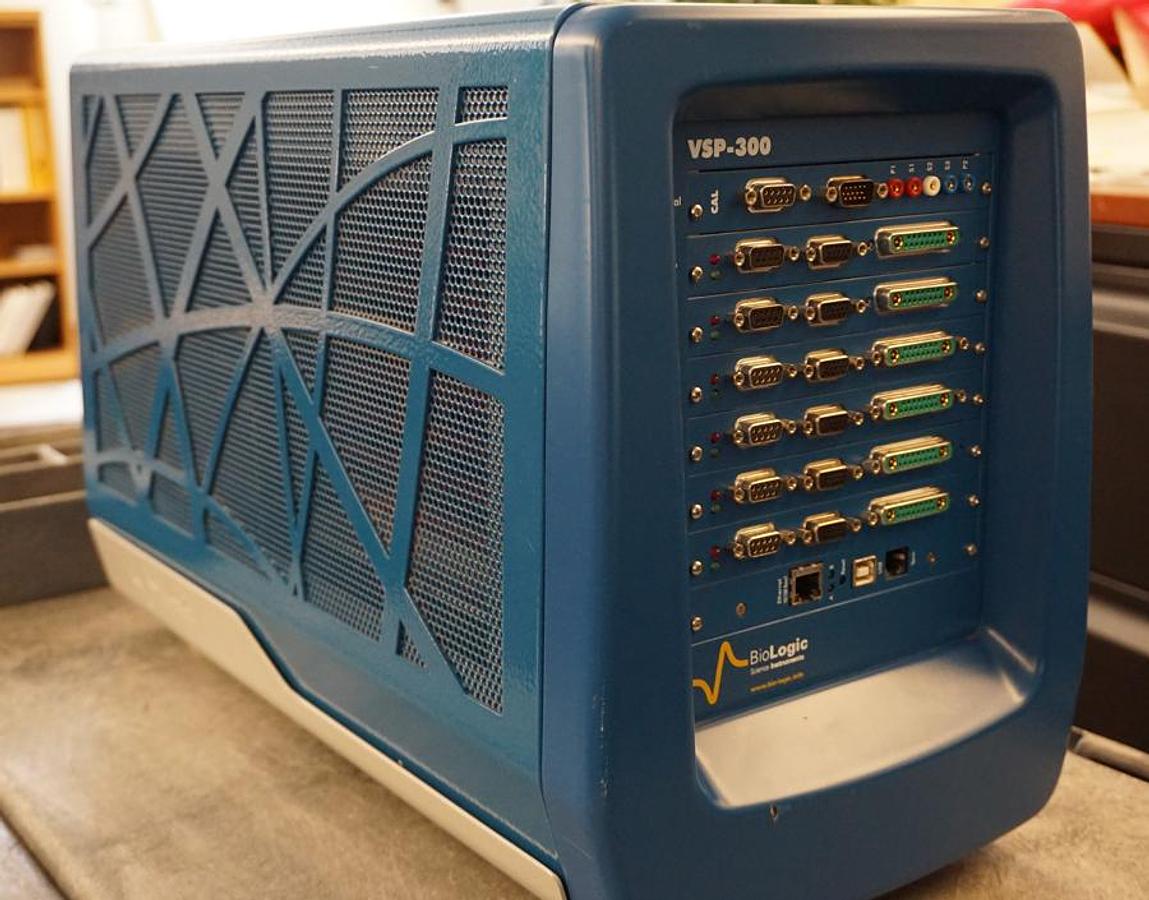

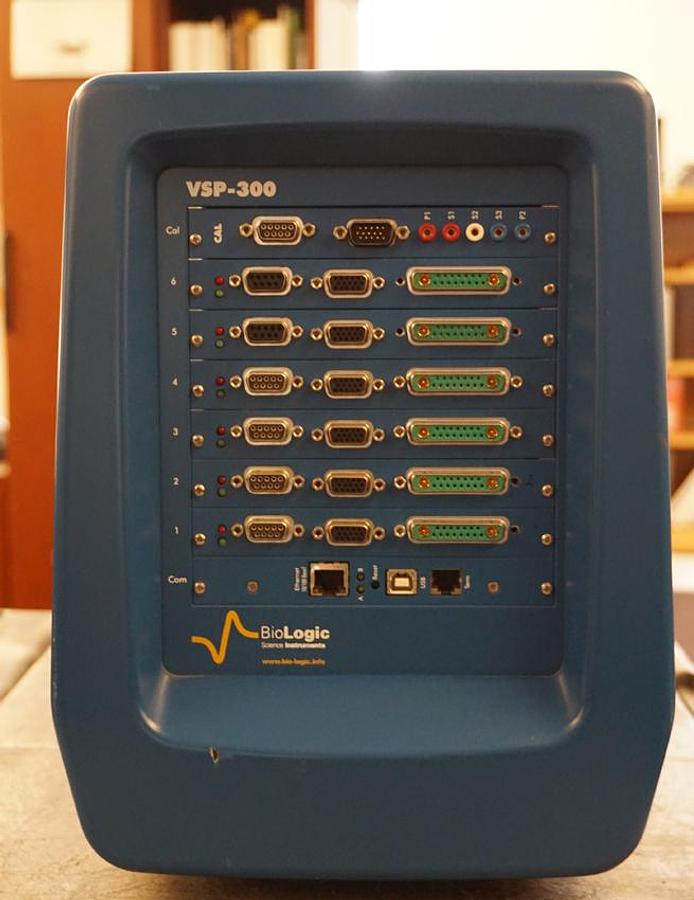

Biologic VSP300 6 Channel Potentiostat

6 Channel Boards (pn CIE39407/03)

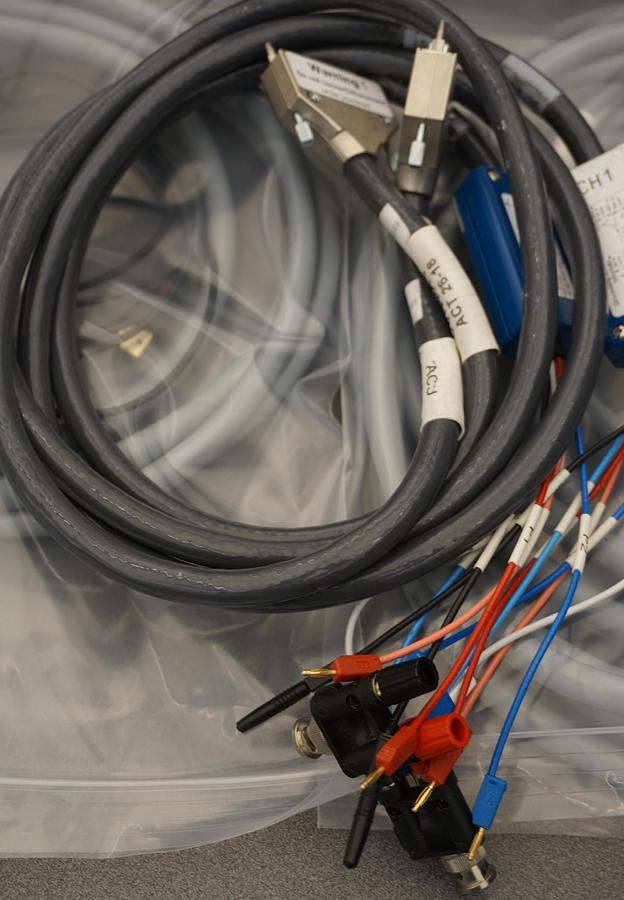

Includes 5 Standard B1 cables

Software not included

Channel specifications

Voltage Ranges Customizable

Adjustable from ± 10 V down to ± 30 mV.

Up to [0; 48] V with HCV-3048± 10 V customizable

Accuracy< ± 1 mV ± 0.03 % of setting< ± 1 mV ± 0.03 % of reading

ResolutionFrom 1 µV (± 60 mV range) to 333 µV (± 10 V range)76 µV (7.6 µV for ± 250 mV, 0.76 µV for ± 25 mV, ZRA only)

CurrentRanges± 1 A to 10 nA (9 ranges),

up to 120 A with four HCV-3048 down to ± 1 pA using Ultra Low Current option

Maximum current± 500 mA

Accuracy< ± 0.1 % of range ± 0.03 % of setting< ± 0.1 % of range ± 0.03 % of readingResolution0.004 % of the range : 760 fA (standard), 76 aA (Ultra Low Current option

EISEIS capability 7 MHz to 10 µHz

Frequency resolution < 10 ppm of the setting

EIS quality indicators Yes
