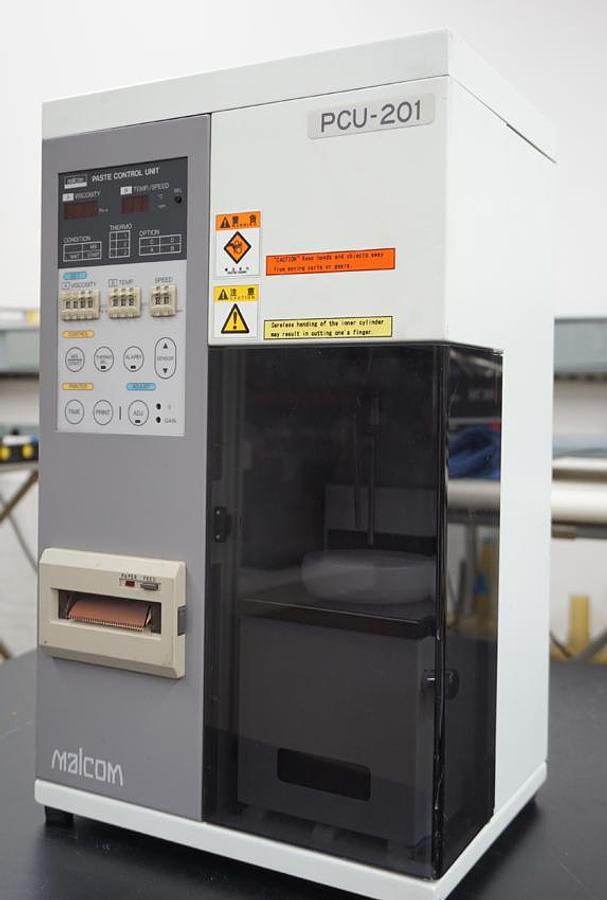

Malcom PCU-201 Spiral Viscometer for solder pastes

The Malcom PCU-201 is a digital spiral viscometer used to measure and evaluate the viscosity and thixotropy of solder paste, thick film pastes, liquid resists, and inks. It is part of the PCU-200 series used as an industry standard for electronic materials and is typically designed for 100cc to 300cc containers.

The device utilizes Malcom's patented spiral-pump sensor to continuously and reproducibly measure non-Newtonian fluids without destroying their structural properties. Key specifications and features include:

• Viscosity Range: Typically ranges from 50 to 10,000 P (Poise).
• Temperature Control: Fully automatic sample temperature control via a built-in temperature controller.
• Analysis: Capable of external computer control and connecting to dedicated software to process flow characteristics and derive regression graphs.
• Manual included
