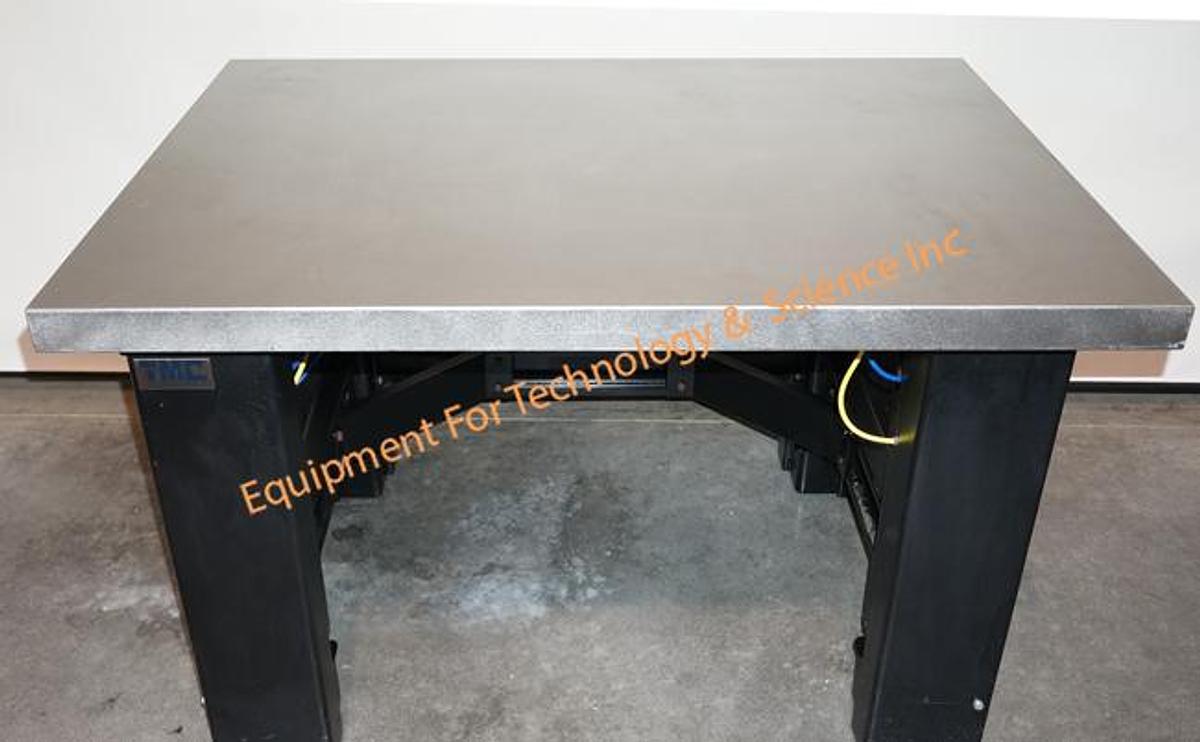

TMC 68-561 47x36 high capacity vibration isolation table for loads over 350lbs
TMC 68-561 47x36 high capacity vibration isolation table for loads over 350lbs
$3,650 (USD)
or
Call (408) 209-9278
Description
stainless laminated top 47"x36"x31"h
set of 4 retractable casters
shipping weight: 1050 lbs plus skid
For table applications that require isolating over 350 lbs (160 kg) of net load, we recommend our High Capacity CleanBench 68-500 Series tables. They are similar in design to our 63-500 Series tables, with higher capacity isolators and a more massive stainless steel top plate.
In addition to high load applications, the High Capacity CleanBench is also recommended for payloads with unusually high centers of gravity and equipment with moving stages. These applications should benefit from the increased stability.
Key Specifications
| Isolator Natural Frequency | High Input: 1.0 Hz vertical; 0.8 Hz horizontal Low Input: 1.7 Hz vertical; 1.5 Hz horizontal |
| Isolator Efficiency @ 5 Hz | 80-90% vertical and horizontal |
| Isolator Efficiency @ 10 Hz | 90-99% vertical and horizontal |
| Recommended Payload | 1,200 lbs. (545 kg) |
| Finish | Medium texture black powder coat frame and stainless steel top |
| Facilities Requirements | 80 psi (5.5 bar) nitrogen or air |
Specifications
| Stock Number | 2508 |
| Sort | 0 |
