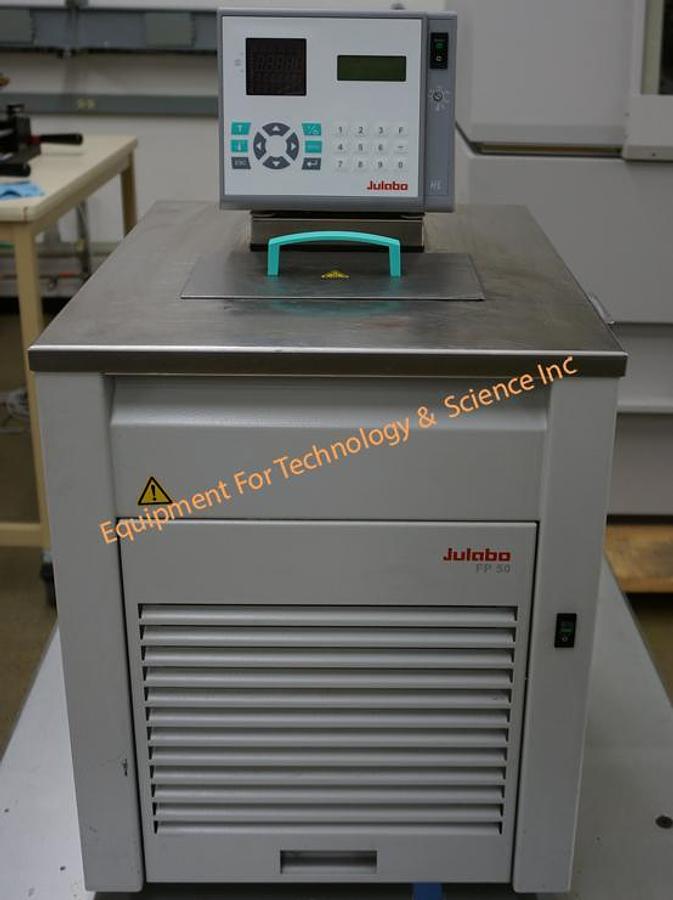

Julabo FP50-HL, -50C to +200C, 207-253v 50Hz

Julabo FP50-HL, -50C to +200C, 207-253v 50Hz

$6,750 (USD)

Description

FP50-HL Refrigerated/Heating Circulator

JULABO Refrigerated & Heating Circulators for heating and cooling are suitable for external temperature tasks and for temperature applications directly in the bath. A model from three different series with different capacities can be selected. Powerful circulating pump systems and high heating and cooling capacities guarantee short heat-up and cool-down times. The inevitable dust accumulation that occurs in refrigeration systems is solved by means of an easily removed venting grill, which allows for easy cleaning. Depending on the model, the units are equipped with handles or castors for an easy transportation. All models have a drain tap on the front allowing the fluid to be drained easily. The compact assembly of each unit enables a space to be saved in the laboratory.

Your advantages

  • VFD COMFORT DISPLAY
  • LCD DIALOG DISPLAY backlit for convenient interactive operation
  • Keypad for setpoints, warning/safety values and menu functions
  • ICC (Intelligent Cascade Control), self-optimizing temperature control
  • TCF Temperature Control Features to optimize the control behaviour
  • ATC3 3-Point-Calibration
  • Pt100 External sensor connection for measurement and control
  • SMART PUMP, electronically adjustable pump stages
  • Druck- und Saugpumpe
  • Early warning system for low liquid level (DBGM 203 06 059.8)
  • Adjustable high temperature cut-out, visible via display
  • RS232/RS485 interface for online communication
  • Optional: Analog interface
  • Integrated programmer for 6 x 60 program steps
  • Connections for solenoid valve and HSP booster pump
  • Active Cooling Control
  • Proportional cooling control
  • Technical Data

    Order No.9312650
    Model seriesHighTech
    CategoryRefrigerated - Heating Circulators
    Working temperature range (°C)-50 ... +200
    Temperature controlICC
    Temperature stability (°C)±0.01
    Setting / display resolution0.01 °C
    Integrated programmer6x60 steps
    Temperature DisplayVFD , LCD
    Heating capacity (kW)2
    Cooling capacity (Medium Ethanol)
    °C200-20-50
    kW0.90.80.50.16
    Pump capacity flow rate (l/min)22-26
    Pump capacity flow pressure (psi)5.8-10.2
    Pump capacity flow suction (psi)2.9-5.8
    Bath opening / bath depth (W x L / D inch)7.1 x 4.7 / 5.9
    Pump connectionsM16x1
    Barbed fittings diameter (inner dia. / mm)8 / 12
    Filling volume (liters)8
    RefrigerantR404A
    External Pt100 sensor connectionintegrated
    Digital interfacesRS232
    RS485
    Optional Profibus
    Ambient temperature5...40 °C
    Dimensions W x L x H (inch)16.5 x 19.3 x 28.3
    Weight (LBS)125
    Classification according to DIN12876-1Classification III (FL)
    Included with each unit2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 female).
    Cooling of compressorAir
    Power requirement V / Hz 207-253v 50hz
