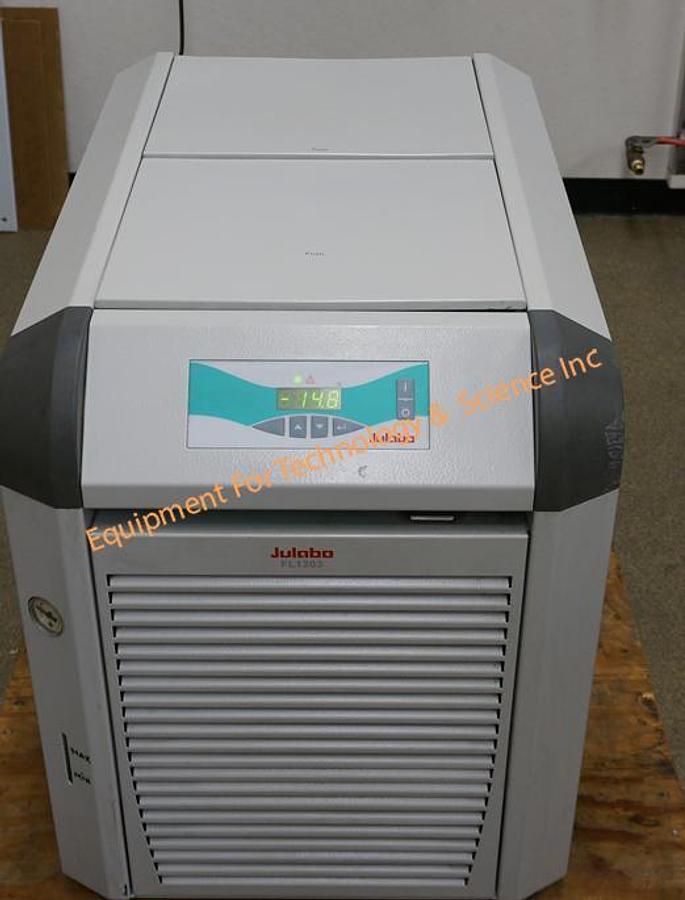

Julabo FL1203 recirculating chiller, -20C to +40C, 207-253v 50Hz

Julabo FL1203 recirculating chiller, -20C to +40C, 207-253v 50Hz
$6,950 (USD)
or
Call (408) 209-9278
Description
FL1203 Recirculating CoolerThe FL series offers a new generation of chillers for routine cooling applications within the laboratory and industry.
Ergonomic design and easy operation Splash-proof keypad with integrated mains switch Large, bright LED display Reliable Microprocessor PID temperature control Filling level indicator Powerful immersion pumps, suitable for continuous operation Permissible temperature in return line +80°C Easy filling from the top with hinged protective lid Low liquid level protection with optical and audible alarm signal Integrated stainless steel bath tanks Removable venting grid for cleaning of the condenser Front drain No side vents RS232 interface for PC-connection IP class according to IEC 60529: 21 Alarm output, potential-free change-over contact (max. 30 VA)
The FL series offers a new generation of chillers for routine cooling applications within the laboratory and industry.
The temperature stability of the PID control is ±0.5°C.
All units can easily be cleaned and are provided with a splash water proof keypad with LED temperature indication.
On the front of the units there is an RS232 interface as well as an alarm shutdown.
The filling port is easily accessible placed on the top under a lift-up cover.
Another hinged tray serves as a file for the operating manual or other documents concerning the installation.
The removable venting grid allows an easy cleaning of the condenser, the drain tap is easily accessible behind the grid.
All models include an easily visible level indication.
Another advantage is the venting slots are on the front and rear and therefore the units can be placed directly one beside the other (space saving).
Your advantages
Technical Data
Order No. | 9663012 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Model series | FL Series | ||||||||||
Category | Recirculating Coolers | ||||||||||
Working temperature range (°C) | -20 ... +40 | ||||||||||
Temperature stability (°C) | ±0.5 | ||||||||||
Setting / display resolution | 0.1 °C | ||||||||||
Temperature Display | LED | ||||||||||
Cooling capacity (Medium Ethanol) |
| ||||||||||
Pump capacity flow rate (l/min) | 40 | ||||||||||
Pump capacity flow pressure (psi) | 7.25...43.51 | ||||||||||
Pump connections | G3/4" | ||||||||||
Barbed fittings diameter (inner dia. / mm) | 3/4" | ||||||||||
Filling volume (liters) | 12 ... 17 | ||||||||||
Refrigerant | R404A | ||||||||||
Digital interfaces | RS232 Optional Profibus | ||||||||||
Ambient temperature | 5...40 °C | ||||||||||
Dimensions W x L x H (inch) | 19.7 x 29.9 x 25.2 | ||||||||||
Weight (LBS) | 161 | ||||||||||
Description | Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids | ||||||||||
Included with each unit | 2 barbed fittings for tubing 3/4" inner dia. (pump connections G3/4" male) | ||||||||||
Cooling of compressor | Air | ||||||||||
Power requirement V / Hz / A | 207-253v 50hz |
