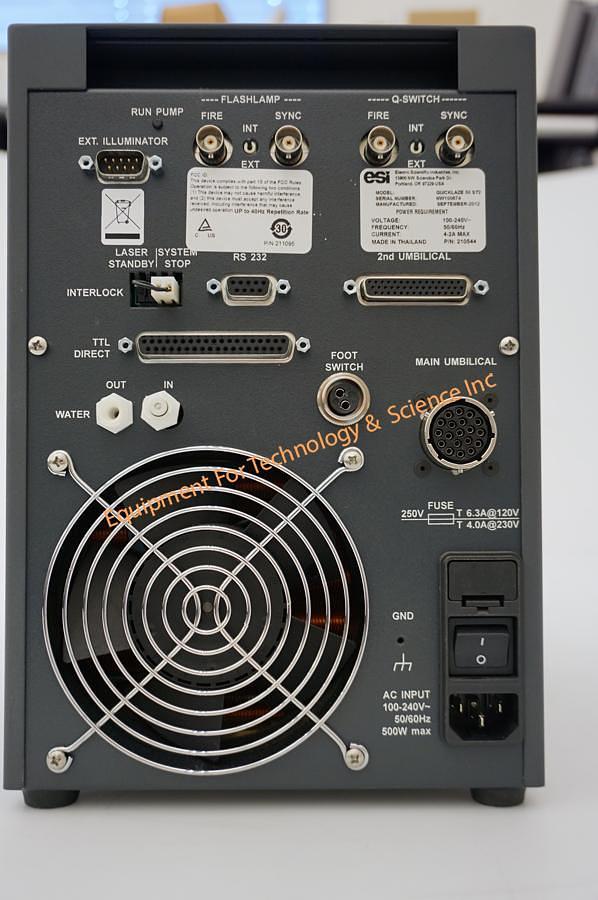

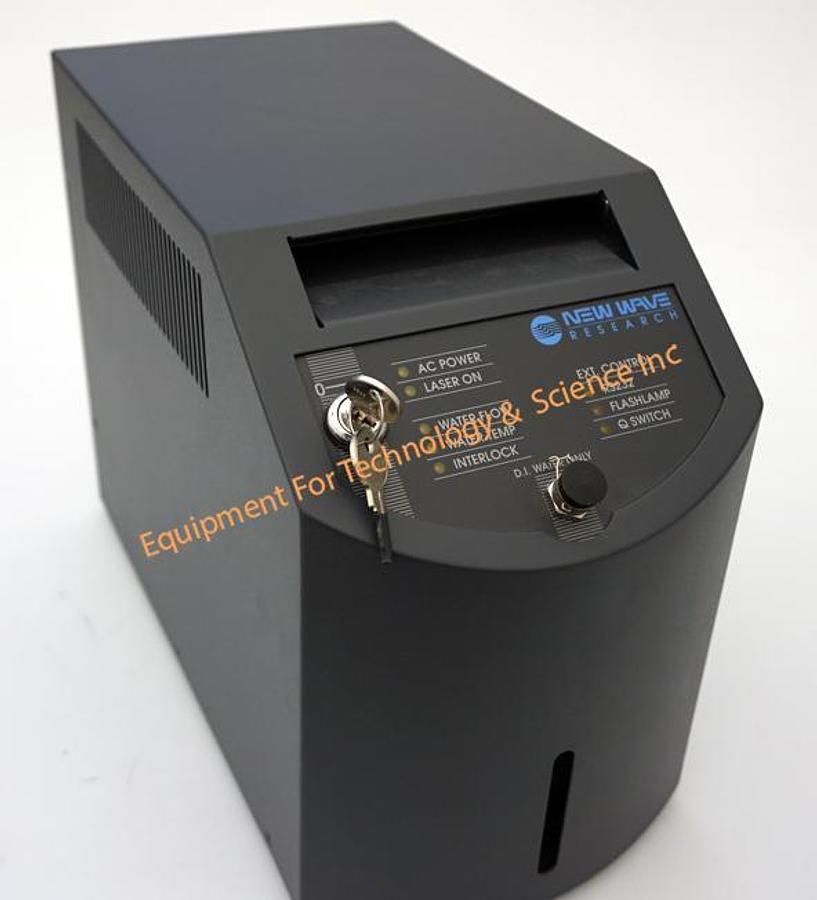

ESI New Wave Quiklaze 50ST2 532/355nm (2012)
ESI New Wave Quiklaze 50ST2 532/355nm (2012)
$29,500 (USD)
Description
532nm (green) at 0.5mJ
355nm (NUV) at 0.5mJ
single shot to 50hz continuous
motorized 2.5mm x 2.5mm xy aperture
Also available with Mitutoyo FS70/FS70L (UV capable) please inquire for cost
OVERVIEW
QuikLaze is an excellent tool for increased productivity in LCD repair, semiconductor failure analysis, and light micromachining applications. QuikLaze can dramatically improve the productivity of IC design engineers and failure analysts by providing a valuable tool for quickly removing passivation materials and cutting circuit lines. The system can vastly improve yield for LCD production by quickly repairing defects and removing shorts. The QuikLaze laser system features New Wave's latest. Advanced Beam Delivery System (ABDS). The ABDS enables precise cuts on a microscopic level for each of the three wave-length regions (infrared, visible or ultraviolet). The system also provides precise power control of the wavelength selectable beam without sacrificing the beam characteristics.
APPLICATIONS
QuikLaze 50ST2 is a tool designed specifically for quick, easy removal of a variety of materials.Multiple, user selectable wavelengths provide the capability to selectively remove certain materials while leaving others unaffected. A few examples of procedures that can be efficiently performed include:
Remove ITO shorts cut metal traces on LCD panels
Remove polyimide prior to FIB edits.
KEY FEATURES
Standard Configuration includes

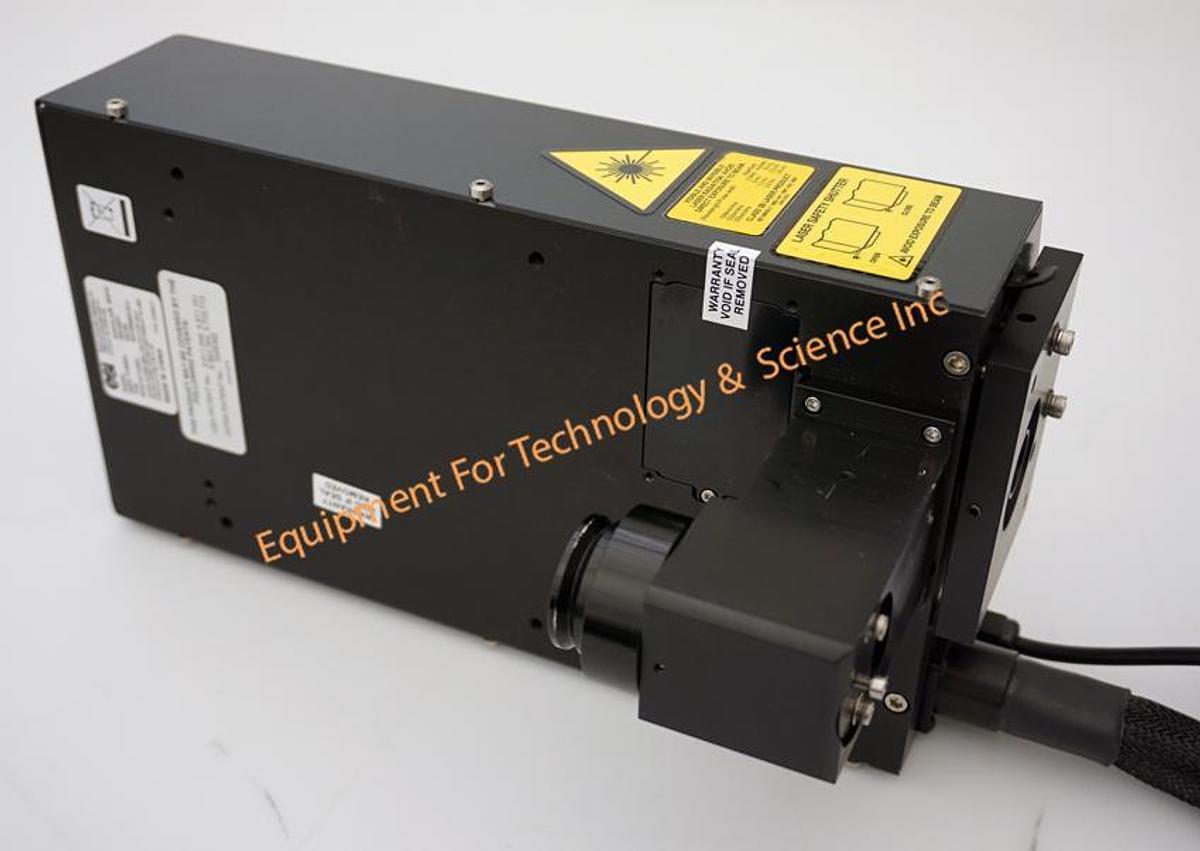

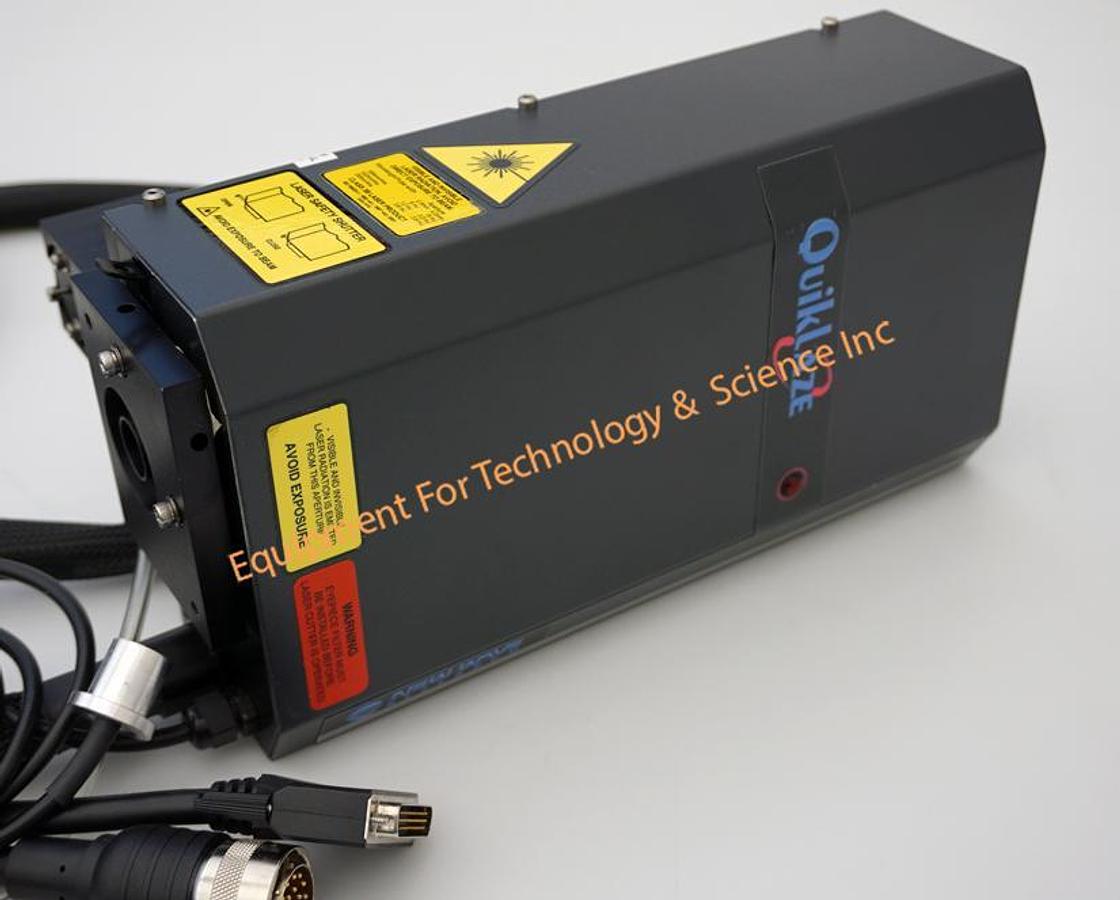

Laser head (vertical mount) with 2.5mm x 2.5mm aperture.
XY Shutter (Std. Resolution).
Close-loop energy control 2.
Remote Control Panel.

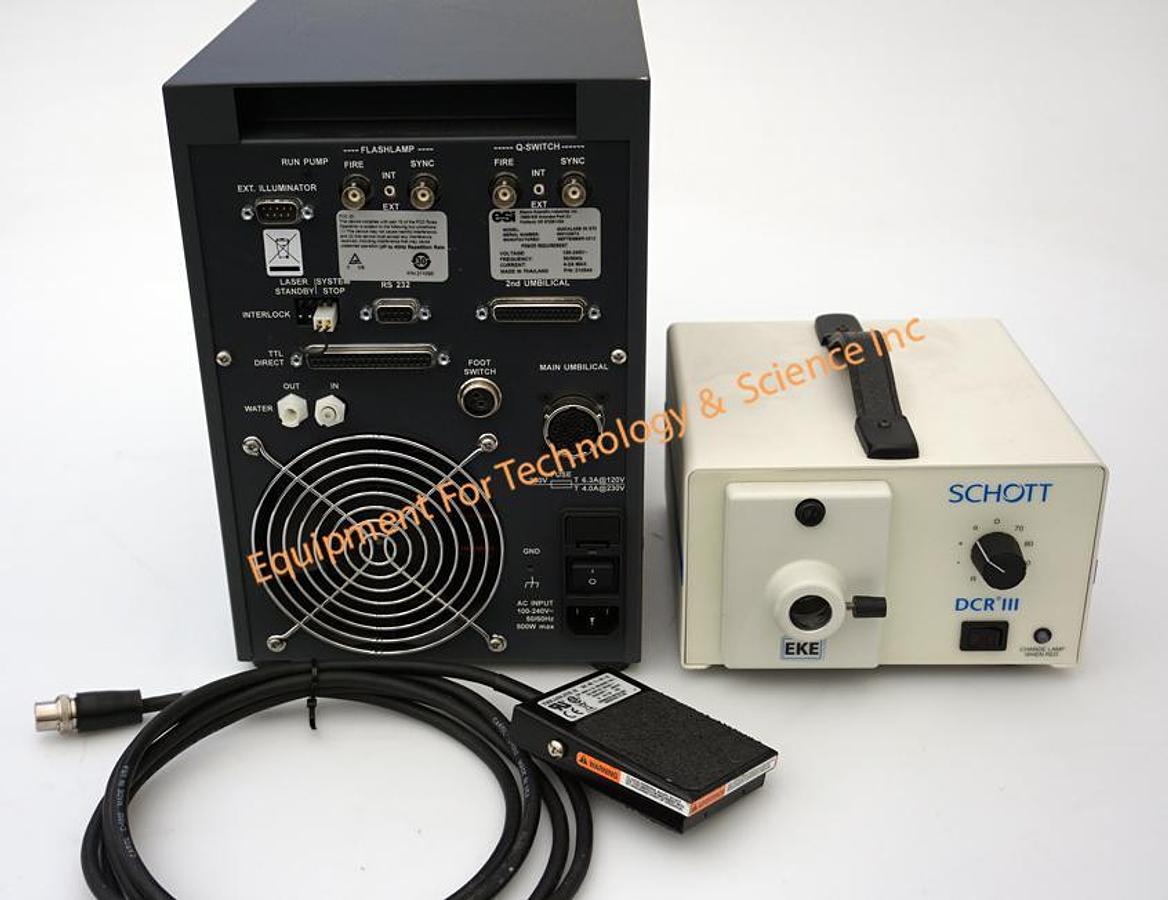

Foot switch.
Video spot marker.
See PDF link below for datasheet
Specifications
| Stock Number | 3355 |
| Sort | 0 |
