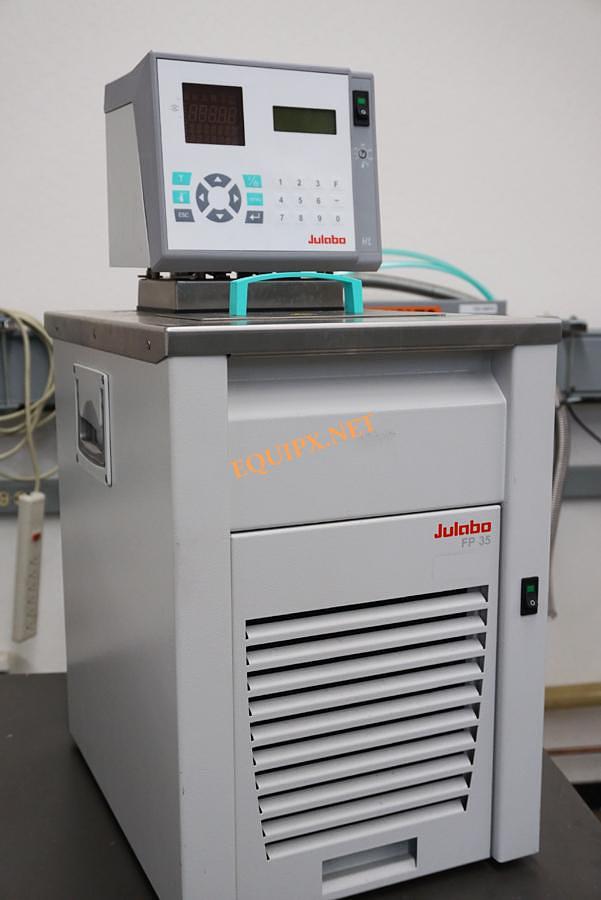

Julabo FP35 refrigerated circulator -35C to +200C

JULABO FP35-HL Refrigerated/Heating Circulator FP35-HL

Product no.:100009047

JULABO Refrigeration Circulator F32-MA, for heating and cooling.

The device is suitable for external tempering tasks or for tempering directly in the thermostatic bath.

A high-performance circulating pump system and high heating / cooling capacities guarantee short heating and cooling times.

Easy removal of unavoidable dust through removable ventilation grille.

Depending on the model with carrying handles or rollers for easy transport.

With drainage tap on the front for easy emptying of the bath fluid.

The compact design allows a space-saving installation.

Advantages: MULTI-DISPLAY (LED) for actual / set value, warning / safety functions and pump performance level, membrane keyboard for setting setpoints, warning / safety values and menu functions,

PID2 temperature control with disturbance compensation, ATC3 3-point calibration, early warning system for low level ( DBGM 203 06 059.8), adjustable overtemperature protection adjustable via display,

RS232 interface for online communication, SMART PUMP electronically adjustable pump output levels, Active Cooling Control.

Technical specifications:

Working temperature range -35 ° to 200 ° C
Temp. Constancy ± 0.02 ° C
Heating power 2 KW Cooling capacity at 20 ° C-0.45 kW / 0 ° C-0.39 kW / -20 ° C-0.15 kW / -30 ° C-0.05 kW
Refrigerant R134a
Flow rate: Flow rate 11-16 l / min
Pressure 450 mbar
Bath opening / depth 18 x 12/15 cm
Max. Filling volume 8 l
Dimensions WxDxH 31 x 42 x 64
Weight 37 kg
