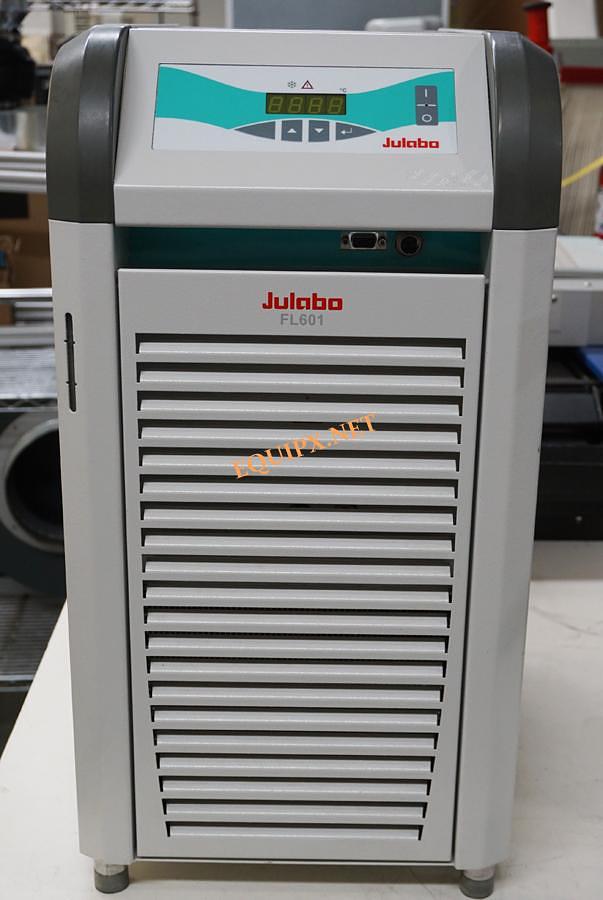

Julabo FL601
Save space with this recirculating chiller capable of being installed under a lab bench. Additionally, this chiller features a fill level indicator and overflow port on the back for effortless filling and draining.
Features
Ergonomic design and easy operationSplash-proof keypadLarge, bright LED displayPowerful immersion pumps, suitable for continuous operationPermissible temperature in return line 80°CEasy filling and drain tap easily accessibleLow liquid level protection with optical and audible alarm signalIntegrated stainless steel bath tanksRemovable ventilation gridFront drainNo side vents, instruments can be placed right next to other equipmentRS232 interface for PC connectionIP class according to IEC 60529: 21Alarm output, potential-free change-over contact (maximum 30 V A)Quality: Highest standards of quality for a long product lifePrecise: PID temperature control with set control parameters, temperature stability ±0.02 to ±0.2°CGreen technology: Development consistently applied environmentally friendly materials and technologiesJulabo FL601 Specifications
| Voltage | 115 V, 60 Hz (Nema N5-15 Plug) |
| Cooling of Compressor | 1-stage air |
| Temperature | Working range: -20 to 40°C
Stability: ±0.5°C
Ambient: 5 to 40°C
Return flow maximum: 80°C
Display resolution: 0.1°C
Control: PID1
Display: LED
Setting: Keypad |
| Cooling Capacity (Water Glycol) | 20°C, 0.6 kW
10°C, 0.5 kW
0°C, 0.4 kW
-10°C, 0.32 kW
-20°C, 0.1 kW |
| Refrigerant | R449A |
| Global Warming Potential for R449A | 1397 |
| Carbon Dioxide Equivalent | 0.363 t |
| Pump | Type: Centrifugal pump
Connections: M16x1 male |
| Pump Capacity | Flow rate: 23 l/min
Flow pressure: 14.5 bar |
| Bath Tank | Stainless steel |
| Sound Pressure Level | 55 dbA |
| Classification | Classification I (NFL) |
| IP Code | IP 21 |
| Filling Volume | 185.97 to 270.51 oz (5.5 to 8 l) |
| Barbed Fittings (Inner Diameter) | 8/12 mm |
| Dimensions | 19.7 x 12.6 x 24.4" (50 x 32 x 61.9 cm) |
| Weight | 105.8 lbs (47.99 kg) |
Features
Ergonomic design and easy operationSplash-proof keypadLarge, bright LED displayPowerful immersion pumps, suitable for continuous operationPermissible temperature in return line 80°CEasy filling and drain tap easily accessibleLow liquid level protection with optical and audible alarm signalIntegrated stainless steel bath tanksRemovable ventilation gridFront drainNo side vents, instruments can be placed right next to other equipmentRS232 interface for PC connectionIP class according to IEC 60529: 21Alarm output, potential-free change-over contact (maximum 30 V A)Quality: Highest standards of quality for a long product lifePrecise: PID temperature control with set control parameters, temperature stability ±0.02 to ±0.2°CGreen technology: Development consistently applied environmentally friendly materials and technologies
