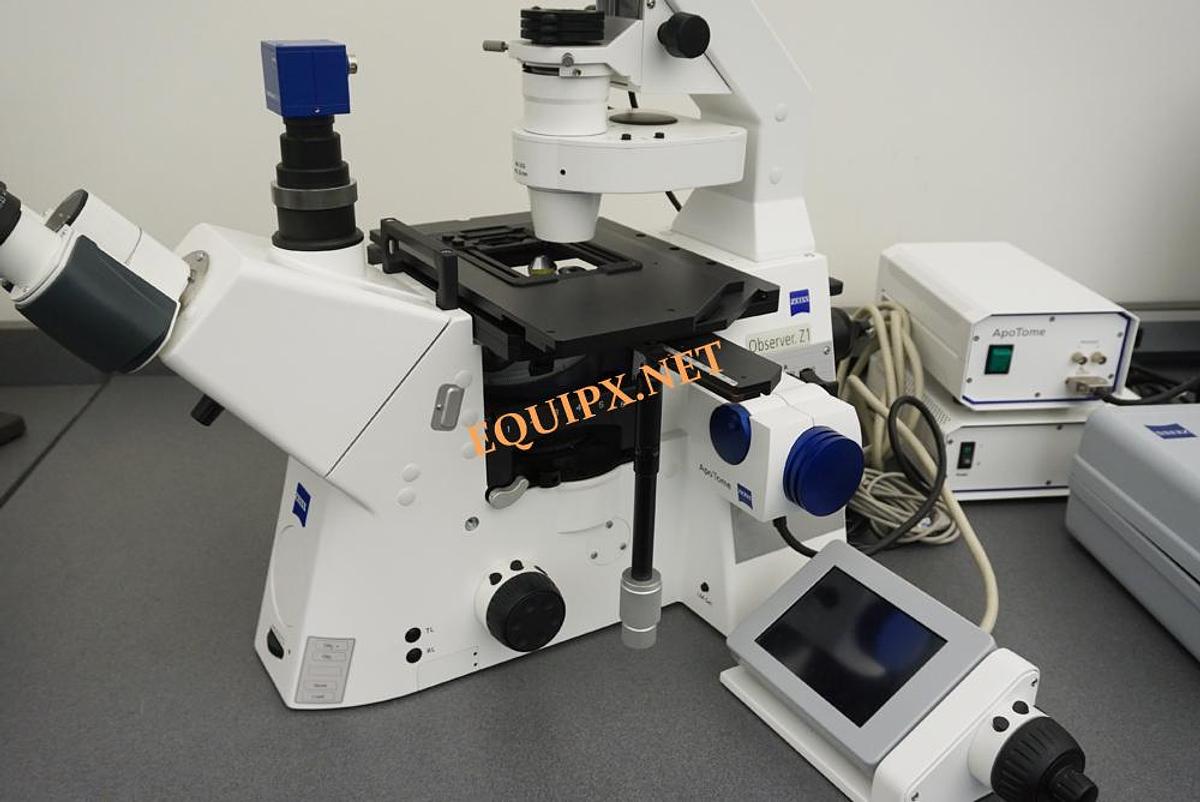

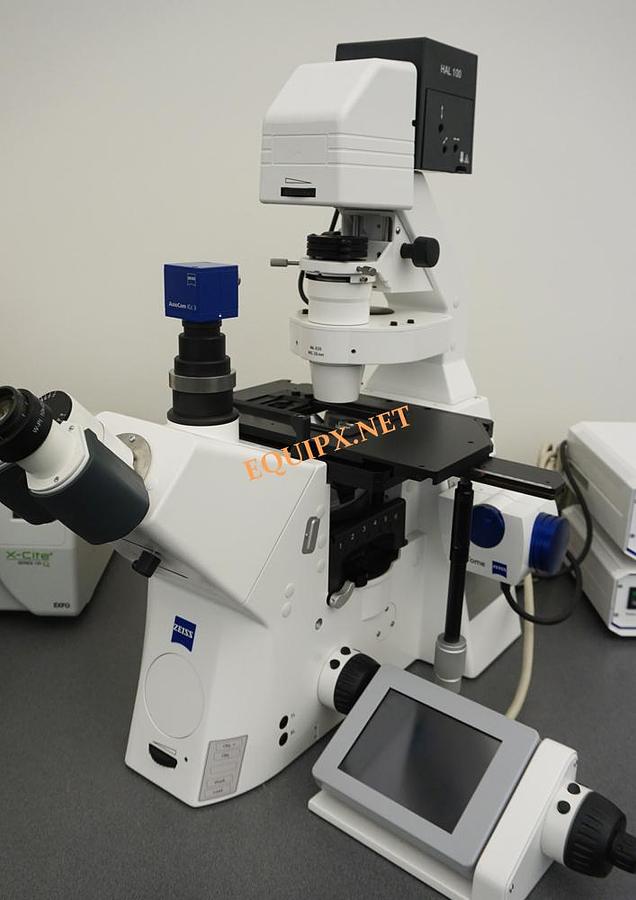

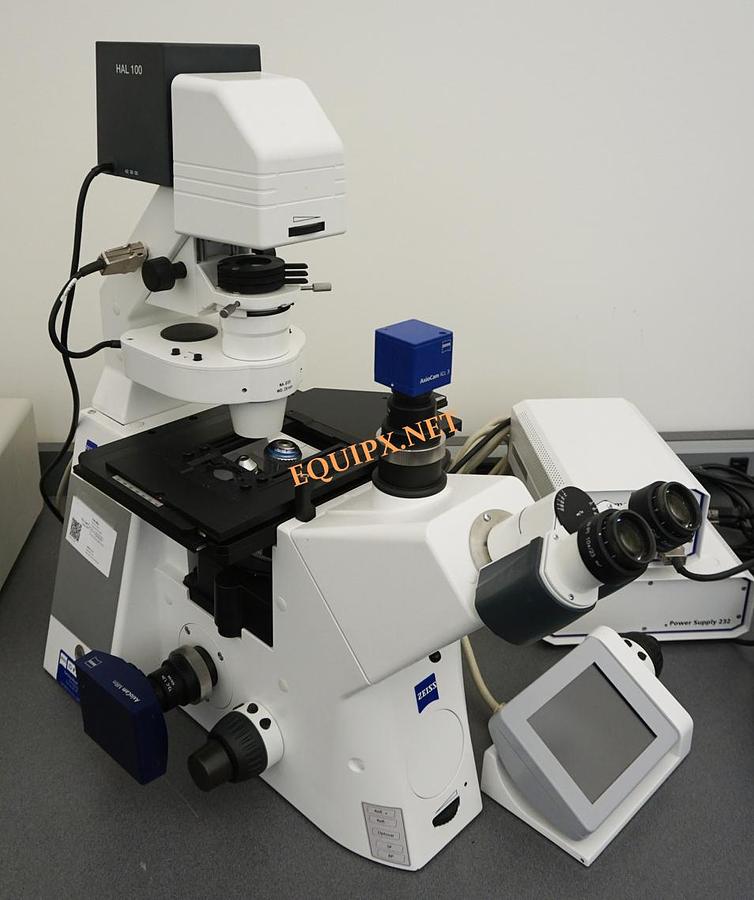

Zeiss AXIO Observer.Z1 inverted flourescence microscope with Apotome Structured Illumination for near Confocal imaging
Zeiss AXIO Observer.Z1 inverted flourescence microscope with Apotome Structured Illumination for near Confocal imaging
$16,950 (USD)
or
Call (408) 209-9278
Description
Motorized 6 position nosepiece with the following objectives:
LCi Plan NEOFLUOR 63x/1.3 DIC Imm Korr /0.19 15
LD Plan NEOFLUOR 40x/0.6 Ph2 Korr /0 1.5
EC Plan NEOFLUOR 40x/0.75 /0.17
A Plan 10x/0.25 Ph1
A Plan 5x/0.12
W-PI 10x/23 eyepieces
NA 0.55 WD: 26mm condenser turret
Multiple filters
XY extended knob stage
Z Axis controls
X-Cite EXPO series 120Q Fluorescence illuminator
Upper HAL 100 light source with 232 power supply
Axiocam MRm CCD camera
Axiocam ICc 3 high resolution camera
Tabletop vibration isolation platform

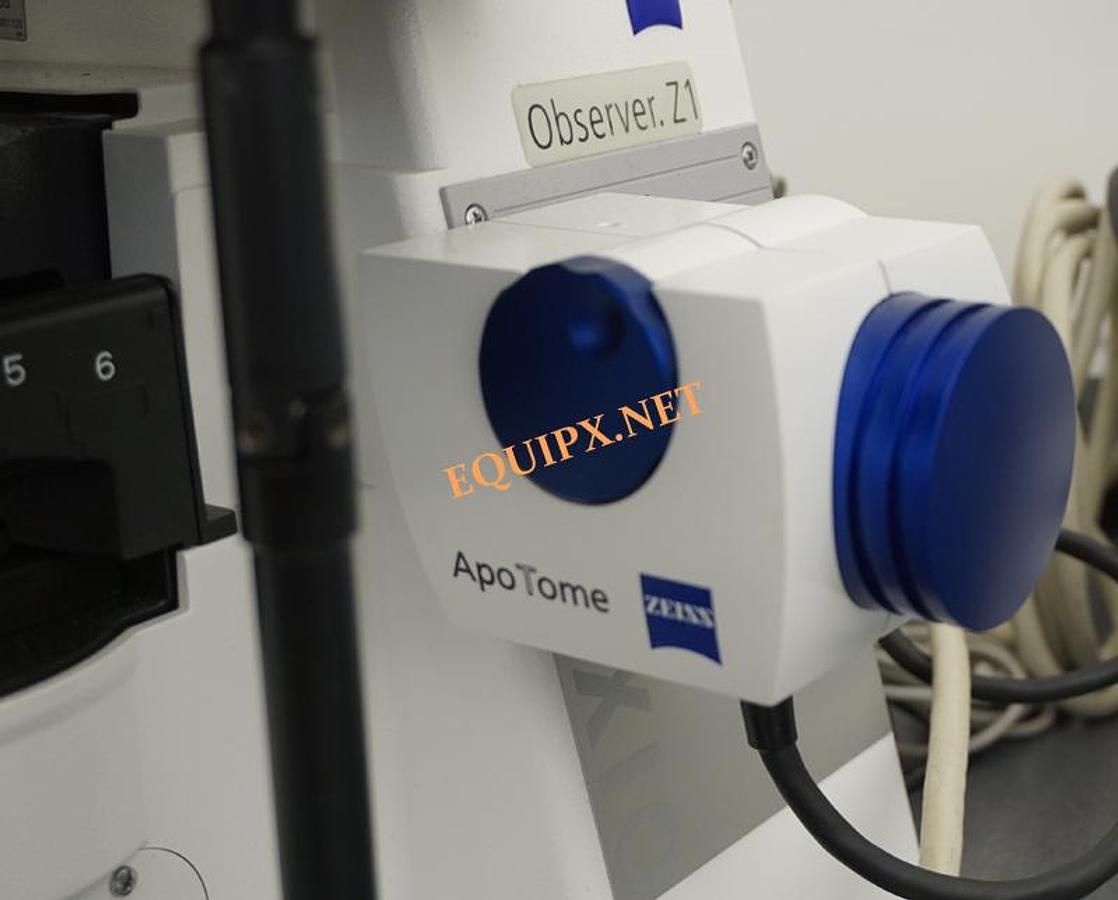

ApoTome widefield fluorescence structured illuminator:
LCi Plan NEOFLUOR 63x/1.3 DIC Imm Korr /0.19 15
LD Plan NEOFLUOR 40x/0.6 Ph2 Korr /0 1.5
EC Plan NEOFLUOR 40x/0.75 /0.17
A Plan 10x/0.25 Ph1
A Plan 5x/0.12
W-PI 10x/23 eyepieces
NA 0.55 WD: 26mm condenser turret
Multiple filters
XY extended knob stage
Z Axis controls
X-Cite EXPO series 120Q Fluorescence illuminator
Upper HAL 100 light source with 232 power supply
Axiocam MRm CCD camera
Axiocam ICc 3 high resolution camera
Tabletop vibration isolation platform
ApoTome widefield fluorescence structured illuminator:
Apo Tome utilizes structured illumination microscopy (SIM) through the ApoTome attachment to achieve optical sectioning, enhanced contrast and resolution in fluorescence images. This system is known for its modular design, allowing for flexible configurations and integration of various imaging techniques, including widefield, confocal, and structured illumination. ApoTome Technology:
The ApoTome attachment projects a grid pattern onto the sample, which is then used to computationally reconstruct sharper, higher-contrast images by removing out-of-focus light.
The ApoTome attachment projects a grid pattern onto the sample, which is then used to computationally reconstruct sharper, higher-contrast images by removing out-of-focus light.
Specifications
| Stock Number | 4557 |
| Sort | 0 |
