PRODUCT ADVANTAGES

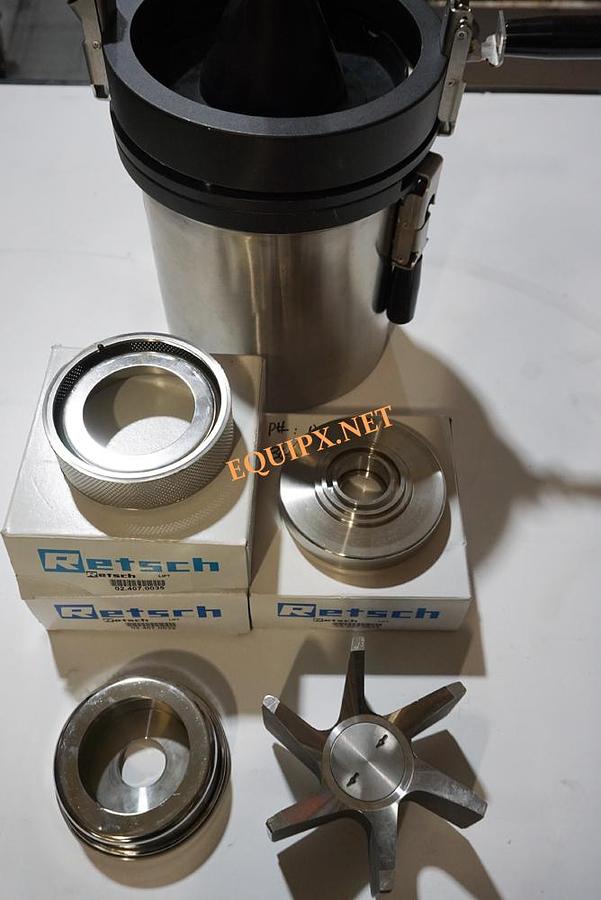

wide range of accessories including various feeding systems, rotors and sieves

defined final fineness due to bottom sieves with aperture sizes from 0.08 - 10 mm

optional grinding inserts 180° for grinding of hard-brittle materials by additional impact

gravity outlet with 5l or 30 L collecting vessel for batchwise collection of larger sample quantities

optionally available cyclone unit with 0.25 - 0.5 - 1 - 2 - 5 or 30 liters collecting vessel

optional distance rotor to reduce frictional heat

adjustable speed for different applications

removable hopper for easy cleaning

easy cleaning thanks to exchangeable push-fit grinding insert, rotor and cassette

central locking device

grinding chamber, feed hopper and material inlet and outlet made of stainless steel

electric engine brake

FEATURES

Applications	size reduction, deagglomeration
Field of application	agriculture, chemistry / plastics, construction materials, environment / recycling, food, geology / metallurgy, medicine / pharmaceuticals
Feed material	soft, medium-hard
Material feed size*	< 25 mm
Final fineness*	< 50 µm
Speed at 50 Hz (60 Hz)	3,000 - 10,000 min-1 (in steps of 500 min-1)
Rotor peripheral speed	22 ..72 m/s
Types of rotors	standard / distance
Material of grinding tools	rotor and sieves of stainless steel
Sieve sizes	trapezoid holes 0.08 / 0.12 / 0.20 / 0.25 / 0.35 / 0.50 / 0.75 / 1.00 / 1.25 / 1.50 / 2.00 mm round holes 3.00 / 4.00 / 10.00 mm
Hinged hopper	removeable hopper
Dust extraction unit	optional cyclone
Collector capacity	5 l / optional: 30 l
Drive	3-phase motor
Electrical supply data	200-240 V, 50/60 Hz
Power connection	1-phase
Engine brake	yes, electric
Protection code	IP 41
Power consumption	2.5 kW
W x H x D closed	600 x 1200 x 700 mm (with base frame)
Net weight	~ 60 kg (with base frame)
Standards	CE

Stock Number	4568
