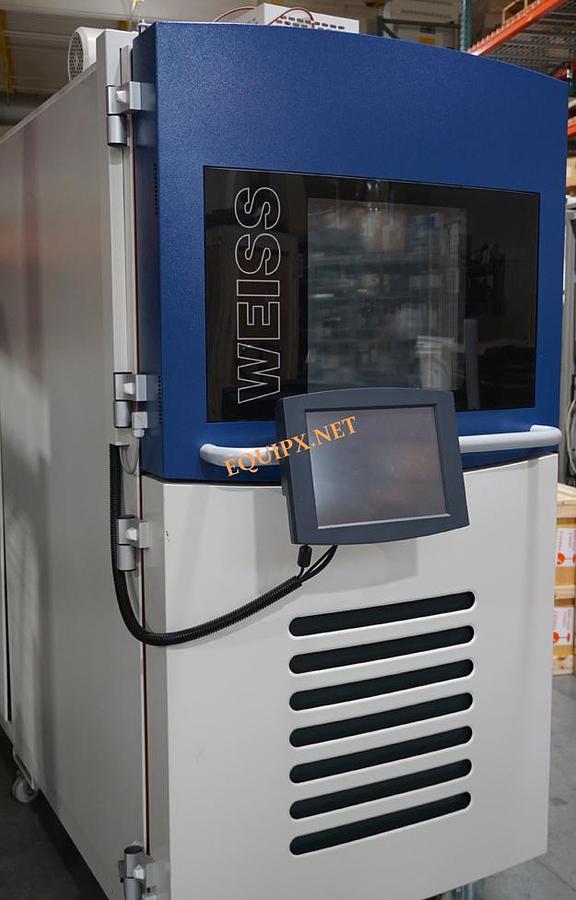

Weiss TS120 thermal shock chamber 4.2 cuft test space, Cold chamber -80C to +70 hot chamber +50C to +220C
Weiss TS120 thermal shock chamber 4.2 cuft test space, Cold chamber -80C to +70 hot chamber +50C to +220C
$64,900 (USD)
or
Call (408) 209-9278
Description

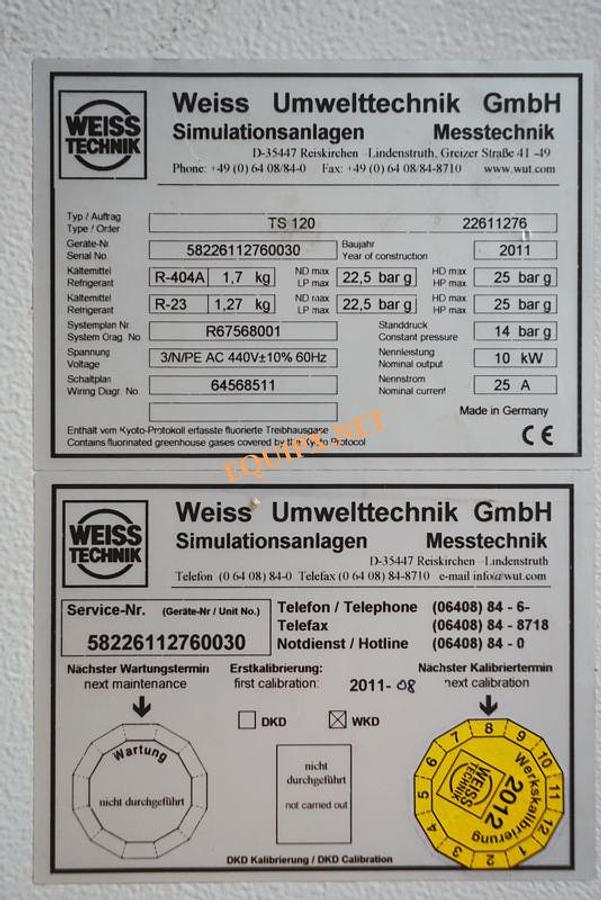

serial no. 58226112760030
Power requirements: 3/N/PE AC 440V+-10% 60hz
Refrigerant R404A/R-23
Test space 4.2 cu. ft. / 120 l Vertical order of the chamber for safe and quick test performance Regular temperature distribution in test space via a high recirculating rate with optimum air flow Hot chamber temperatures of +50 °C to +220 °C Cold chamber temperatures of –80 °C to +70 °C Alternating time between the chambers <10 sec="" span=""> More than 1,000 cycles are possible without defrosting via a standard integrated volume compensation system for continuously operation Low sound-pressure level, only 58 dB(A) Design maintenance friendly positioning of the machine components Entry port Ø 80 mm Loading capacity of the lift 50 kg 8″ TFT-color touch screen display Control pad Ready to plug-in Window in hot zone Ultra-lightweight shelf incl. rails Lift in loading position locked Entry port Ø 80 mm Volume compensation system for long-term operation Water-cooled refrigeration unit Hermetically sealed CFC-free refrigeration circuits 8″ TFT-color touch screen display CONTROLPAD* for indication of actual values 32 bit control and monitoring system S!MPAC* Software S!MCONTROL* for comfortable operation Interfaces RS 232/USB/Ethernet Digital I/O, potential-free, 24 V, 4 freely available inputs/outputs Independent adjustable temperature limiter (tmin/tmax ) for hot and cold zone Potential-free contact for switching-off of test specimens Adjustable software temperature limiter min/max Operating hour counter Temperature control via sensor in cradle or in hot or cold zone Defrosting cycles automatic and programmable Dwell time start programmable Standards already programmed Mobile version Calibration of two temperature values Powder-coated housing made of galvanized steel sheet External Dimensions 39"w x92.5"d x78.2"h Basket dimensions 18.5w x 25.6"d x 16.1"h Heating rate of hot chamber: 14C/min Cooling rate of cold chamber: 6.3C/min Water cooled refrigeration Requires 15KW chiller to cool compressors Test space, lift and insert shelves (insert baskets) made of corrosion resistant stainless steel
Power requirements: 3/N/PE AC 440V+-10% 60hz
Refrigerant R404A/R-23
Specifications
| Stock Number | 4697 |
| Sort | 0 |
