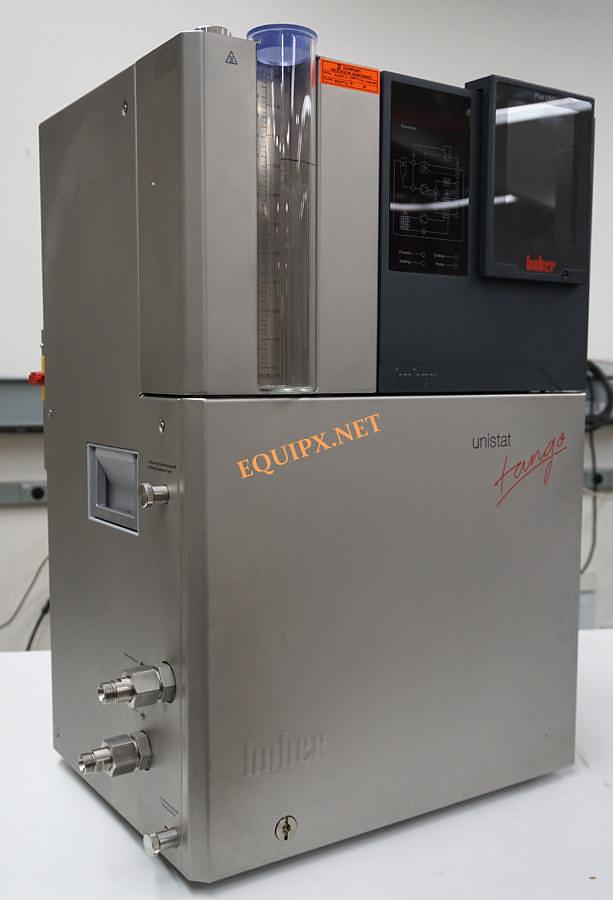

Huber Unistat Tango with Pilot One controller -45C to 250C

Call (408) 209-9278

Description

Huber Unistat Tango features

Precise and reproducible temperature control results

Fastest heating and cooling rates

Wide temperature ranges with no fluid change

Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation

Adaptive temperature control, self-optimising

Efficient circulation pump

2 x USB (Host and Device), Ethernet and RS232 interfaces

Efficient operation saves working time and operating costs

Proven functionality for the process industry

E-grade "Professional" included

Natural refrigerant

1 meter insulated hoses included

General information & temperature controller

Temperature range

-45...250C

Temperature stability

0,01C

Temperature control

TAC, self-optimizing (True Adaptive Control)

Display resolution

0,01C

Alarm message

optical, acoustical

Controller

Pilot ONE (E-grade"Professional")

Safety class

III / FL

Protection class

IP20

Dimensions(W x D x H)

426 x 327 x 631mm

Weight

56kg

Heating / cooling capacity

Heating capacity

3kW

Cooling capacity

250	200	100	0	-20	-40	C
0,7	0,7	0,7	0,7	0,4	0,06	kW

Cooling machine

air-cooled

Refrigerant

R1270 (0,15 kg)

Circulation pump

Pressure pump max.

55 l/min;0,9 bar

Pump connection

M24x1,5 AG male

Permissibleviscosity

50mm/s

Connections

Pt100 connection

Pt100

Analogueinput

via optional Com.G@te

Analogueoutput

via optional Com.G@te

Digital interface

RS232, Ethernet, USB Device, USB Host

Operating data

Permissible ambient temp.

5...40C

Sound pressure level

62dB(A)

Filling volume min.

1,5Litres

Volume of expansion

2,8Litres

Power supply

230V 1~ 50Hz

Current max.

16A

Fusing

16 A

Specifications

Stock Number	4694
