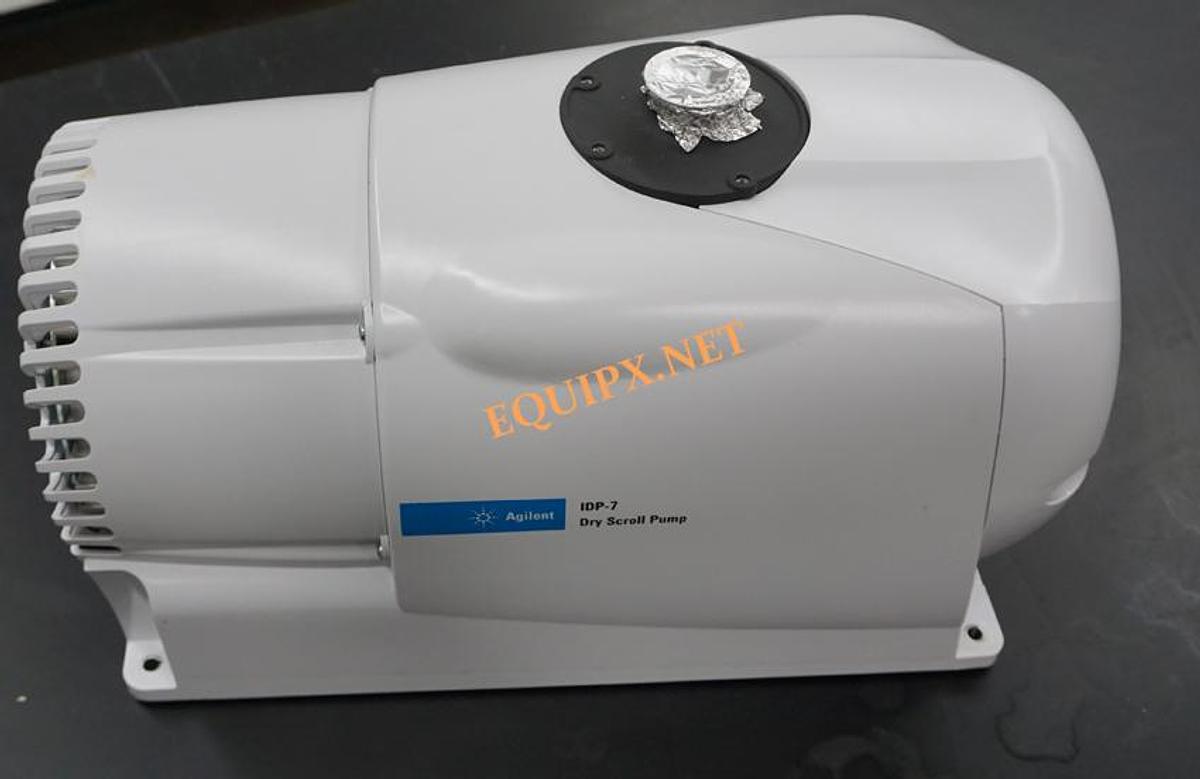

Agilent IDP7 scroll pump 5.4 CFM Refurbished with new tip seals

Agilent IDP7 scroll pump 5.4 CFM Refurbished with new tip seals

or
Call (408) 209-9278

Description

Base pressure (50 Hz) - Torr & mbar
  • 4.0 x 10-2 mbar
  • 3.0 x 10-2 Torr
    • Base pressure (60 Hz) - Torr & mbar
  • 2.6 x 10-2 mbar
  • 2.0 x 10-2 Torr
    • Dimensions (WxHxL)
  • 10.24 in x 10 in x 16.54 in
    • Exhaust Connection
  • NW16
    • Height
  • 10 in
    • Inlet Connection
  • NW25
    • Input Voltage
  • 100-120
  • 200-240 VAC
    • Length
  • 16.54 in
    • Maximum Inlet Pressure
  • 1.0 atm (0 psig)
    • Noise Level
  • 52 dB(A)
    • Operating Environment Temperature
  • 5 to 40 °C
  • 41 to 104 °F
    • Pumping Speed (50 Hz)
  • 7.2 m3/h
  • 120 L/min
  • 4.2 CFM
    • Pumping Speed (60 Hz)
  • 9.1 m3/hr
  • 152 L/min
  • 5.4 CFM
    • Shipping Weight
  • 28.1 kg
  • 62 lbs
    • Weight (pump only)
  • 24.5 kg
  • 54 lbs
    • Width
  • 10.24 in
    • Show All

    Specifications

    Stock Number4704
