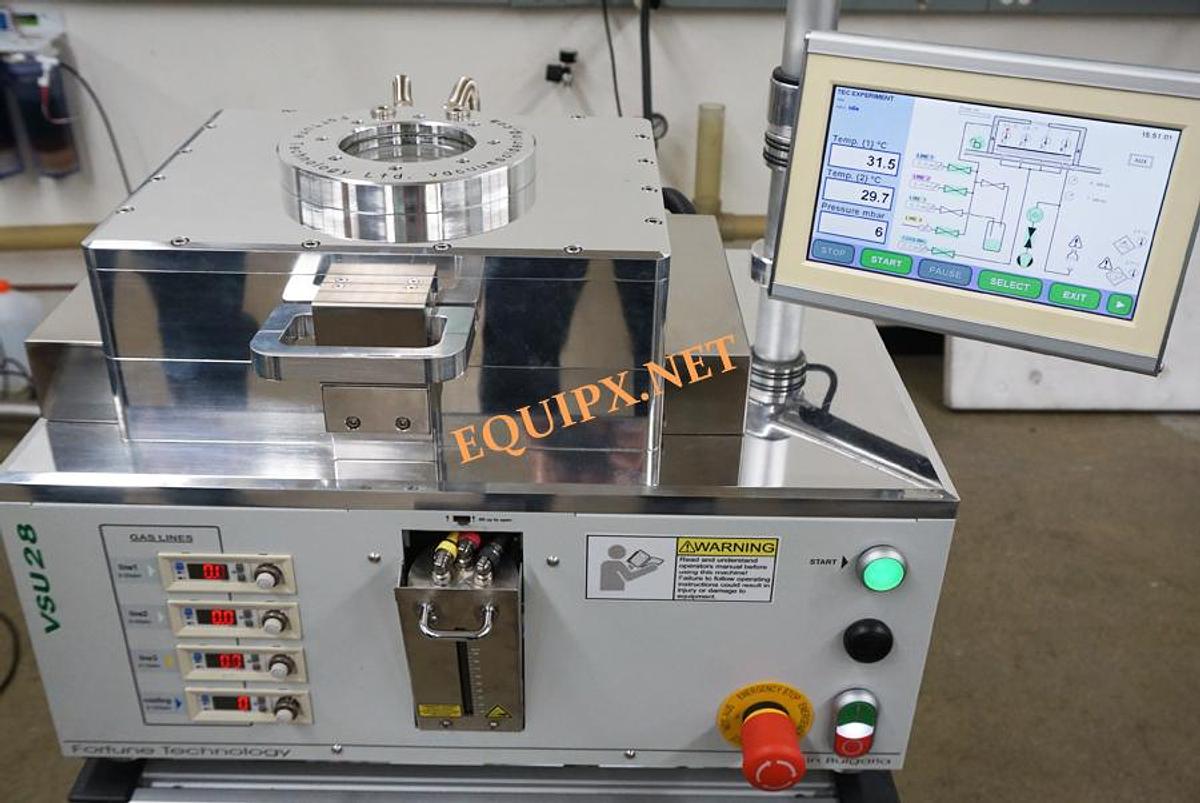

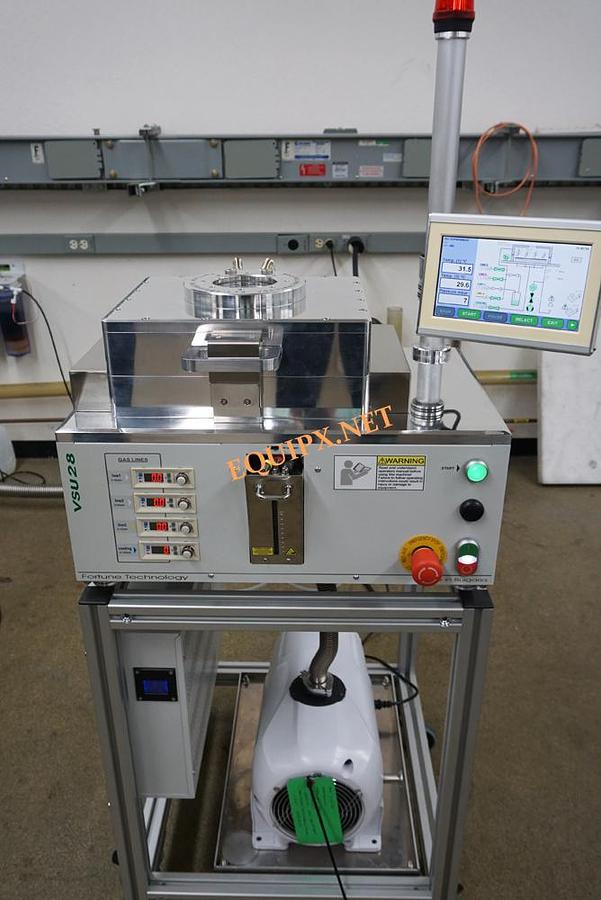

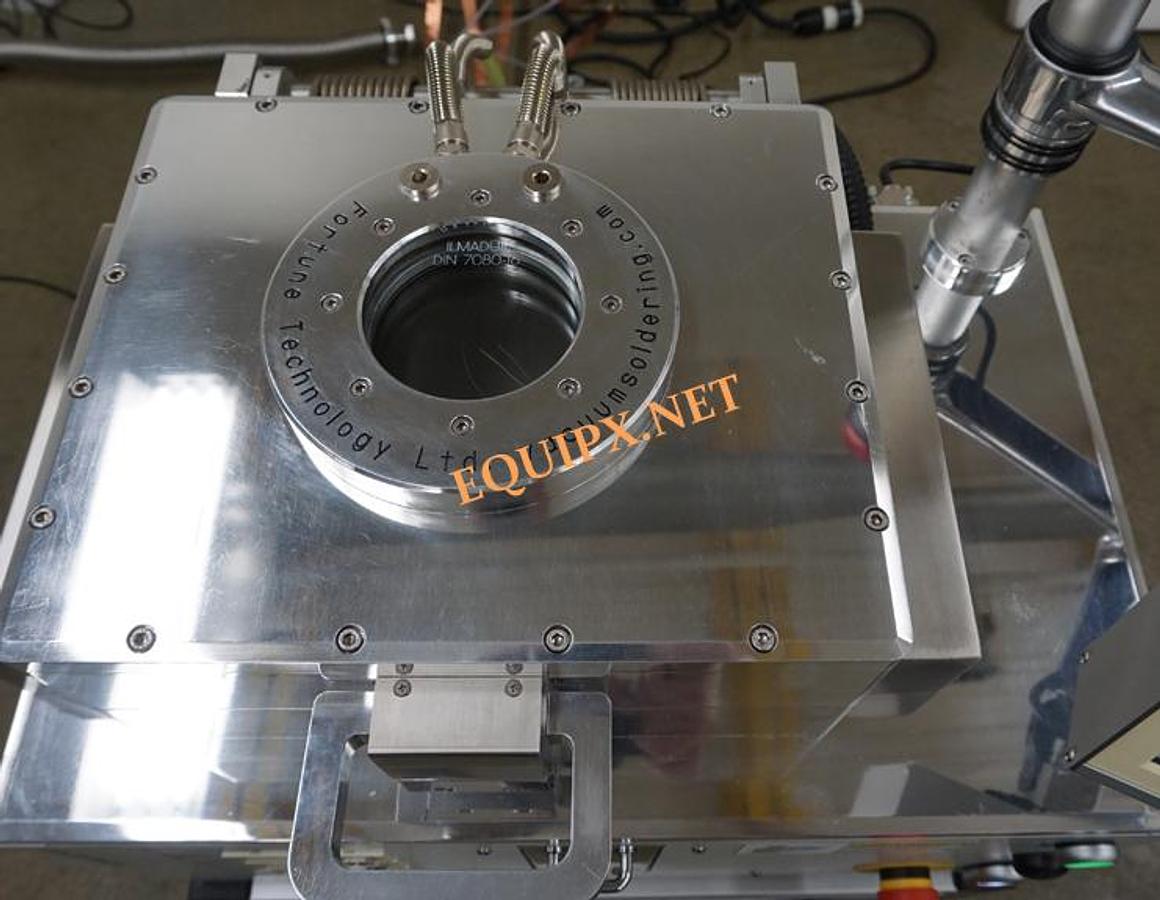

Invacu (Fortune Technology) VSU28 solder reflow system (2015) with Formic acid capability and heat exchanger

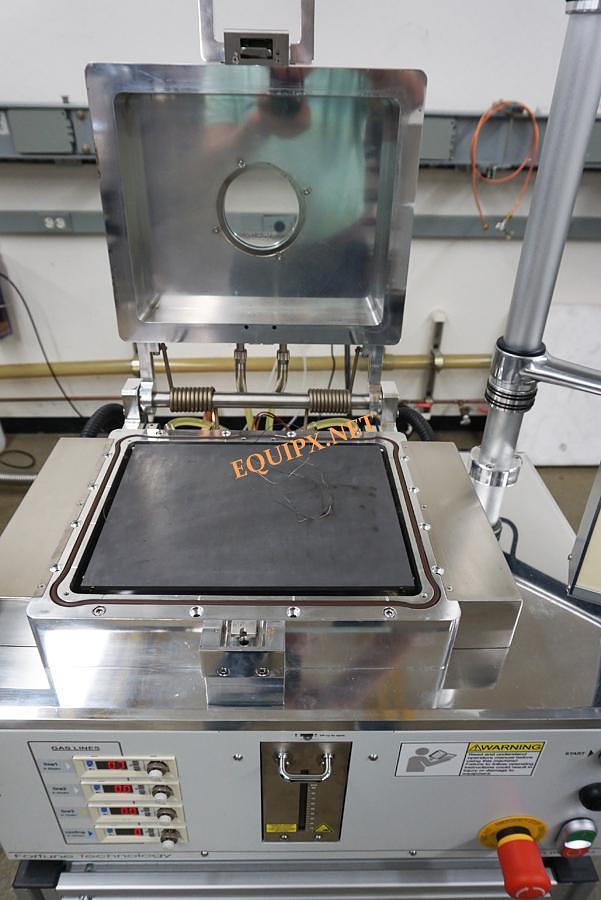

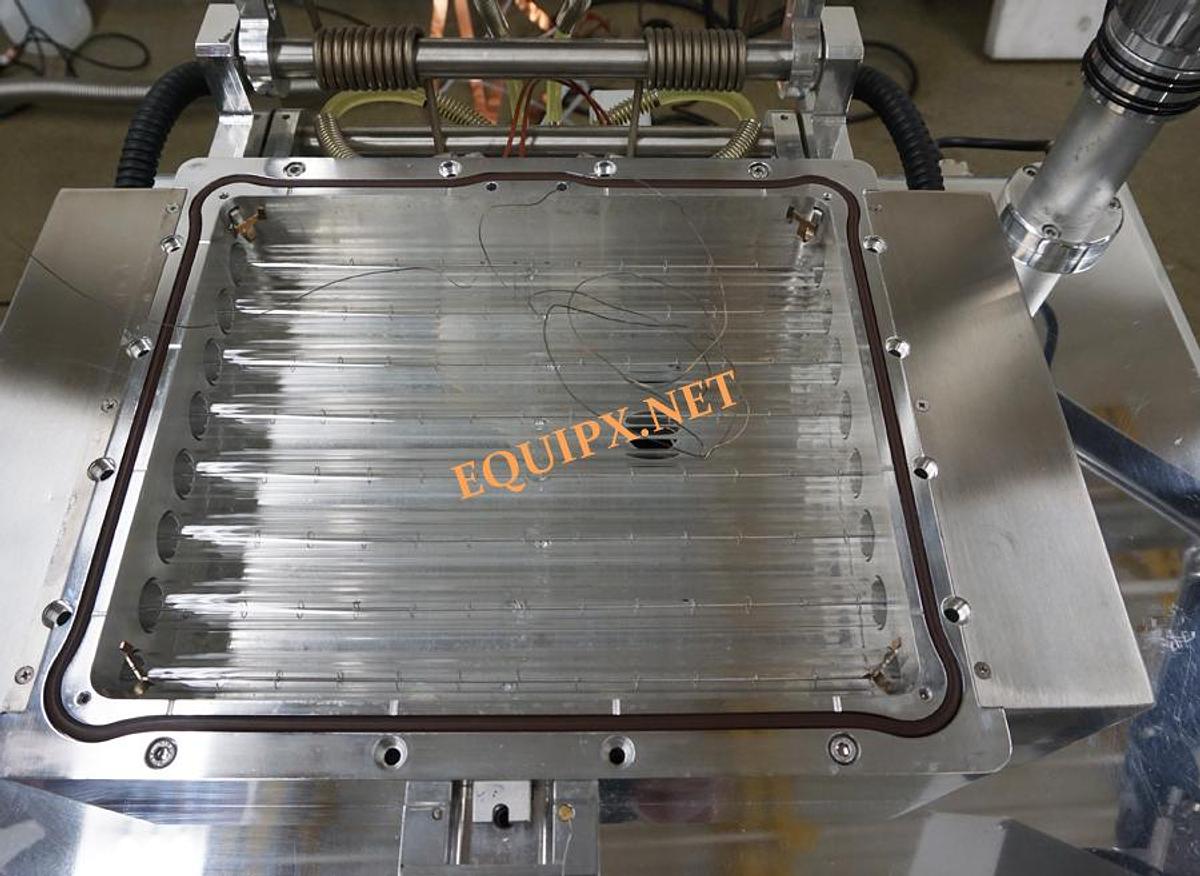

Infrared lamps placed under the tooling plate heat it up. The tooling plate in a rectangle form with dimensions 260x210mm can be produced of any suitable material also with custom openings for fixtures inside it. Design enables loading of tooling plate inside the chamber together with the parts on it - suitable for serial production.

Process cooling by means of nitrogen flow that blows from the chamber bottom against the tooling plate. The chamber itself is water cooled. Manufacturer website: invacu.com

Specifications
