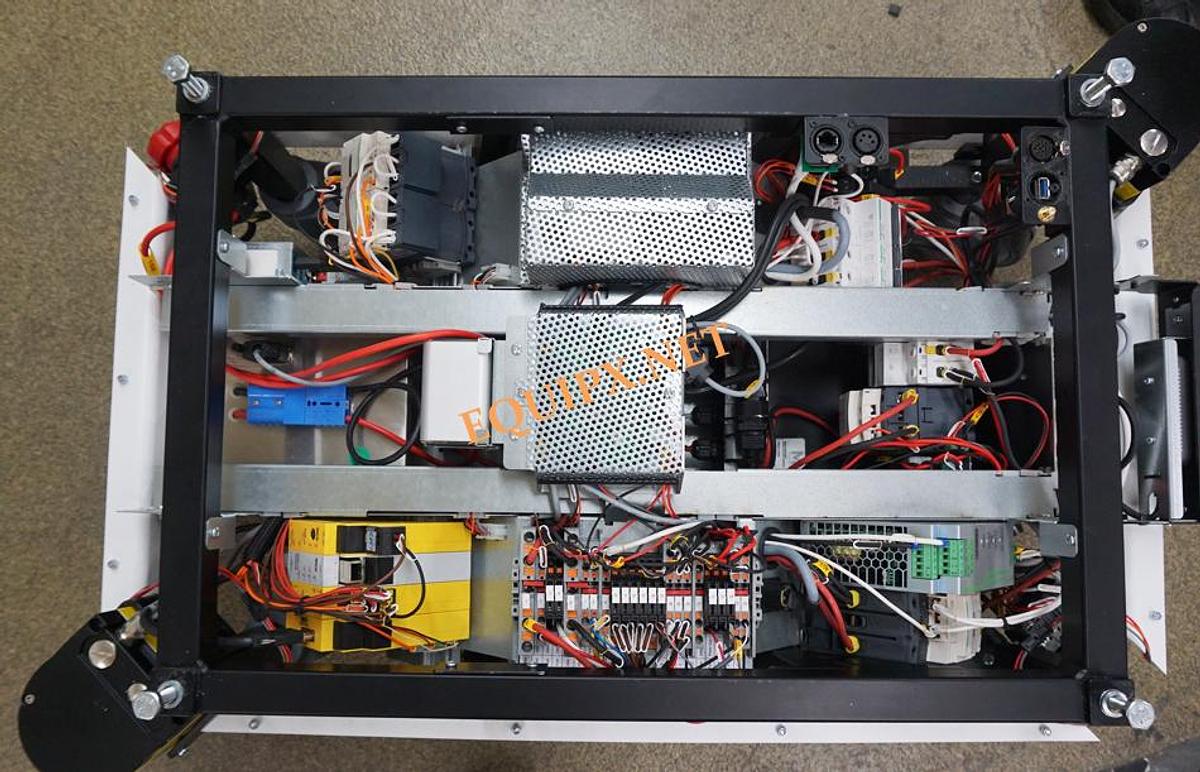

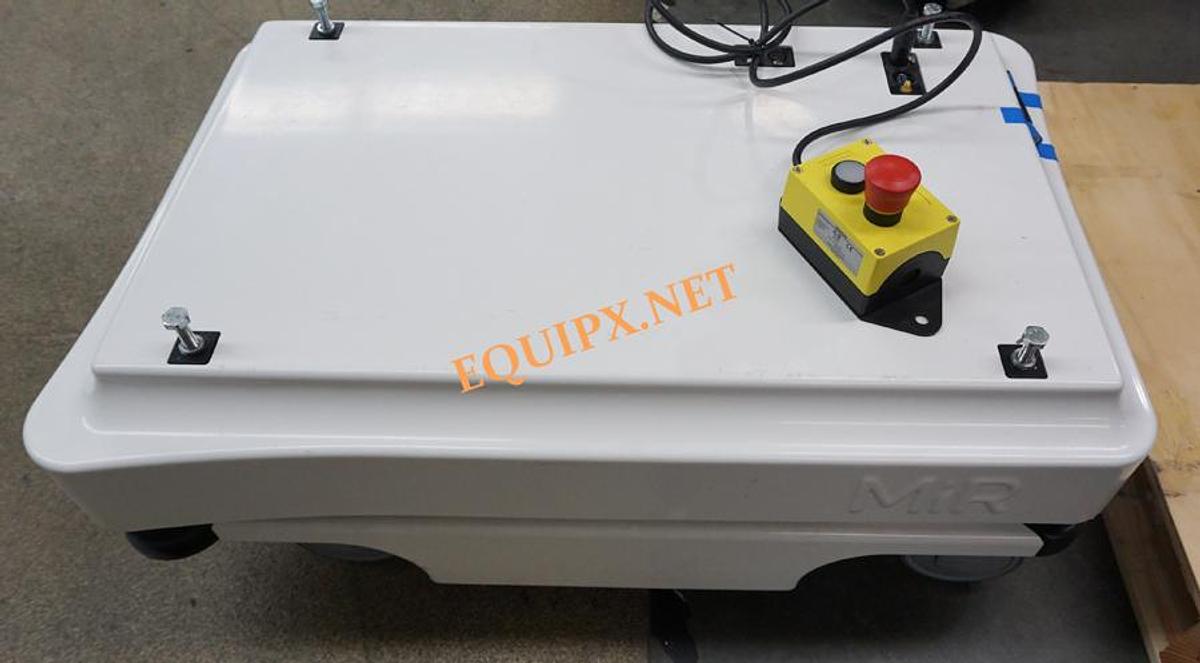

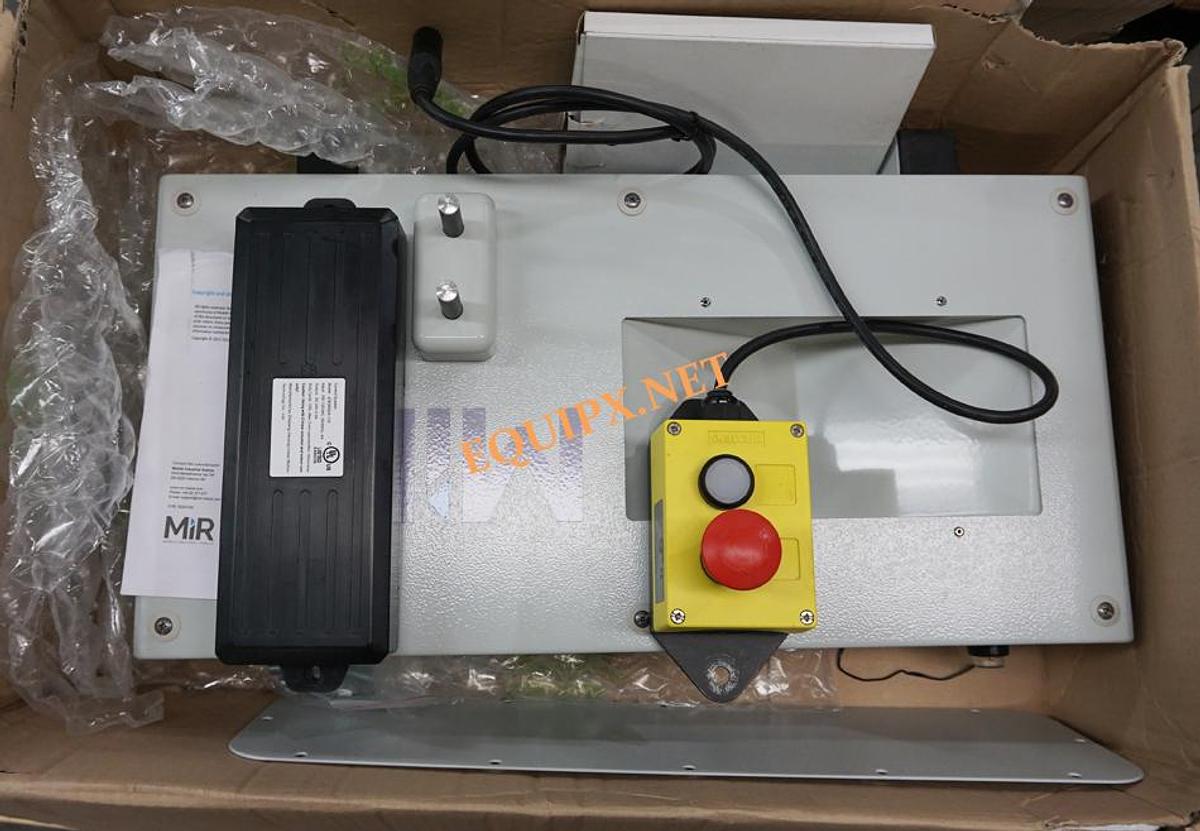

MIR 100 Mobile industrial robot (2018) with 110v MiRCharge
MIR 100 Mobile industrial robot (2018) with 110v MiRCharge
$23,900 (USD)
or
Call (408) 209-9278
Description
MiR (Mobile Industrial Robots)
This MIR robot appears never to have been used and includes all accessories
Mobile robot
Functions
Collaborative mobile robot (CoBot) for small transport tasks
Ethernet
WiFI (Dual-band wireless AC/G/N/B)
Bluetooth (4.0 LE; range 10-20m / 33-66ft)
USB connector
Ethernet
WiFI (Dual-band wireless AC/G/N/B)
Bluetooth (4.0 LE; range 10-20m / 33-66ft)
USB connector
Supply voltage (AC)
24Vdc (supplied by 40Ah Li-NMC battery; 700 charge cycles minimum)
Color
Pure white (RAL 9010)
Speed
1.5m/s (5.4km/h) max. speed (forward)
0.3m/s (1km/h) max. speed (backwards)
0.3m/s (1km/h) max. speed (backwards)
Measurement accuracy
(positioning accuracy) +/- 50mm (2") of position; +/- 10mm (0.4") to docking marker
(positioning accuracy) +/- 1mm with MiR Precision Docking
(positioning accuracy) +/- 1mm with MiR Precision Docking
Degree of protection
IP20
Dimensions
W580mm x H352mm x L890mm overall
600mm x 800mm (load surface)
50mm (ground clearance)
600mm x 800mm (load surface)
50mm (ground clearance)
Ambient air temperature for operation
5...+40 °C
Contents
2 x SICK safety laser scanners S300 for 360° visual protection (front and back)
2 x 3D camera Intel RealSense (detection of objects ahead 50-500mm above floor)
Battery (Li-NMC; 24V; 40Ah)
2 x 3D camera Intel RealSense (detection of objects ahead 50-500mm above floor)
Battery (Li-NMC; 24V; 40Ah)
Application type
Small transport tasks for logistics and heathcare
Manufacturer product status
Commercialized
Compliant with standard(s)
CE certified
Cleam Room certified
Cleam Room certified
Benefits
Eliminates material flow bottlenecks to increase productivity
Allows employees to focus on high-value activities; not deliveries
Safely and efficiently maneuvers around people and obstacles
Requires no changes to existing facility
Can be redeployed for different tasks with various top modules
Is easily programmed; with no prior experience needed
Transports payloads up to 100kg (220lbs)
Supports the transport of loads up to 300kg (661lbs) with the MiRHook
Offers fast return on investment in as little as one year
Allows employees to focus on high-value activities; not deliveries
Safely and efficiently maneuvers around people and obstacles
Requires no changes to existing facility
Can be redeployed for different tasks with various top modules
Is easily programmed; with no prior experience needed
Transports payloads up to 100kg (220lbs)
Supports the transport of loads up to 300kg (661lbs) with the MiRHook
Offers fast return on investment in as little as one year
Capacity
100kg (220lbs) robot payload capacity (at max. 5% incline)
300kg (660lbs) towing capacity
300kg (660lbs) towing capacity
Net weight
65 kg
