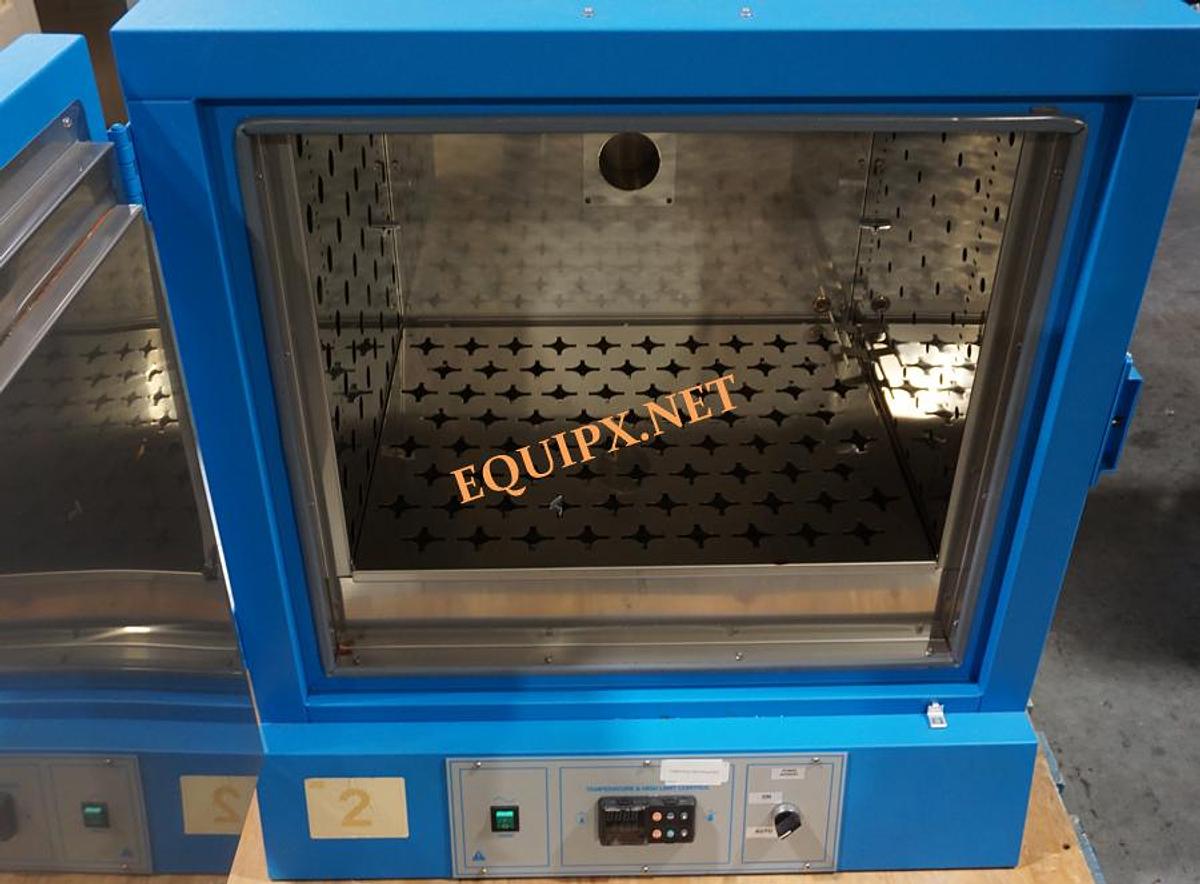

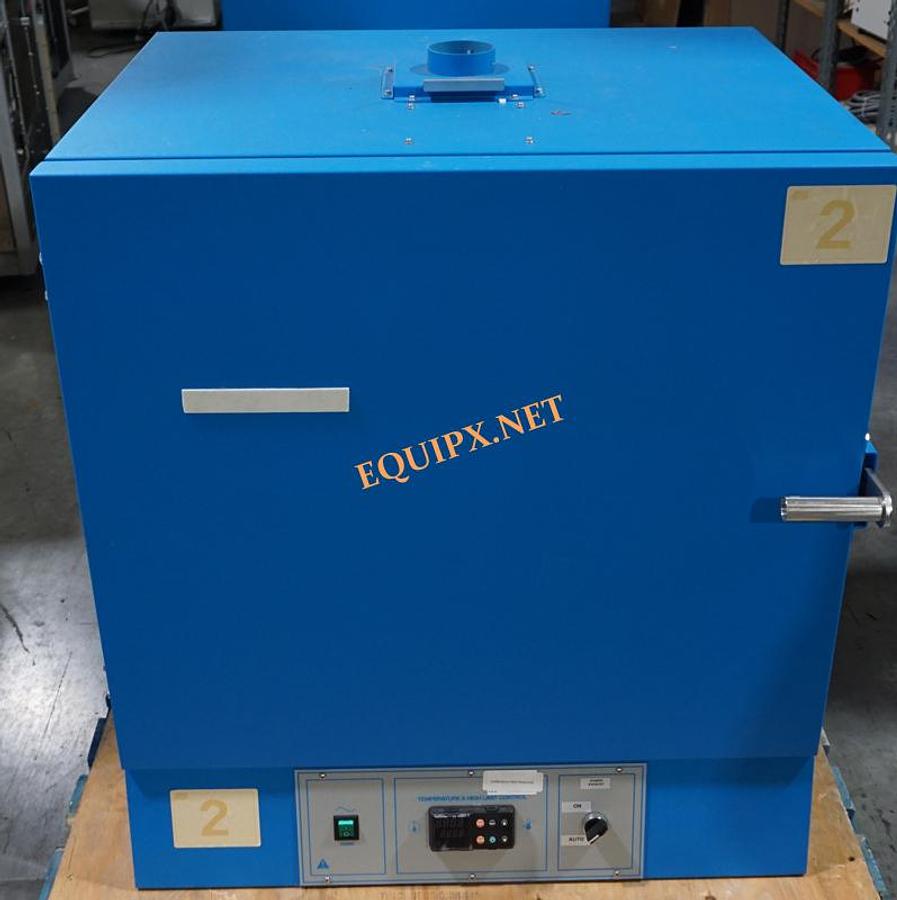

Cascade Tek TFO-5 5 cu ft. Forced air oven max temp 300C

CAPACITY 4.9 cubic feet (138.75 cubic litres)

INTERIOR DIMENSIONS (WxDxH) 23” x 20” x 18.5” (58.42 x 50.8 x 46.99)

EXTERIOR DIMENSIONS (WxDxH) 33" x 27" x 37.25" (83.82 x 68.58 x 94.62)

TEMPERATURE RANGE Ambient +5°C to 300°C (With Standard Gasket)

TEMPERATURE UNIFORMITY +/-3°C at 150°C TEMPERATURE TIME TO 150°C 20 minutes

TEMPERATURE RECOVERY TIME 6 minutes (after door open 30 seconds) AIR FLOW 145 feet per minute

CONTROLS Watlow EZ programmable control with ramp & soak capabilities.

Built-in, independent overtemperature controller.

DB25 pin RS-485 serial comm port.

POWER 208-230V / 1Ph / 50/60Hz / 9 Amps HEATER WATTAGE 2000 Watts

STANDARD DOOR GASKET Silicone 235°C Max

SHELVES 2 Adjustable 304 stainless Steel

ACCESS PORT 2.75” Rear

WEIGHT 210 lbs. (295 lbs. shipping)
