Cascade S300 Semiautomatic prober with Mitutoyo microscope and Temptronic 300mm temperature controlled wafer chuck with Attoguard
Cascade S300 Semiautomatic prober with Mitutoyo microscope and Temptronic 300mm temperature controlled wafer chuck with Attoguard
$84,900 (USD)
or
Call (408) 209-9278
Description

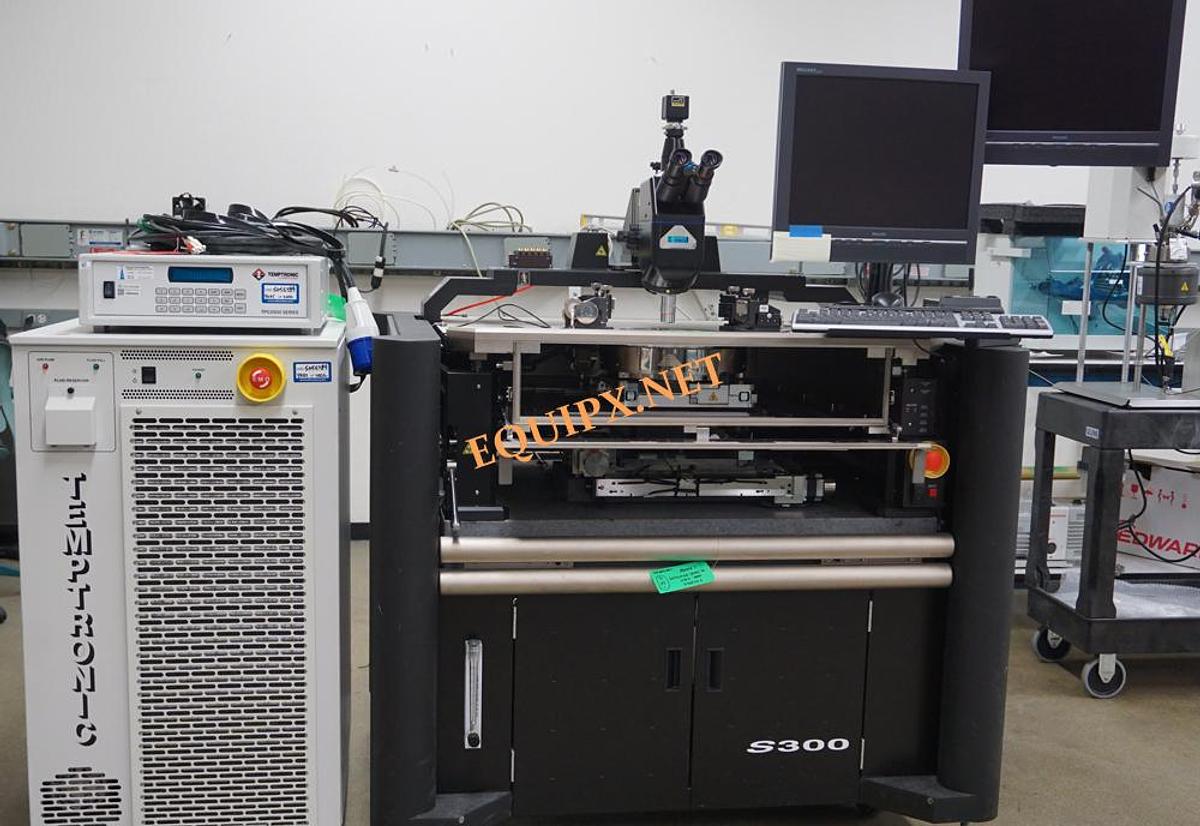

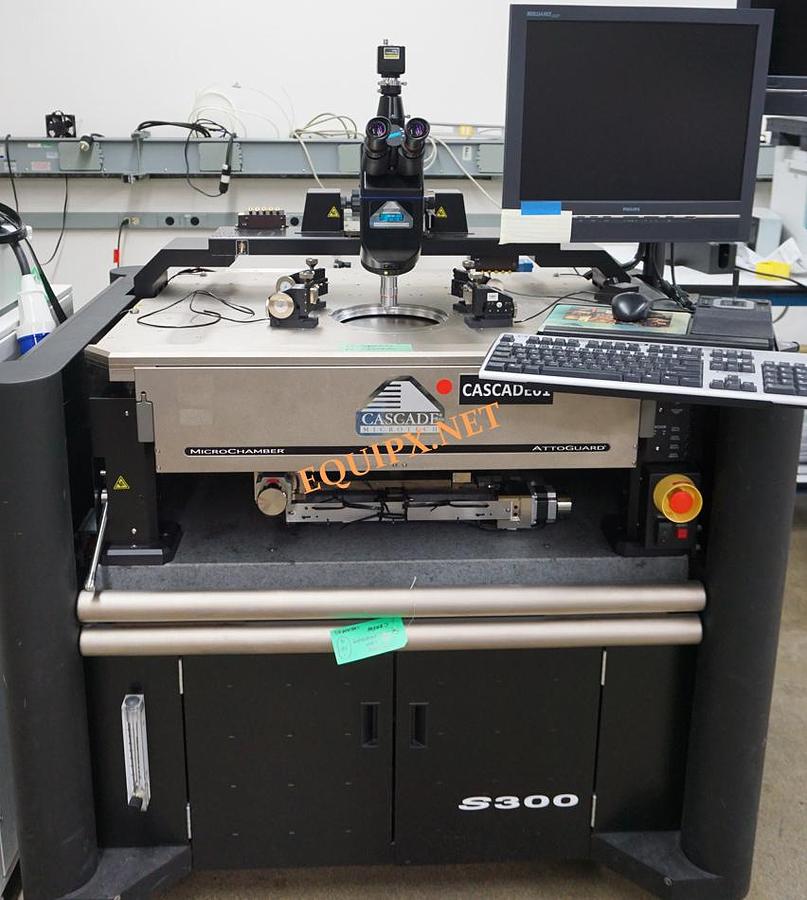

Cascade Microtech S300 Semiautomatic Probing Station
Supports shards and wafer sizes up to 12 in. (300mm).
MicroChamber(TM) and AttoGuard(TM) shielding reduces external noise signals

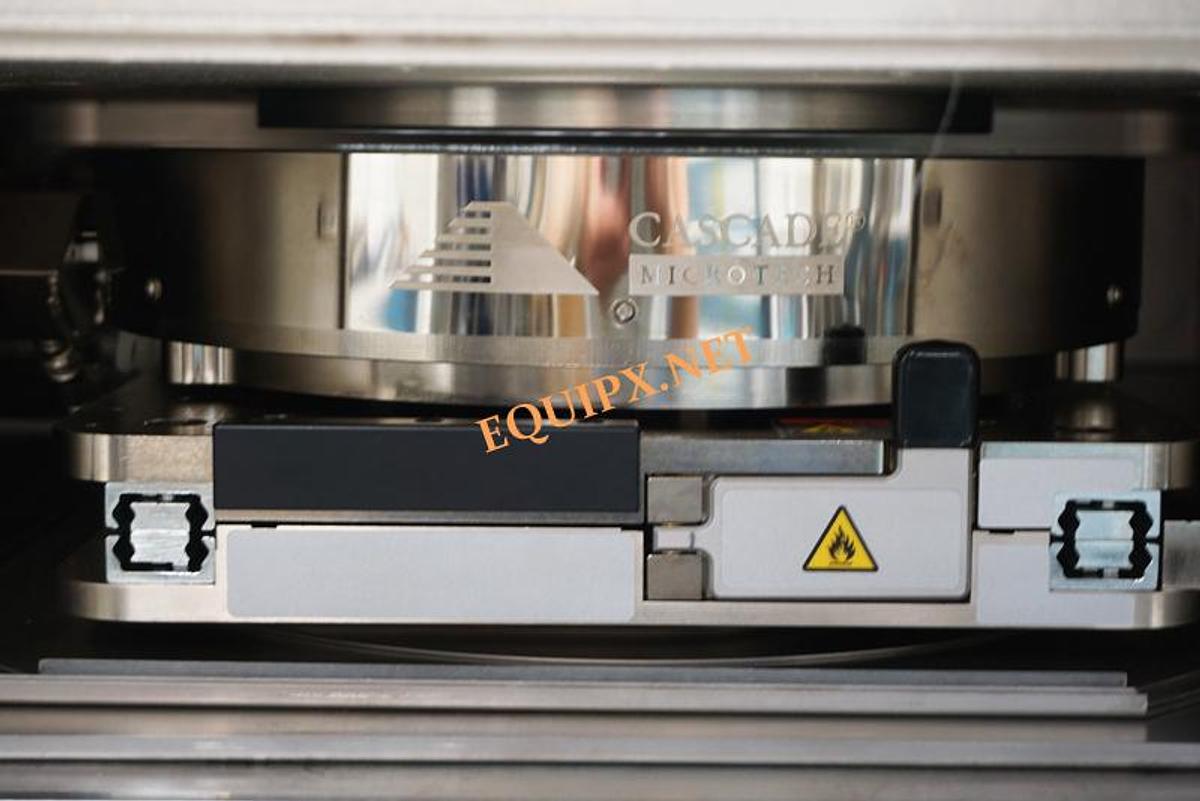

FemtoGuard chuck with triaxial connections reduces noise and leakage down to 1 fA

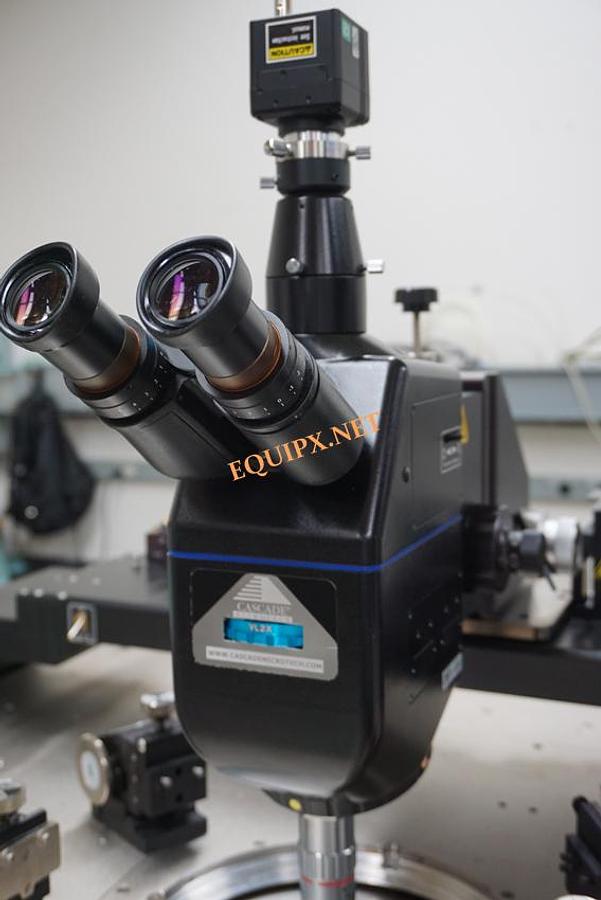

Mitutoyo microscope with Sentech STC-620PWC-B camera and 10x eyepieces
MicroChamber for dark, dry and enhanced EMI-shielded and low noise measurements
Cascade 12" temperature controlled vacuum chuck heats and cools from –55°C to 200°C
Mitutoyo 50AAB307 illumination source.
Serial no. 395490312.

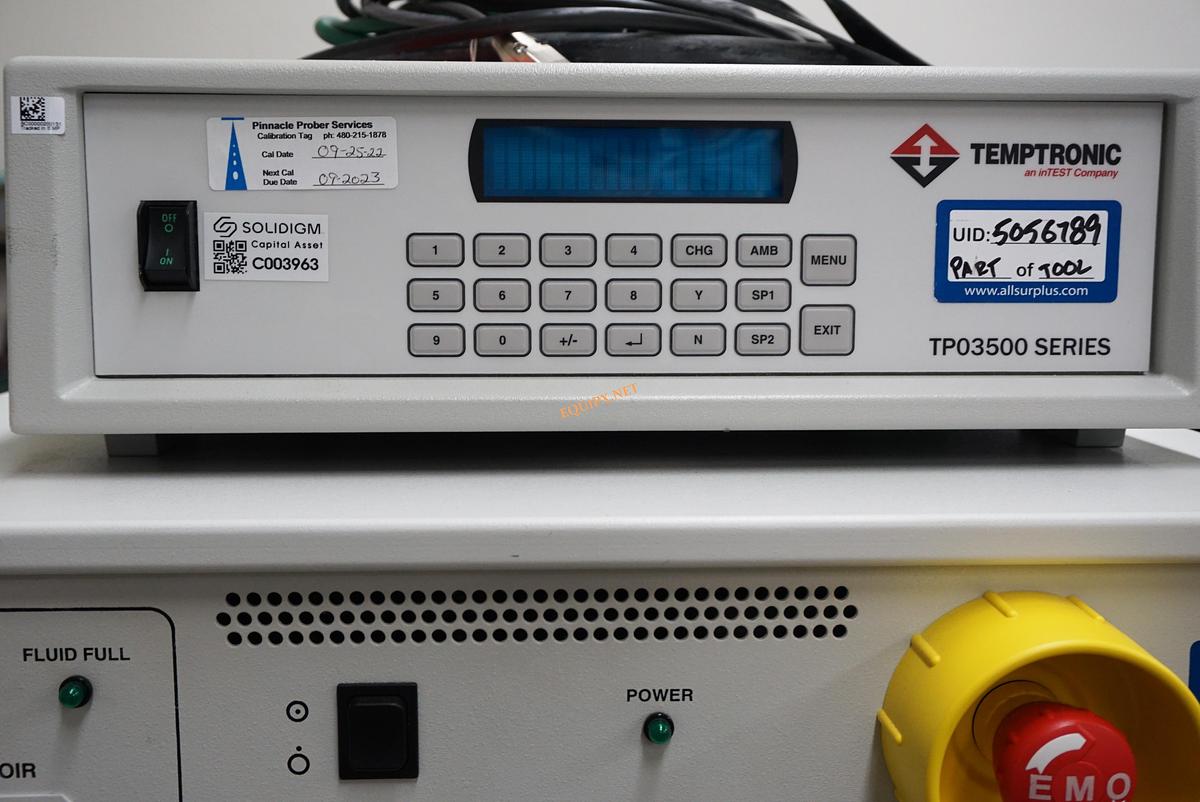

Temptronic TP03500 temperature controller, p/n SA158270

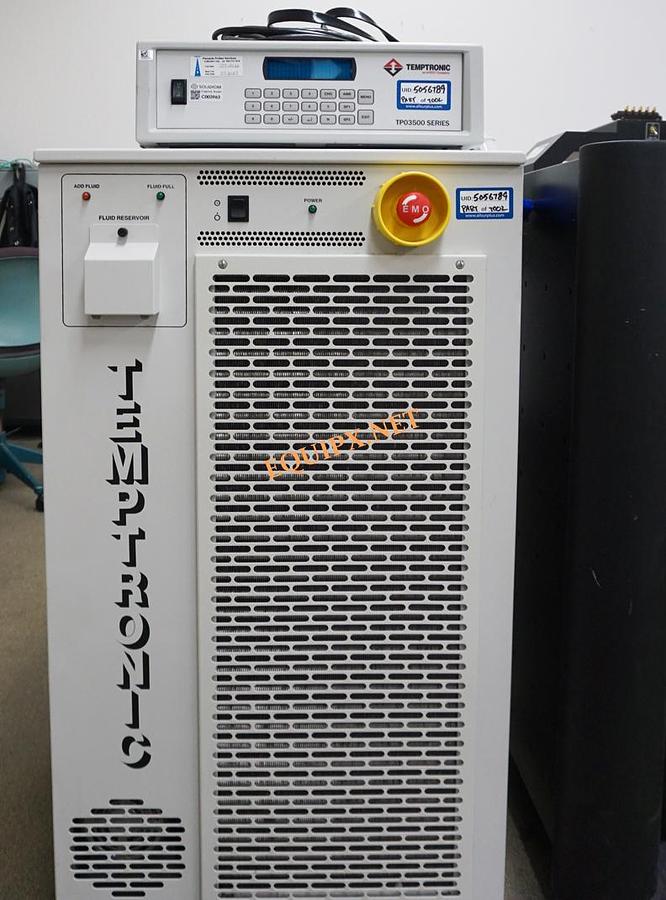

Temptronic TP03500 recirculating chiller p/n SA163000
2ea GBB Picoprobe power supplies
4ea DPP210 DC micropositioners
Supports shards and wafer sizes up to 12 in. (300mm).
MicroChamber(TM) and AttoGuard(TM) shielding reduces external noise signals
FemtoGuard chuck with triaxial connections reduces noise and leakage down to 1 fA
Mitutoyo microscope with Sentech STC-620PWC-B camera and 10x eyepieces
MicroChamber for dark, dry and enhanced EMI-shielded and low noise measurements
Cascade 12" temperature controlled vacuum chuck heats and cools from –55°C to 200°C
Mitutoyo 50AAB307 illumination source.
Serial no. 395490312.
Temptronic TP03500 temperature controller, p/n SA158270
Temptronic TP03500 recirculating chiller p/n SA163000
2ea GBB Picoprobe power supplies
4ea DPP210 DC micropositioners
Specifications
| Stock Number | 5101 |
| Sort | 0 |
