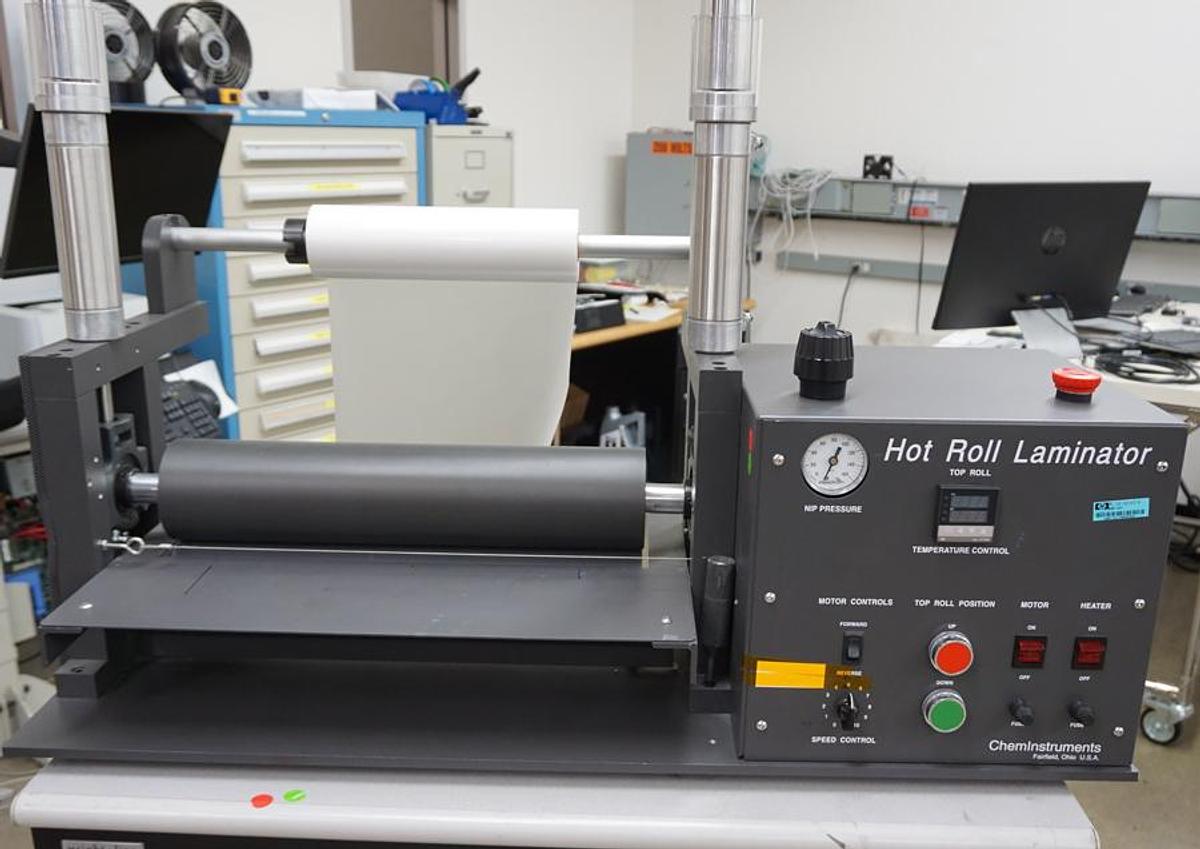

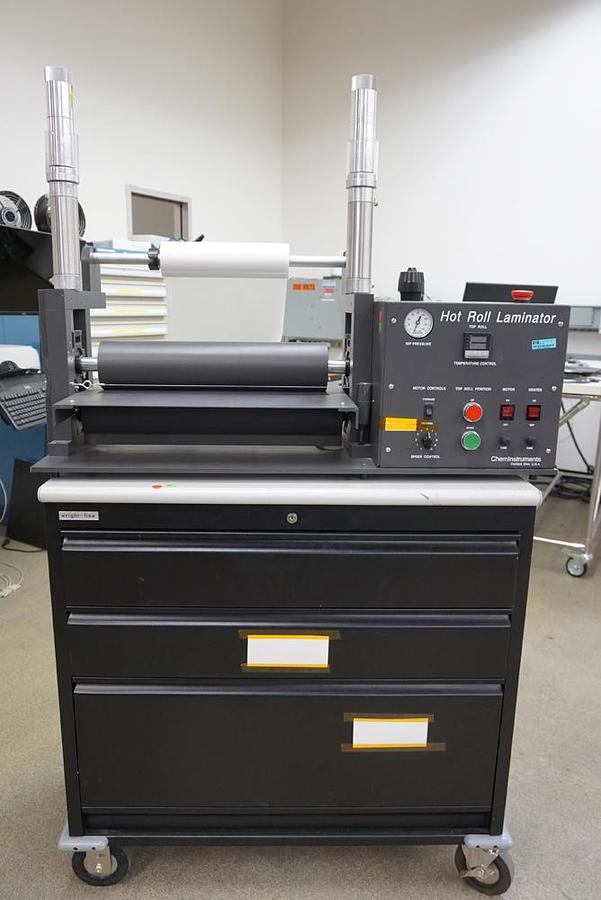

ChemInstruments HL-100 Hot Roll Laminator with base cabinet

The ChemInstruments HL-100 Hot Roll Laminator can hot laminate product samples on a laboratory bench top. The features included in the HL-100 provide control to consistently reproduce samples that are ready for testing.

The flexibility of the controls allows a wide range of materials to be laminated.

• Produces laminated samples up to 18" (45 cm) wide.
• Variable speed controller can be adjusted to laminate up to 20 feet per minute.
• Produces a maximum temperature of 350° F (177° C).

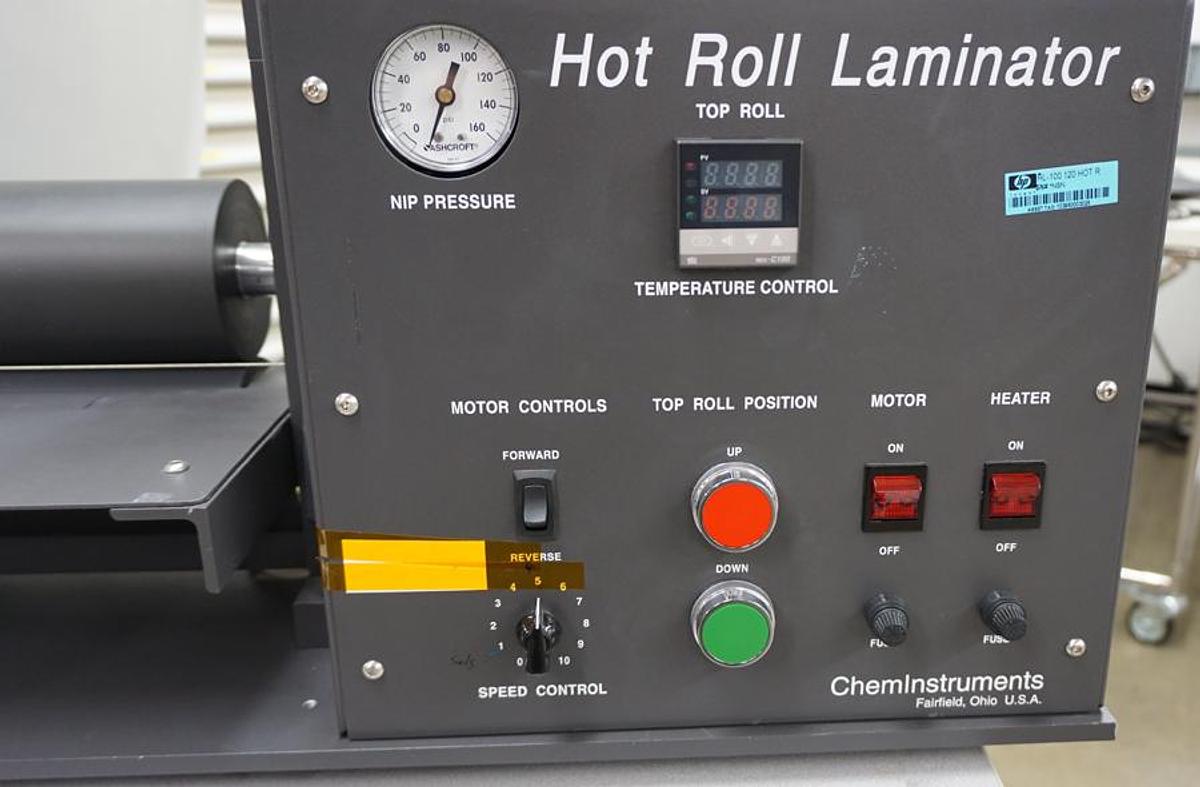

• Temperature adjusted by state of the art PID digital temperature controller and 1500 Watt cartridge heater in top laminatine roll.
• Laminating pressure can be easily reproduced with air pressure regulator.
• Unwind stand holds paper/film to be laminated.
• Safety features include trip wire and emergency Stop.
• Durable aluminum and steel construetion means a longer machine life with consistent performance.
• Bottom aluminum drive roll is covered with 80 durometer silicone rubber.
• HL-100 features a heated top roll made of anodized teflon coated aluminum.

Dimensions (approx.)

Height:30" (76 cm)Width:39" (98 cm)Depth:14" (36 cm)Weight:160 lbs. (73 Kg) for aluminium roller

185 lbs. (83 Kg) for steel roller
