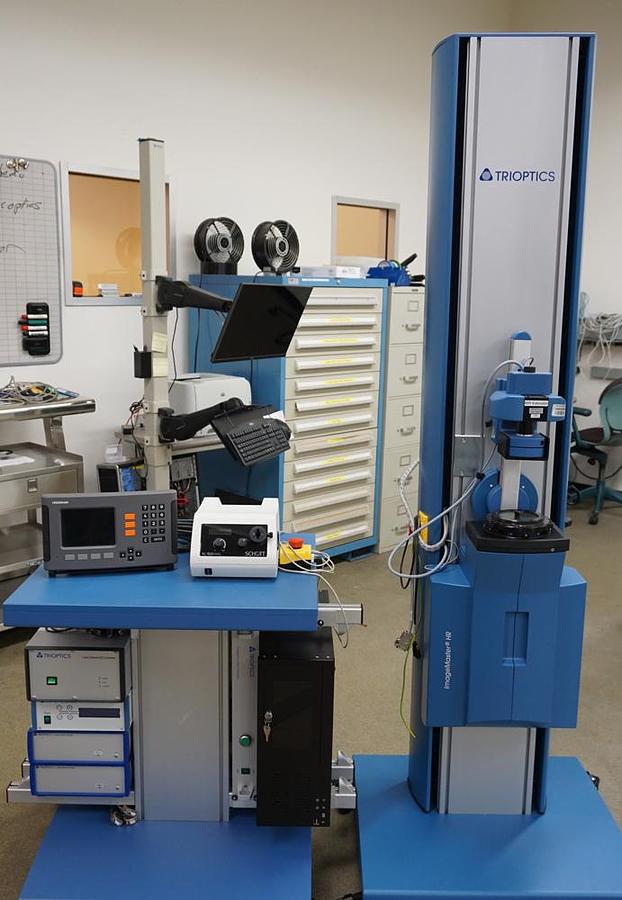

2018 Trioptics ICS Imagemaster HR Optical Lens Testing System and MTF Measurement Station with ProCAM Test R&D Module

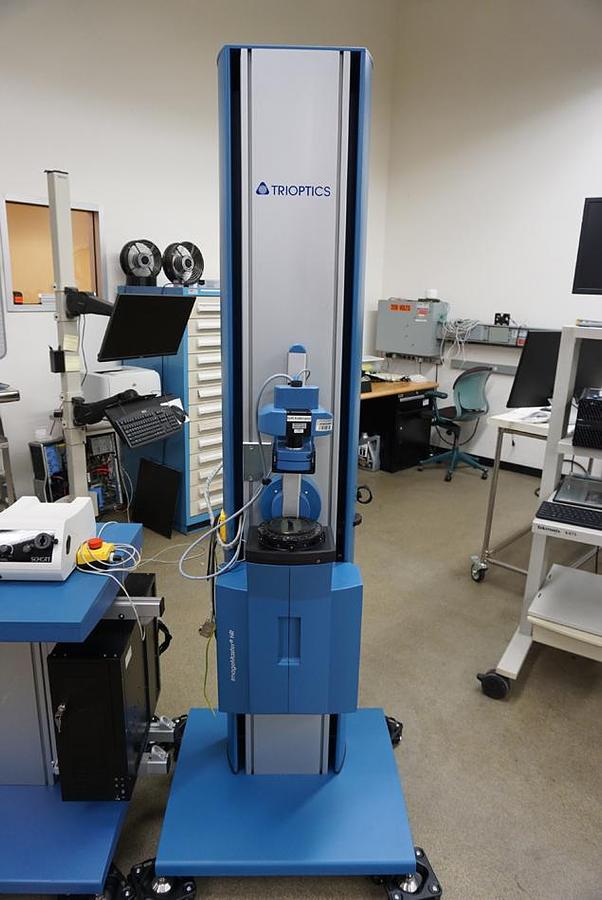

TRIOPTICS ImageMaster HR Optical Lens Testing System, MTF Measurement Station Serial Number: 09-113-0366; High-precision optical metrology system designed for testing and analyzing the image quality performance of lenses and optical assemblies. The TRIOPTICS ImageMaster HR platform is used in optics manufacturing, research, and quality control environments for measurement of image quality and related optical parameters.

System is designed for MTF / image quality testing of lenses and optical systems and is commonly used for evaluation of parameters such as image quality performance, focal characteristics, distortion, and other optical properties depending on installed configuration and software.

Features:

-TRIOPT" "ICS ImageMaster HR optical test platform

-Manufactured 2018

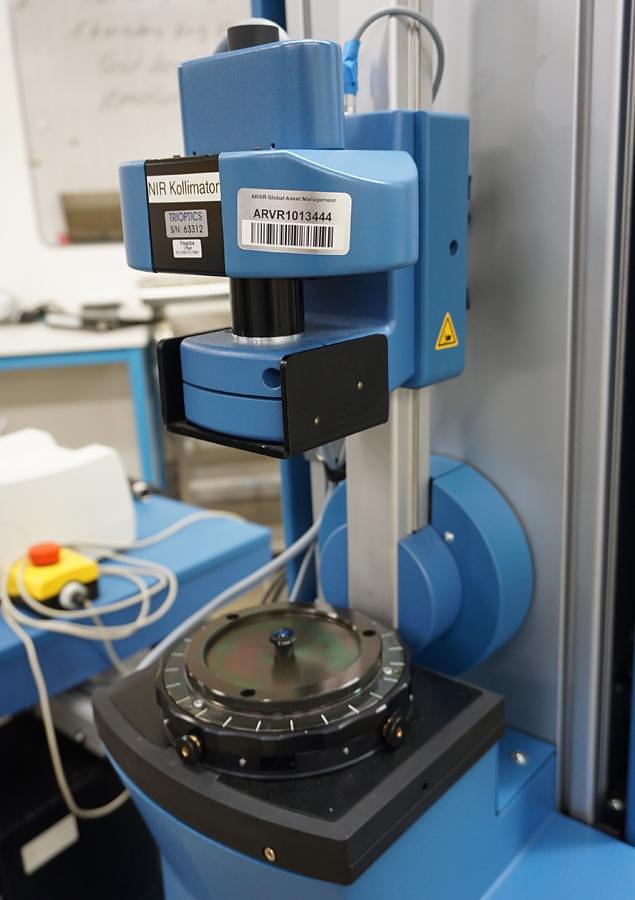

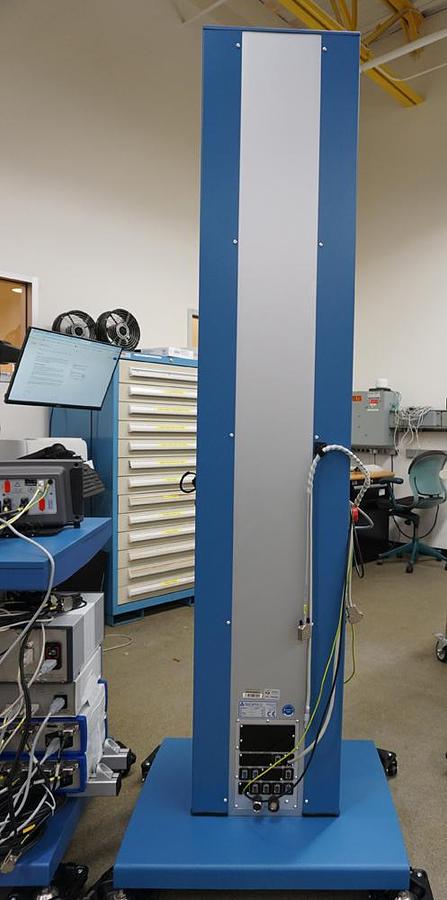

-Precision vertical metrology / test column configuration

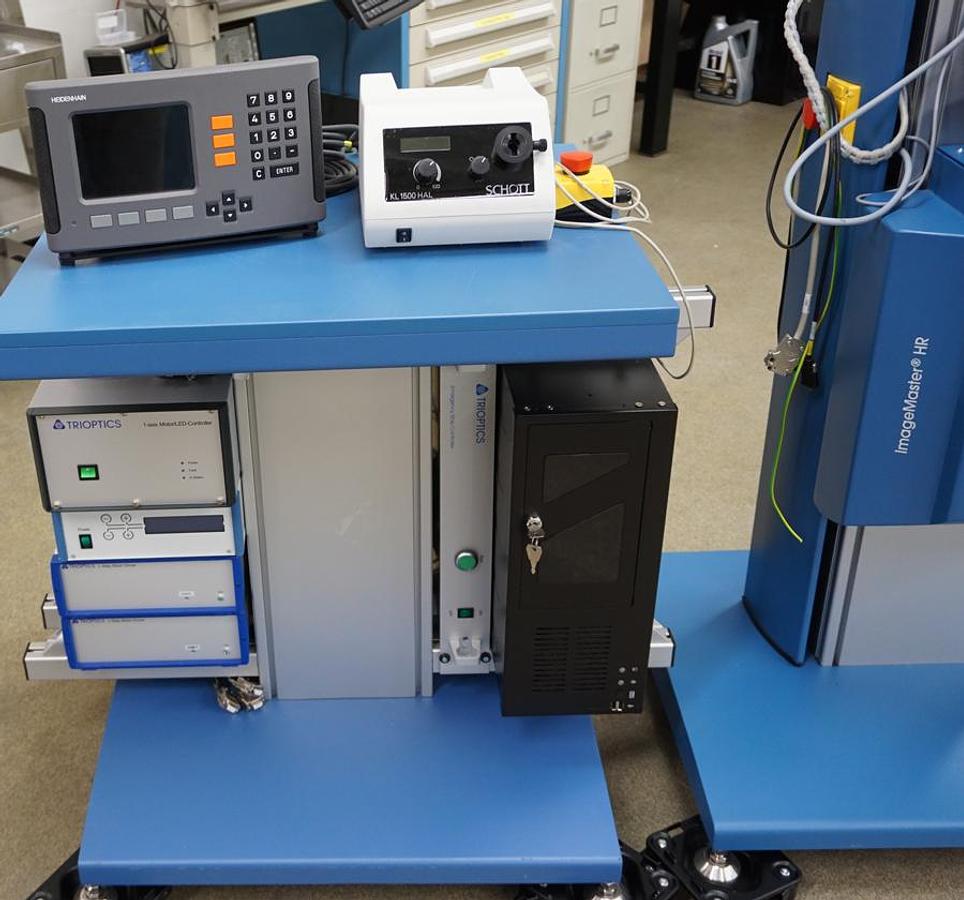

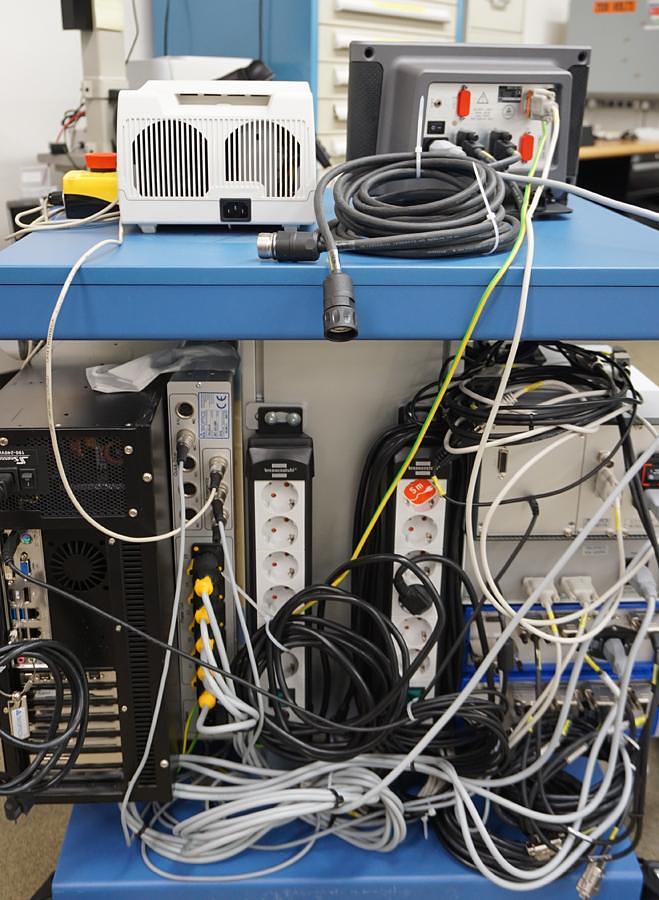

-Integrated electronics and cabling as shown

-Rated 90–260 V, 50–60 Hz, 1300 W

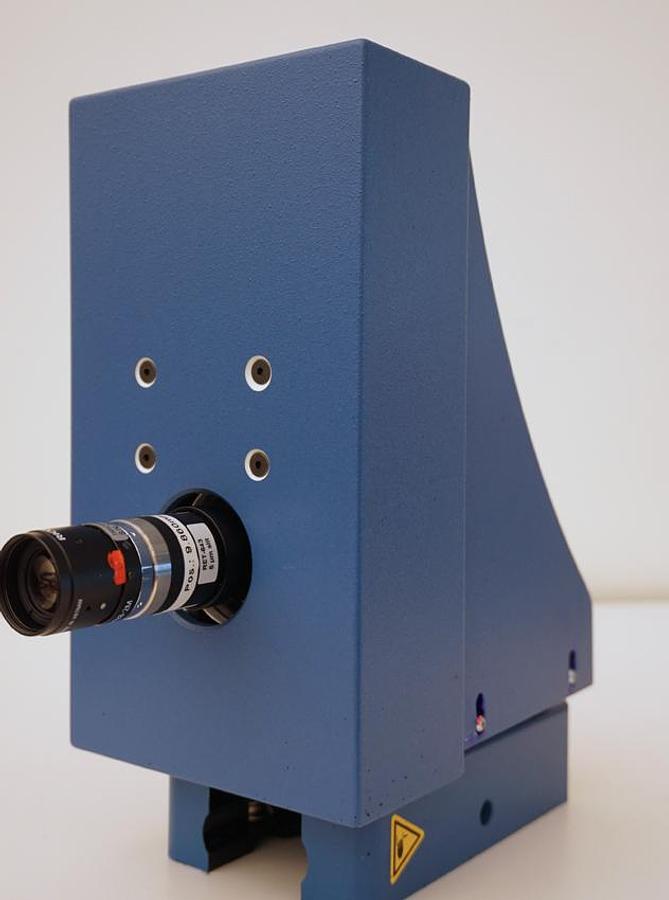

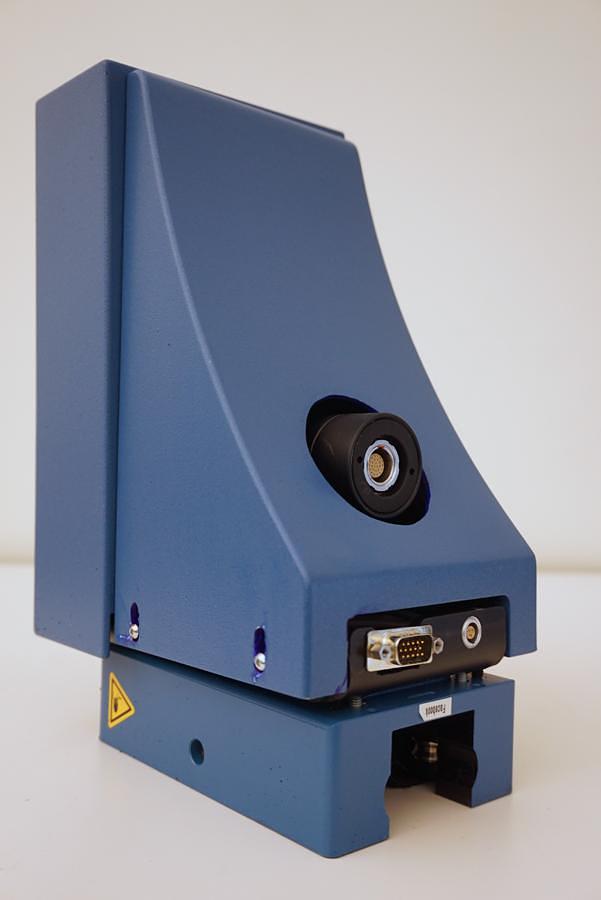

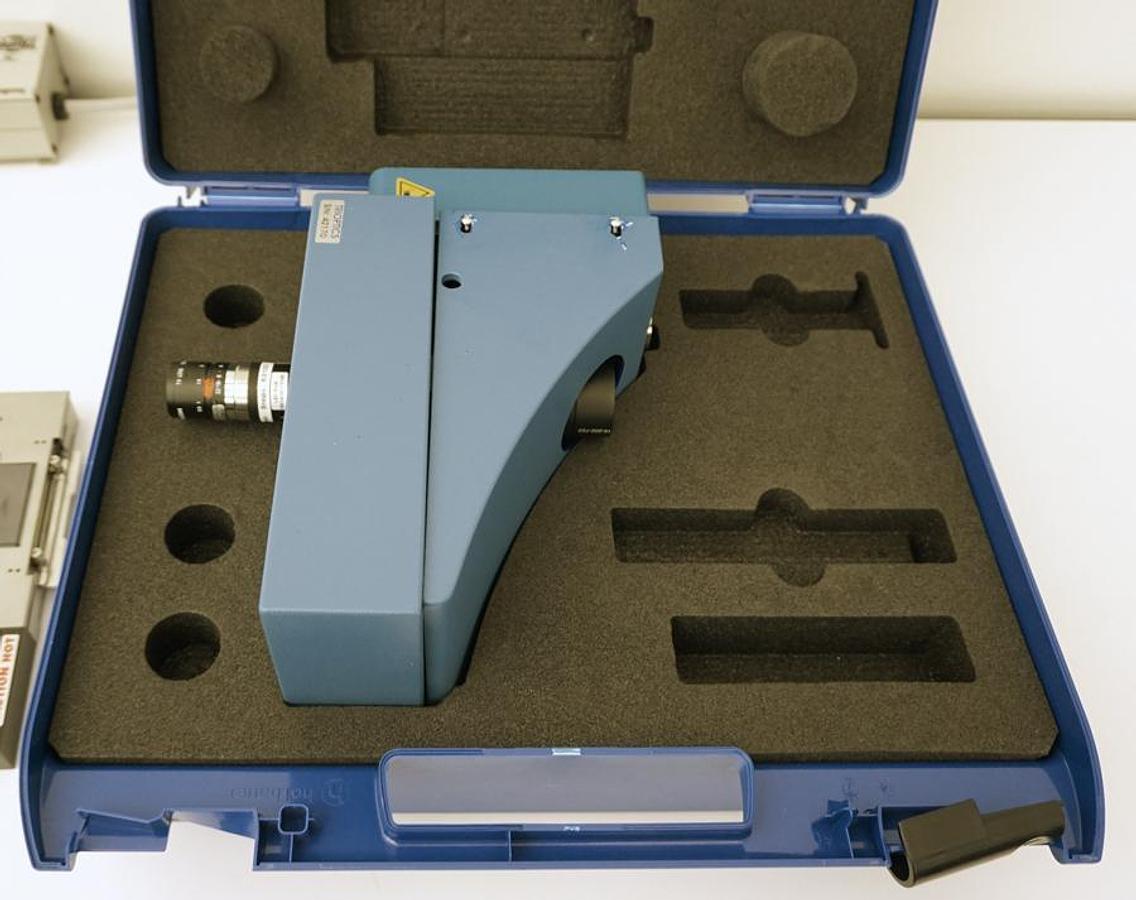

The TRIOPTICS ProCam® system is a specialized series of ultra-precise manufacturing and measurement modules designed for the active alignment, assembly, and testing of high-resolution camera modules
