2018 Espec BTL-433 Temperature Humidity Chamber with Watlow F4T controller, -20C to 180C, 115vac

4 cuft capacity

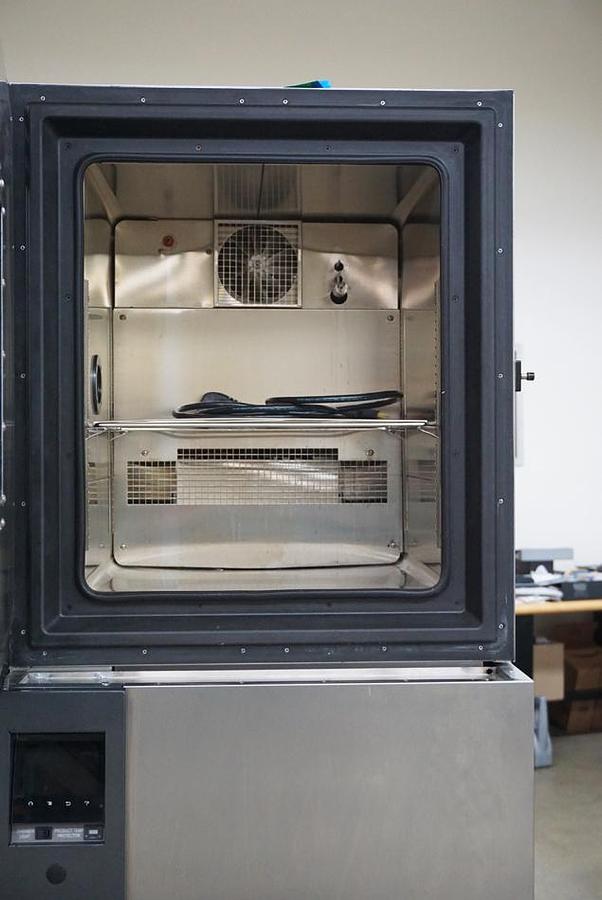

Chamber 19.6"w x 15"d x 23.6"h

-20C to 180C (-4F to 354F)

10-95% Rh

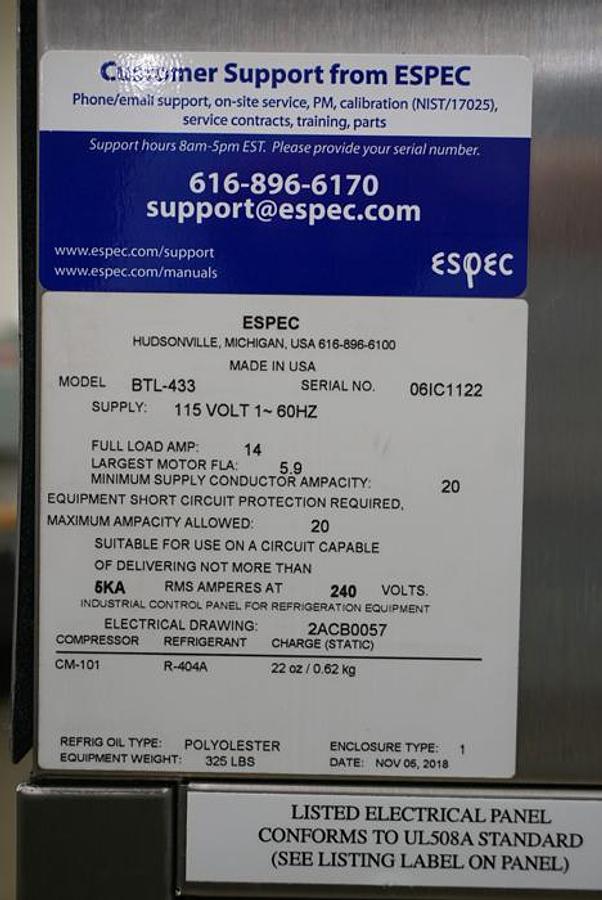

115v, 14FLA

Manufacture date Nov 2018

BTL-433: Criterion Benchtop Features

• High performance and quiet operation (65 dBa)
• Space-saving footprint, designed for flush installation to wall
• Stainless steel exterior
• Full thermal break around doorframe
• One 50mm (2”) diameter cable port on left, with flexible silicone plug
• Three levels of overheat protection, plus overcool protection
• Easy lift-off service panels, electrical access on left
• Detachable eight-foot power cord with plug
• Humidity models include direct water supply connection for continuous operation (supply tank optional)
• ETL listed electrical panel conforming to UL 508A

Touch-screen programmer/controller with Ethernet

• Watlow F4T with touch-screen and Ethernet port standard
• Save 40 profiles with up to 50 steps each (ramp, soak, jump, auto-start, end)
• One event relay for external device control, plus specimen power interlock relay for safety
• ESPEC exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB and RS-485 ports available, as well.

Options included:

Window in door

DI Cartridge filter

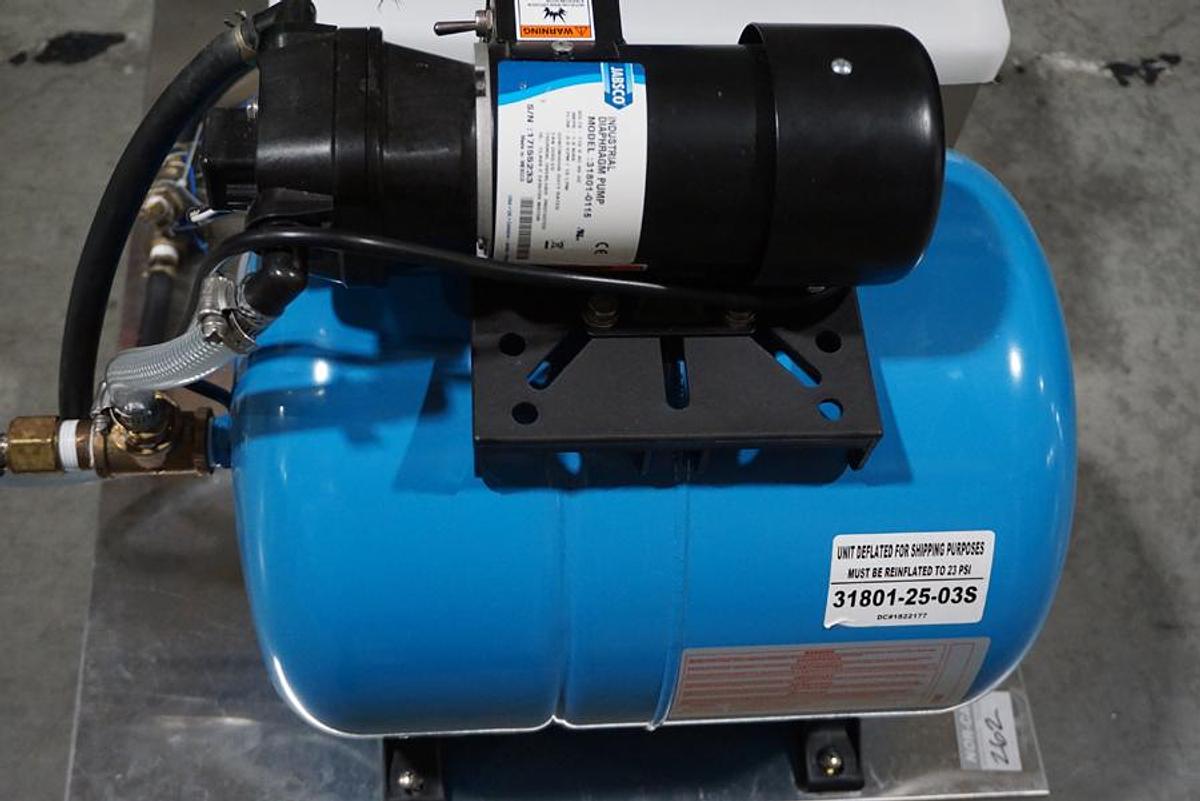

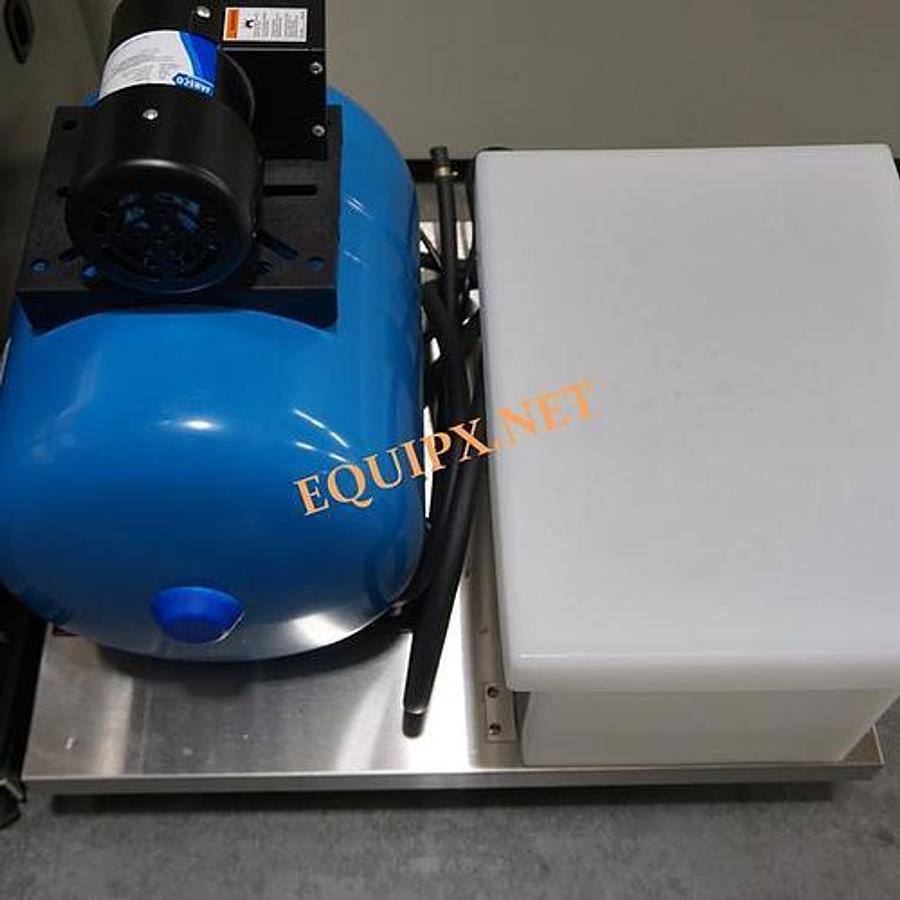

Humidity water tank

Benchtop chamber cart
