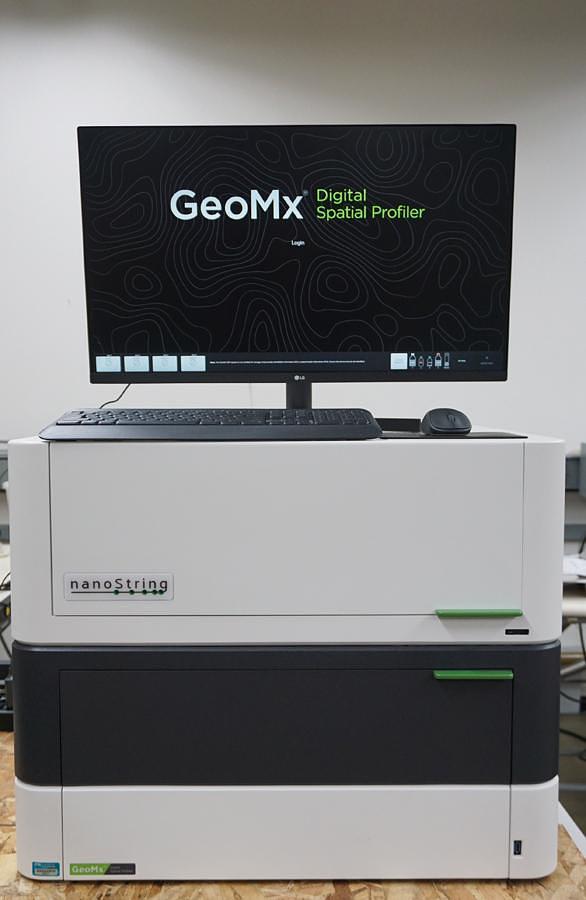

2002 Nanostring Technologies GeoMx DSP digital spatial profiler with Supplies

Nanostring Technologies GeoMx DSP Digital Spatial Profiler With monitor and accessories

Nanostring GeoMX is currently supported by Bruker Spatial Biology div.

see www.university.nanostring.com

Original owner was Morphotek, Exton, PA

Spatial Resolution: UV light can target regions down to 10 µm.

Tissue Compatibility: Compatible with both formalin-fixed paraffin-embedded (FFPE) and fresh frozen (FF) tissue sections.

Target Multiplexing:

Proteomics: Up to 1200 proteins from a single tissue section.

Transcriptomics: Thousands of protein-coding genes using Whole Transcriptome Atlas (WTA), with customizable panels of up to 400 RNA targets.

ROI Selection: Allows selection of any shape or size, including non-contiguous regions, down to 10 µm in diameter.

Workflow: Integrates a standard histology workflow with automated staining using standard fluorescence imaging probes.

Readout: Released barcodes are quantified using either the nCounter Analysis System or Illumina next-generation sequencing (NGS).

Data Analysis: Includes the GeoMx DSP Data Analysis suite for visualization and analysis of spatial and quantitative data.

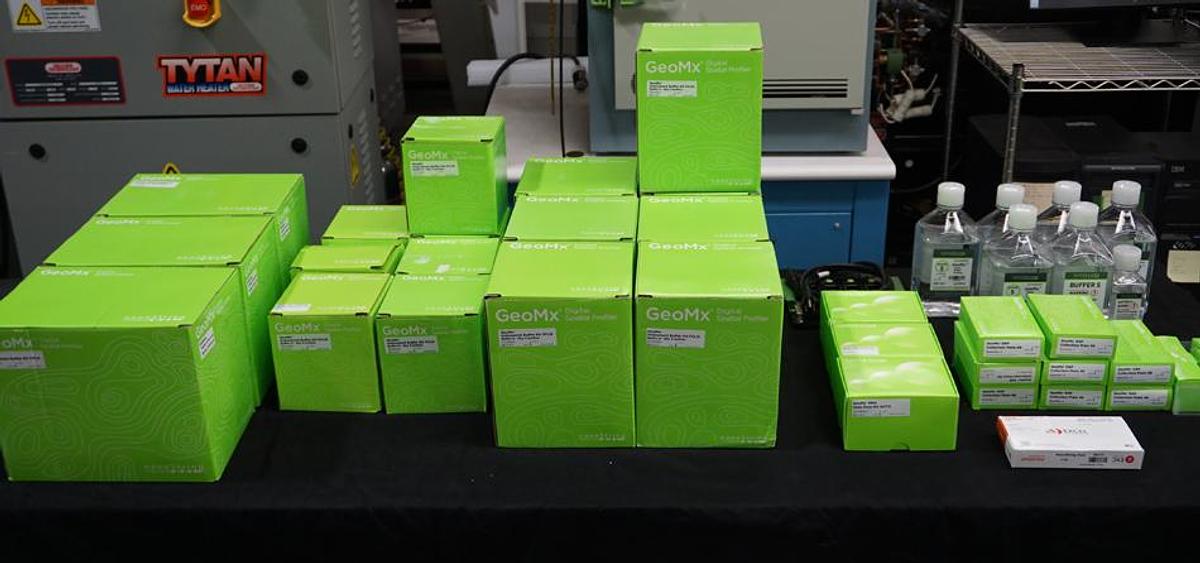

Includes:

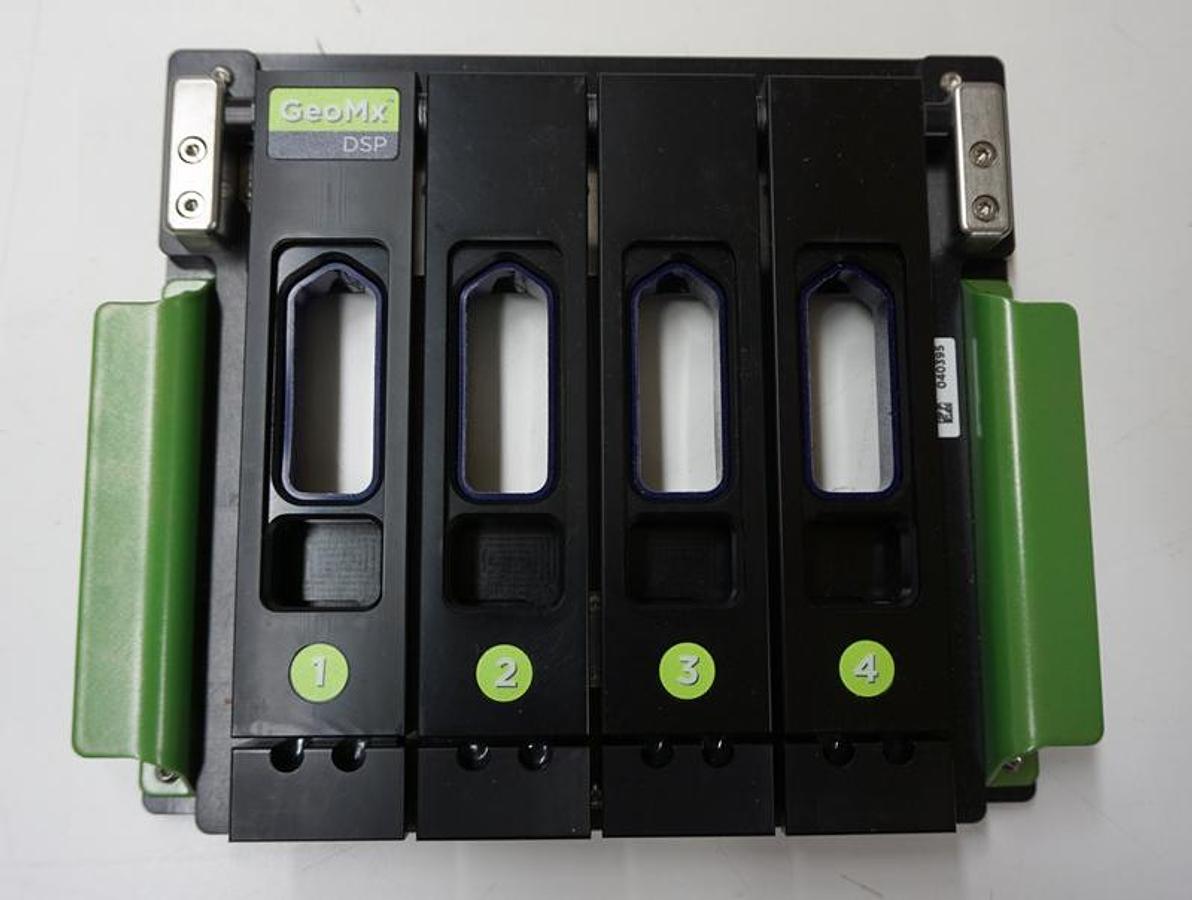

Slide holder (see photo)

LG Monitor

Mouse And Keyboard

GeoMx Digital Spatial Profiling Buffer

Buffer S

GeoMx RNA Slide Kit Auto

GeoMx Hyb Buffer

GeoMx DSP Collection Plate 96

GeoMx Instrument Buffer Kit PCLN Buffer H

GeoMx DSP Training Kit AeraSeal Film

GeoMx Insrument Buffer Kit PCLN Buffer S

GeoMx Digital Spatial Profiling Buffer S
