MSE PRO-307 24-Ton Benchtop Heated Lab Press (300°C) with Dual Flat Heating Plates (100x100 mm) and digital pressure display

The MSE PRO™ benchtop 24T manual hydraulic heated lab press is designed for heated pressing of polymer, ceramic powder and electrode membrane films.

This benchtop heated lab press has two flat heating plates (100 mm x 100 mm), which can be heated up to 300 °C.

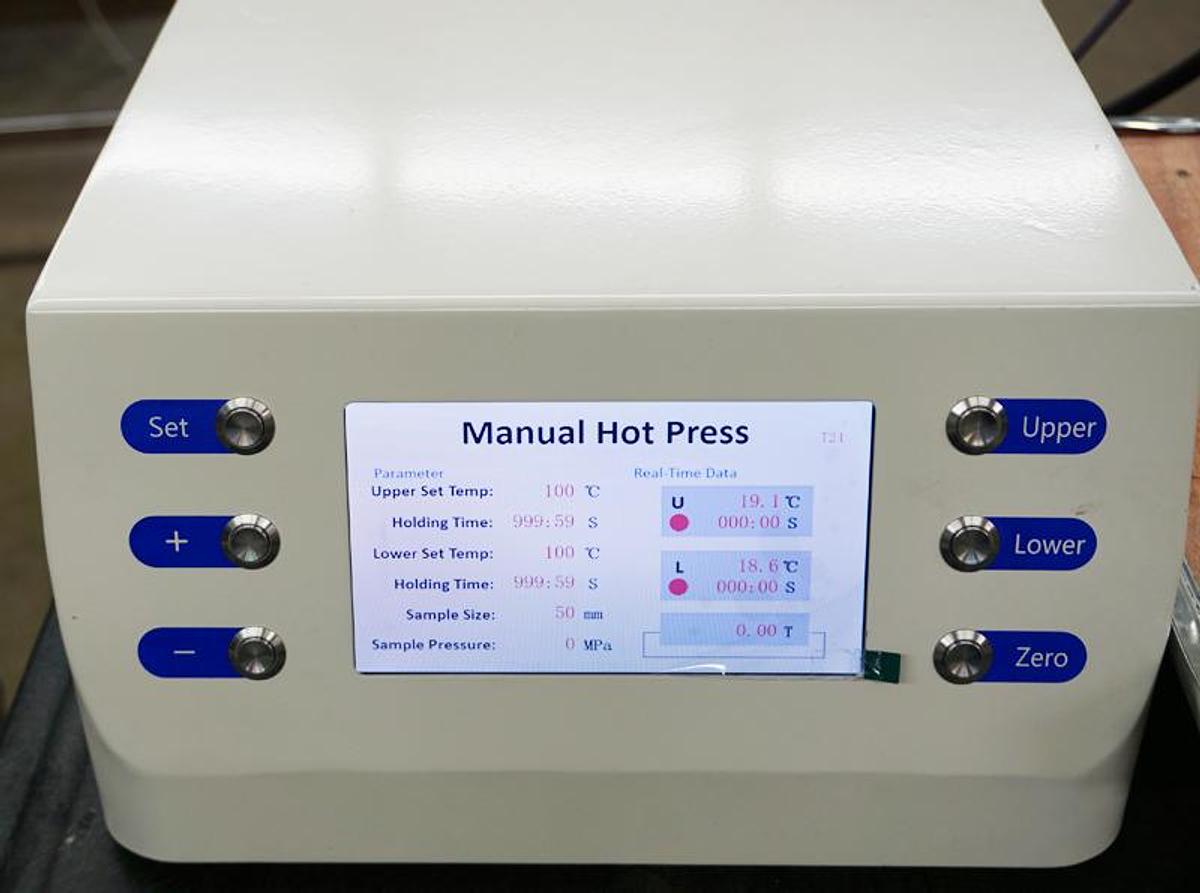

The heating plate temperatures are individually controlled by two digital temperature controllers, which ensures the precise temperature control.

The optional water cooling jackets are installed with the heating plates to allow the heated plates to achieve fast cooling (The water chiller is optional for purchase with additional cost). This benchtop heated lab press also can be used as small laminator for polymer films.

Pressure range 0-24 Metric Tons (0-34 MPa)

Heating range up to 300 °C

Diameter of piston (d) 95mm

Temperature control accuracy 0.1 °C

Cooling mode: Water cooling (Water chiller is optional with additional cost)

Heating plate (MxN) Dual 100x100 mm

Maximum distance between upper and lower plates 140mm

Distance between each two adjacent pillars 80mm

Hot press dimension (KxPxH) 245mm x 175mm x 500mm

Net weight 64kg without chiller

Power supply110V
