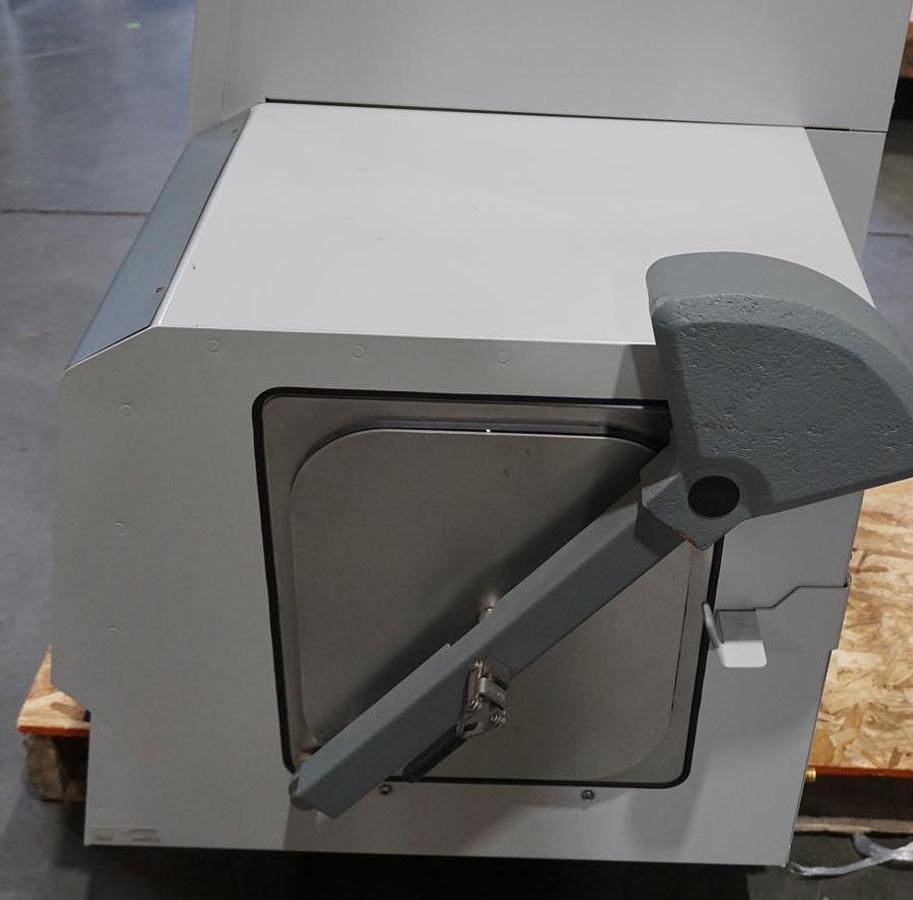

Labconco 5080110 Controlled Atmosphere Stainless Steel Glovebox with 4 gas inlets

• Key Features
• Exceed Class 1 atmosphere containment conditions for oxygen permeation <1.67 ppm/min. per ISO 10648-2 test method
• Four manual valves with 0.375 in. compression fittings, two on the main chamber and two on the transfer chamber
• Automatic control of the main chamber pressure, main chamber evacuation and filling cycles, and transfer chamber evacuation and filling cycles
• Regulation of vacuum/pressure between -5 and +5 inches of water gauge in the main chamber and between 0 and -29.5 inches of mercury in the transfer chamber
• Mutable, audible/visual alarm that sounds when pressure/vacuum level is outside set limits
• Three-position foot pedal (increase gas/fill, off, evacuate/decrease gas)
• Factory-installed, rear-mounted, low profile stainless steel pressure relief bubbler at ±6 inches of water gauge

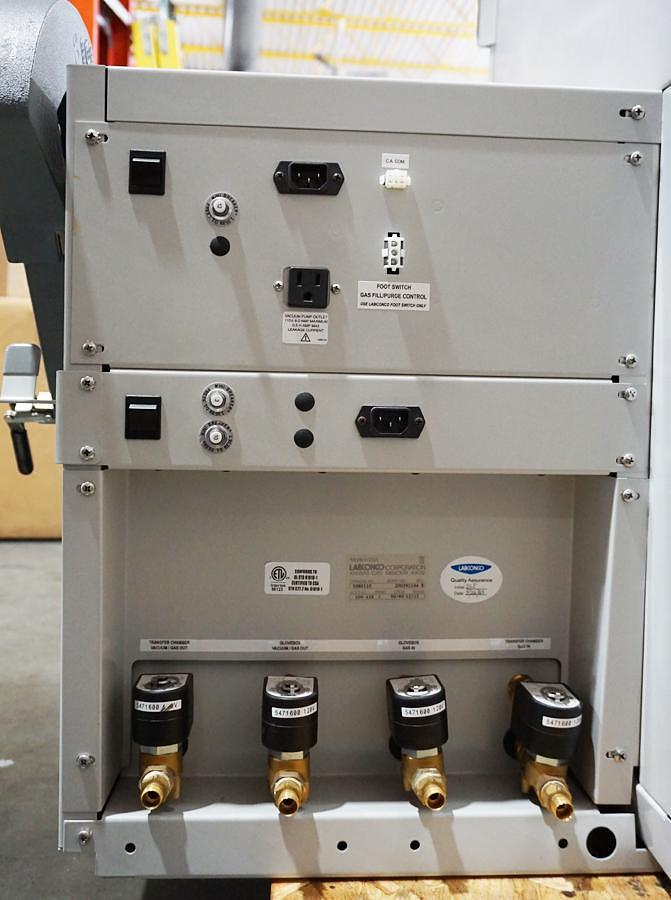

• Two rear-mounted inlet and outlet 0.75 in. OD compression fittings for easy connection to optional gas purifier or accessory drying train
• Factory leak-tested, no detectable leaks greater than 1x 10
• Additional Features

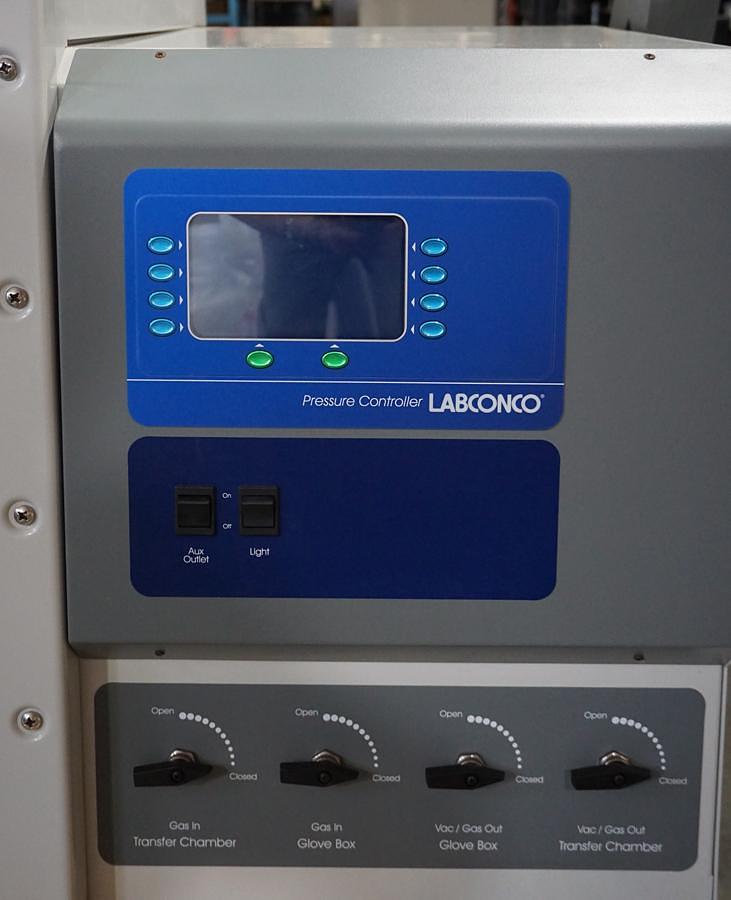

• LCD display of main chamber and transfer chamber pressure in inches of water, inches of mercury and mBar
• 0.38 in. thick laminated safety glass viewing window with 36.0W x 27.6 in.H (91 x 70 cm) viewing area
• Pair of neoprene gloves 0.015 in. thick, 30 in. long, size 9.75
• Two 8 in. ID epoxy-coated aluminum, double-grooved glove ports with neoprene gaskets
• Switches for light and electrical receptacle
• Two 25-watt fluorescent lights
• Dry-powder epoxy-coated, 18 and 20 gauge steel exterior panels
• Type 304 stainless steel liner with Type 304 stainless steel inner and outer transfer chamber doors, Type 304 stainless steel front panel
• Performance tested to maintain oxygen levels as low as 0.2 ppm and moisture levels as low as 1 ppm
• Oxygen permeation <0.16 ppm/min per ISO 10648-2
• One-piece molded fiberglass liner with clear acrylic inner and outer transfer chamber doors
• Performance tested to maintain oxygen levels as low as 0.4 ppm and moisture levels as low as 2 ppm
• Oxygen permeation <0.3 ppm/min per ISO 10648-2

Certifications

ETL listed, UL 61010-1 and CAN/CSA C22.2 No. 1010.1 conformity (North American models); CE marked (International models)
