Polycold PCC Compressor

The Edwards Polycold® PCC Compact Cooler system, which includes the compressor, is designed for applications such as high-resolution digital imaging, analytical chemistry, and semiconductor inspection.

• Cooling Performance: The system, using different patented mixed gas refrigerant blends (e.g., PT-30, PT-13), is capable of maintaining temperatures as low as -203° C (70 Kelvin).

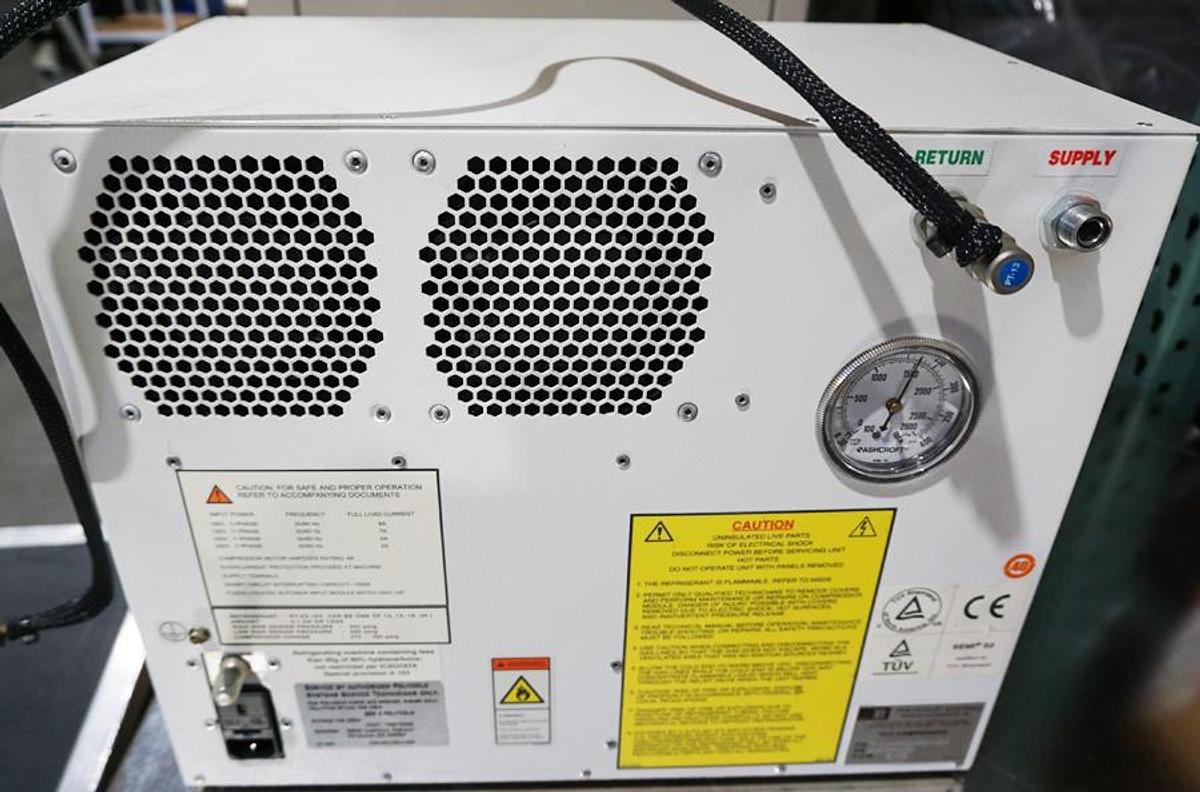

• Design: It features a compact compressor unit and a separate, remote cold end that can be used in any orientation, allowing for flexible installation.
• Key Features:Portability/Flexibility: The compressor can be located up to 120 feet (approx. 36 meters) from the cold end using self-sealing couplings for easy hook-up.
• Maintenance: It is designed to ensure repeatable performance and minimize maintenance costs, incorporating next-generation Cryotiger® technology.
• Power: It is air-cooled and requires single-phase power, with a voltage selector for 100, 120, 220, or 240 Volt operation.
• Typical Specifications (for T1104-11-000-30 model):Weight: Approximately 31.1 kg (68.5 lbs) for the compressor unit.
• Dimensions: Approximately 11.06 in (281 mm) x 17.75 in (451 mm) x 14.75 in (375 mm).
