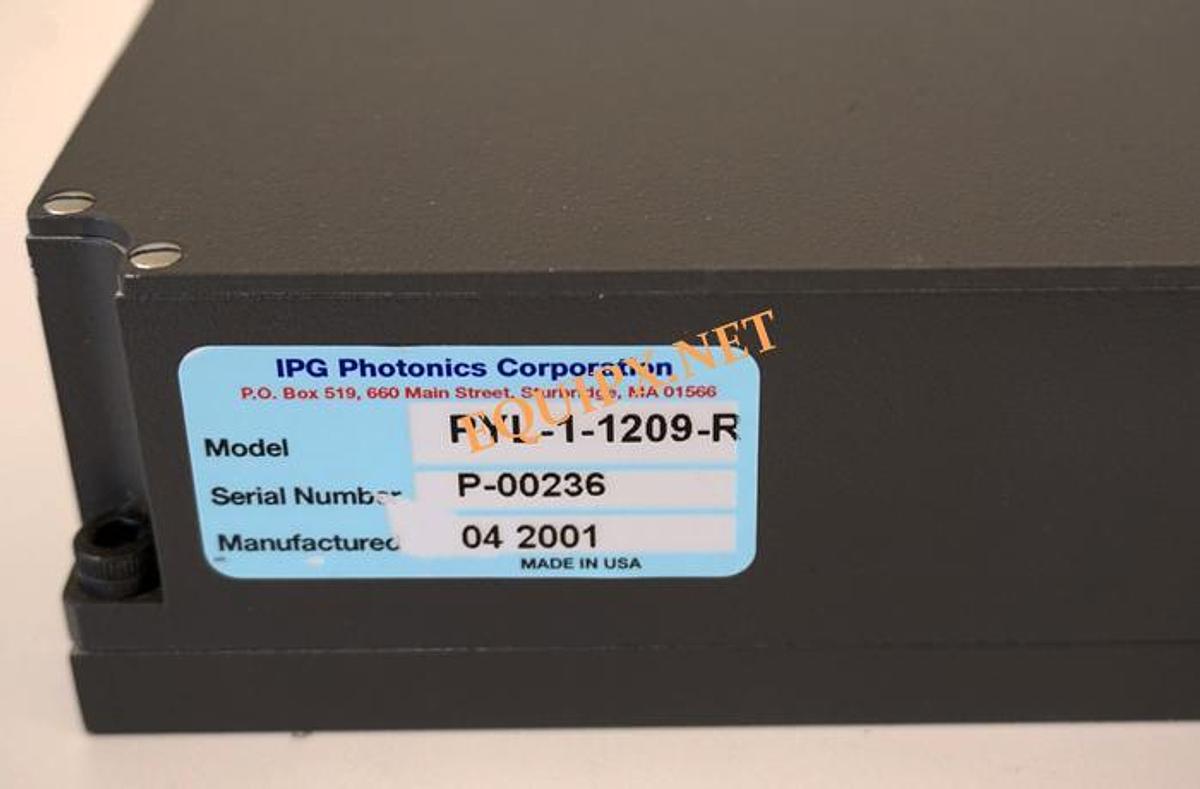

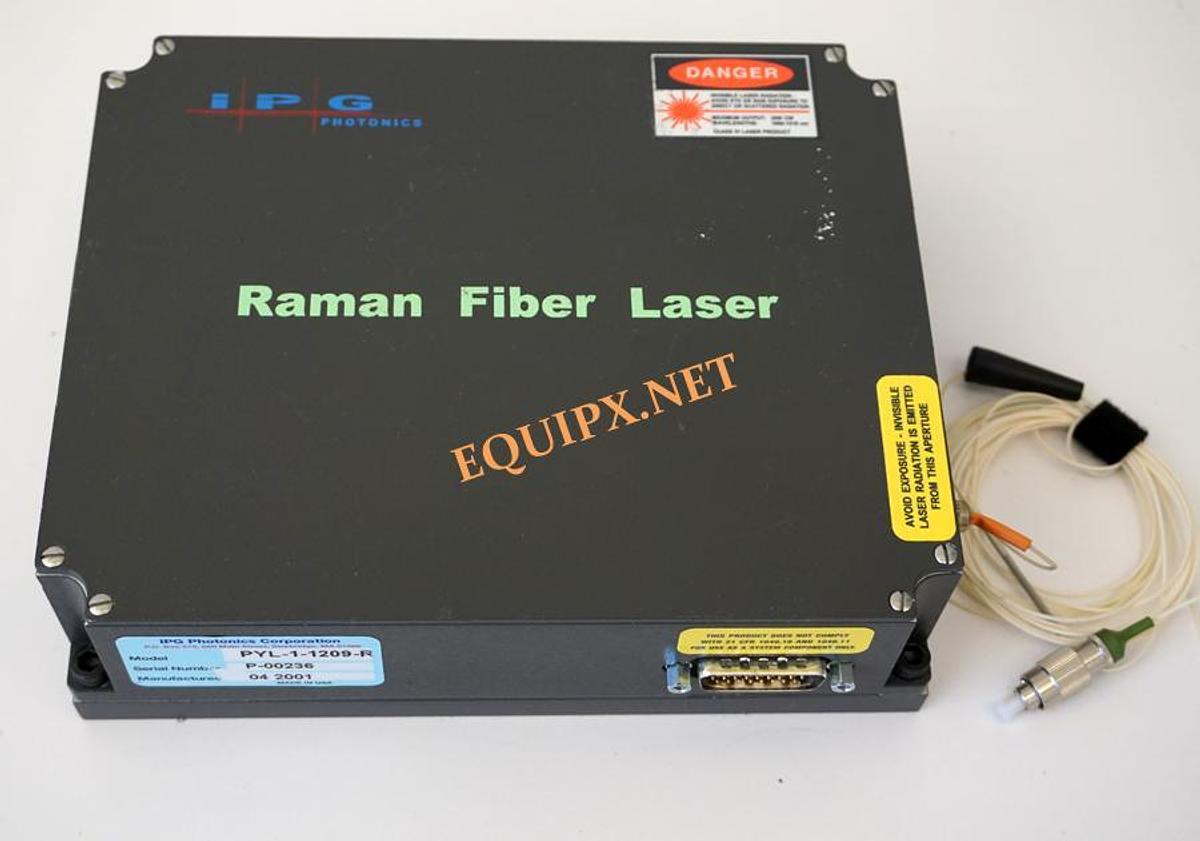

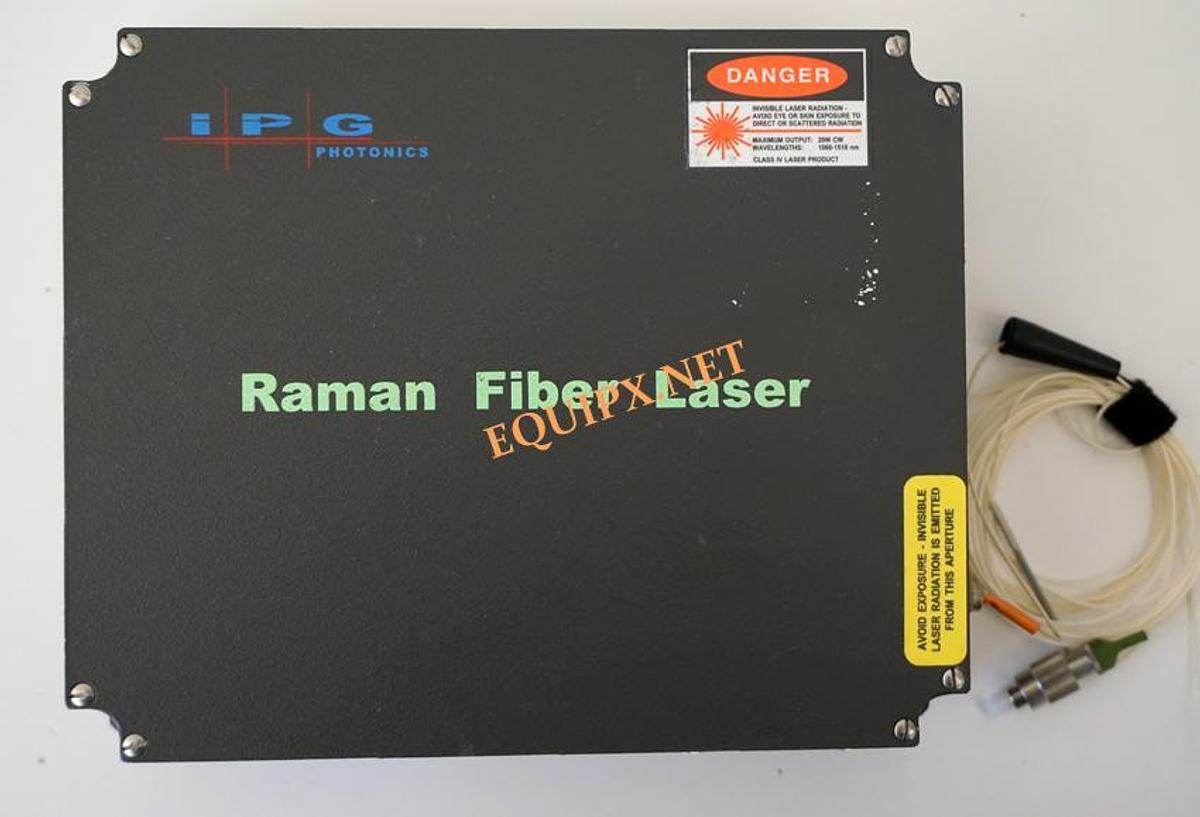

IPG Photonics PYL-1-1209-R CW Raman Laser with 1209nm output

Description

CW Raman laser uses Ytterbium fiber laser with a Raman wavelength shifter
single mode output at 1209nm
1 watt output power with random polarization
1.5nm bandwidth
PYL series are now the RL models

RLM and RLR Fiber Lasers, 1-100 W

Randomly Polarized Near IR Raman Fiber Lasers

RLM and RLR Series are a family of highly-efficient single-mode CW near infrared Raman fiber lasers with 1-100 W output power models. Customer can select a central wavelength in the range 1100-1800 nm. Raman fiber lasers are based on IPG's efficient and reliable fiber laser technologies and are offered as either compact OEM modules or end-user friendly 19” rack mountable units. The all fiber construction allows for full range of output power adjustment without any change in power stability and beam mode parameters. Linear polarization is available upon request. Raman fiber lasers are used pumping, telecom, sensing/detection systems and other scientific and commercial applications.

RLM

RLR

Applications

Features

Selectable Wavelength 1.1 - 1.8 μm	Air or Water Cooled
Output Power up to 100 W	Telecom Reliability
Single-mode Fiber Output	Compact Rugged Package
Optional Linear Polarization	Cost Effective Solutions

Optical Characteristics

RLM-XX-YYYY*
Central Wavelength Range, nm	1100 - 1800
Central Wavelength, nm	customer selected
Linewidth FWHM, nm	1 - 3 typ.
Mode of Operation	CW
Maximum Average Power**, W	standard options: 1, 5, 10, 20, 50, 100
Power Tunability, %	10 - 100
Power Stability***, %	±2
Optical Noise, % RMS (1 kHz - 1 MHz)	≤2 typ.
Suppression ratio, dB λ<λc / λ>λc	17 / 40 typ.
In Band Power, %	90 typ.
Polarization	Random, Linear option upon request
Beam Quality, M2	≤1.1

* RLM-XX-YYYY : Raman Laser Module, XX = power in Watts , YYYY = wavelength in nm

** Maximum output power may be limited by wavelength selection. Custom power levels are available.

*** Over 4 hours, T=const

General Characteristics

RLM	1 - 10 W	20 - 50 W	100 W
Module Dimensions (W × H × D), mm	150 × 226 × 60	270 × 255 × 75	265 × 435 × 148	355 × 407 × 54
Weight, kg	< 5	< 7	< 25	< 20
Cooling	Air	Water
Supply Voltage, VDC	24	48
Maximum Power Consumption, W	< 70	< 300	< 600
