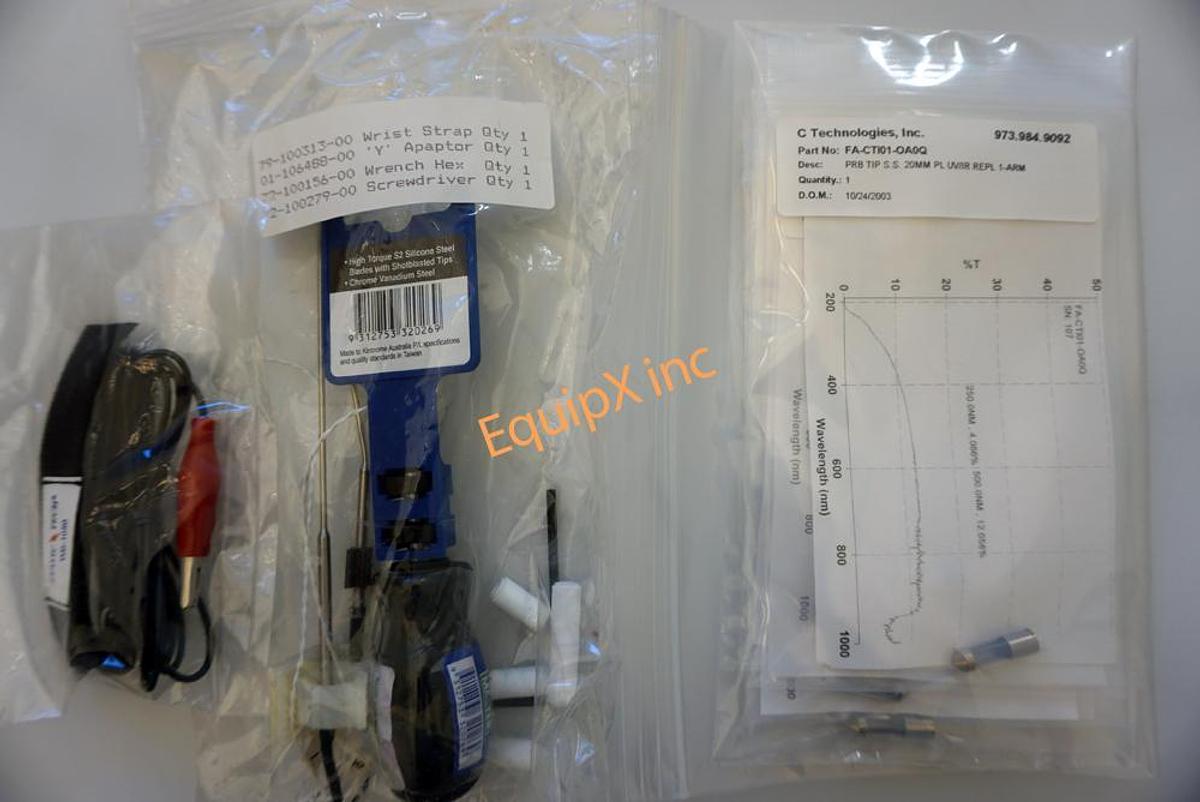

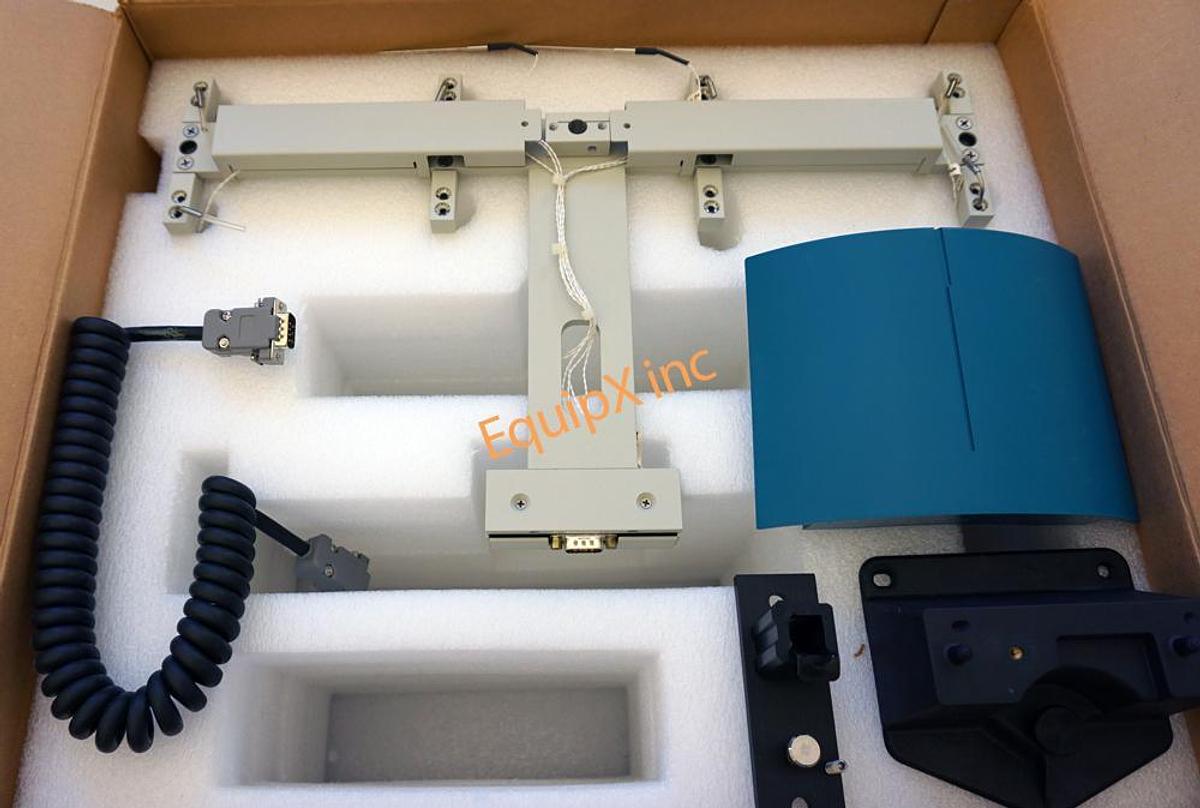

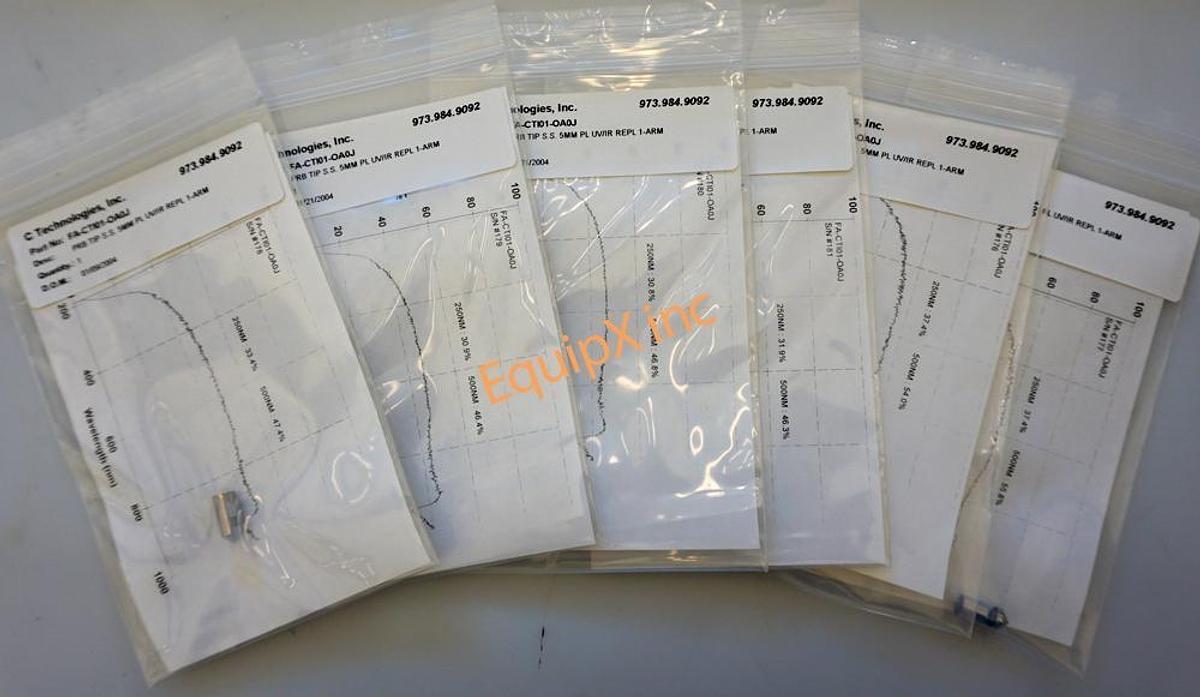

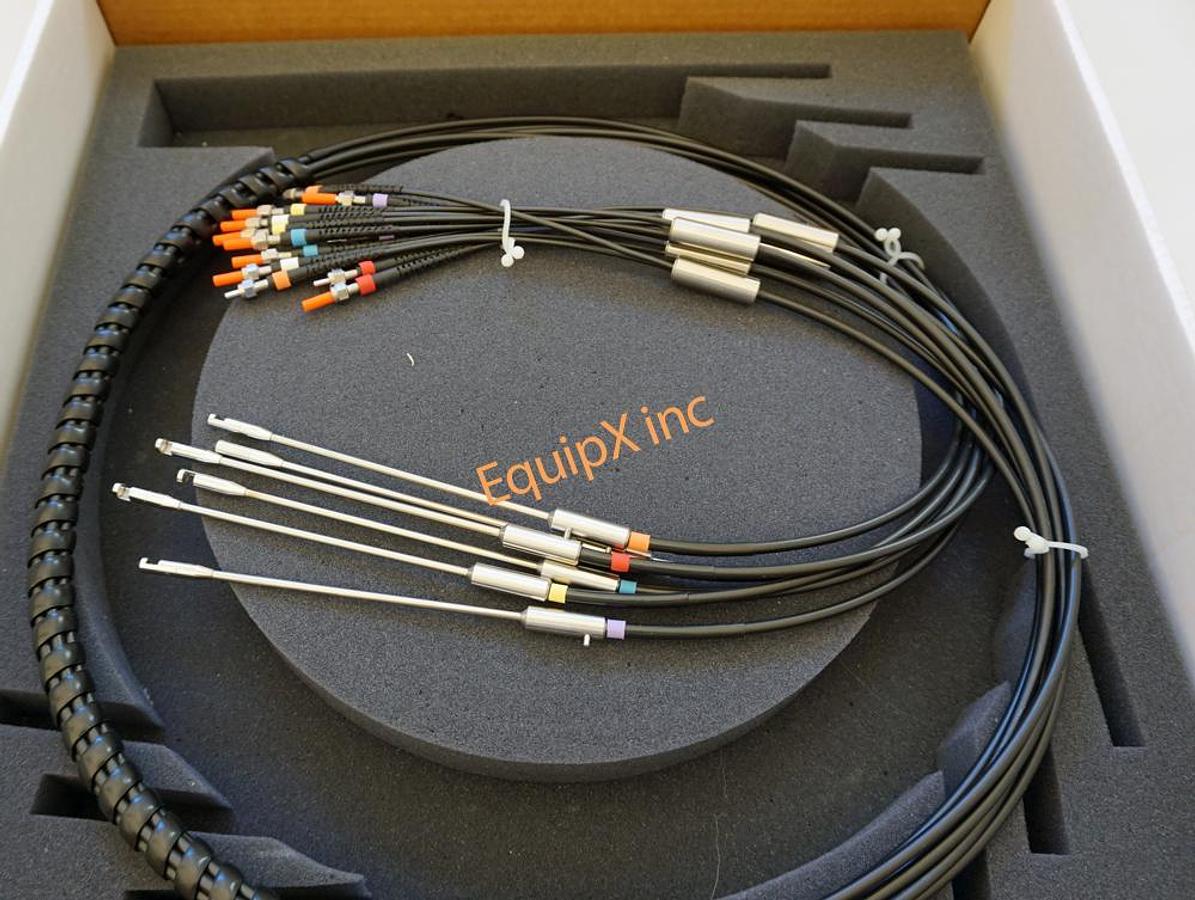

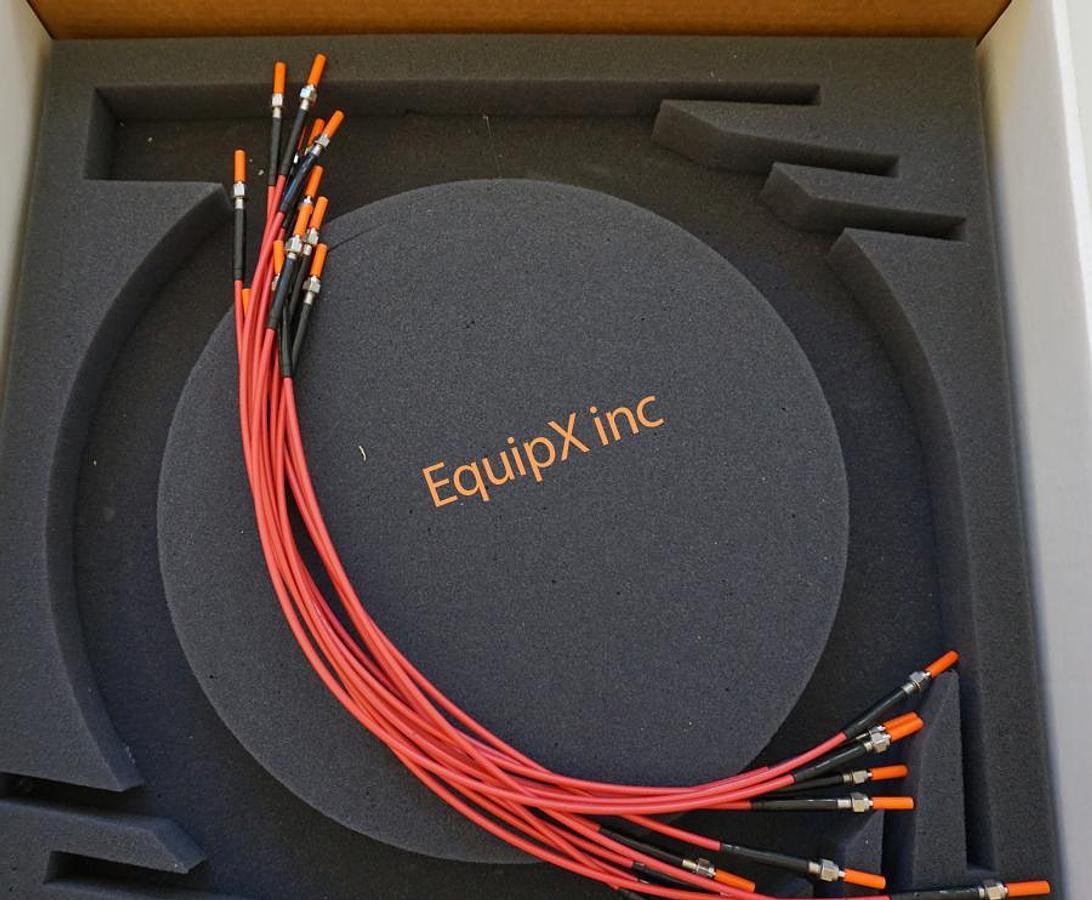

Hanson Research fiber optics dissolution system with C-Technologies analysis system (never installed)

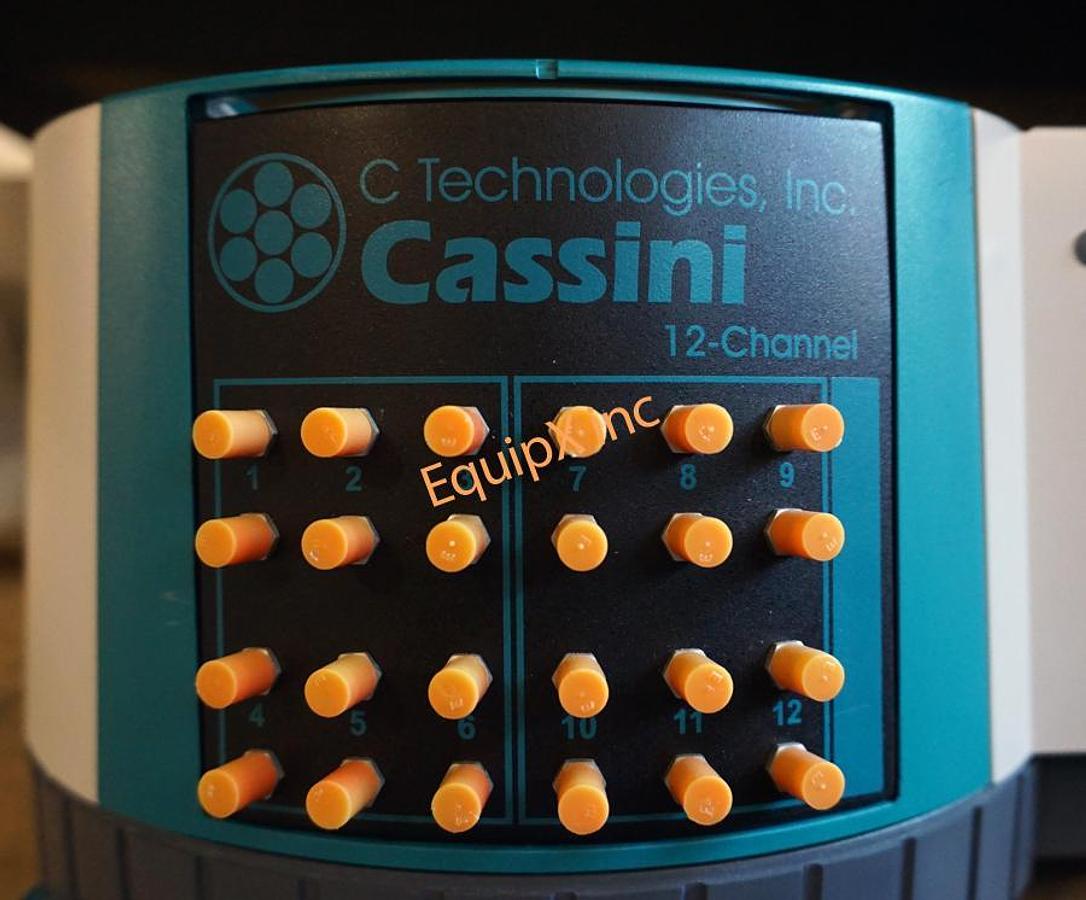

C-Technologies Cassini Fiber optic dissolution test sytem

Cary 50 spectrophotometer, Xenon flash lamp for 190nm-1100nm

Software not included

The Varian Cary 50 Scan UV Visible Spectrophotometer is designed to analyze microlitre volumes of chemical and biological samples. With a maximum scan rate of 24,000 nanometers per minute, the Varian Cary 50 can scan the whole wavelength range of 190 to 1100nm in less than 3 seconds. Additionally, the Varian Cary 50 features a data collection rate of 80 points per seconds and can measure samples up to 3 Abs to reduce the need for frequent dilution. The Varian Cary 50 super-concentrated beam makes it ideal for fibre optic work, offering excellent coupling efficiency and light throughput. The room-light immunity makes shielding of a fibre optic probe unnecessary.
Specifications:
- Monochromator: Czerny-Turner
- Grating: Holographic, 27.5 x 35 mm, 1200 lines/mm, blaze angle 8.6° at 240 nm
- Beam splitting system: Beam splitter
- Detectors: 2 silicon diode detectors
- UV-Vis limiting resolution: .5 nm
- Wavelength range: 190 to 1100 nm
- Photometric range: 3.3abs
- Spectral bandwidth: Fixed at 1.5 nm
- Signal averaging: 0.0125 to 999 s
- Maximum scan rate: 24,000 nm/min
- Dimensions (W x D x H): 50 x 59 x 20.5 cm
- Weight: 21 kg
