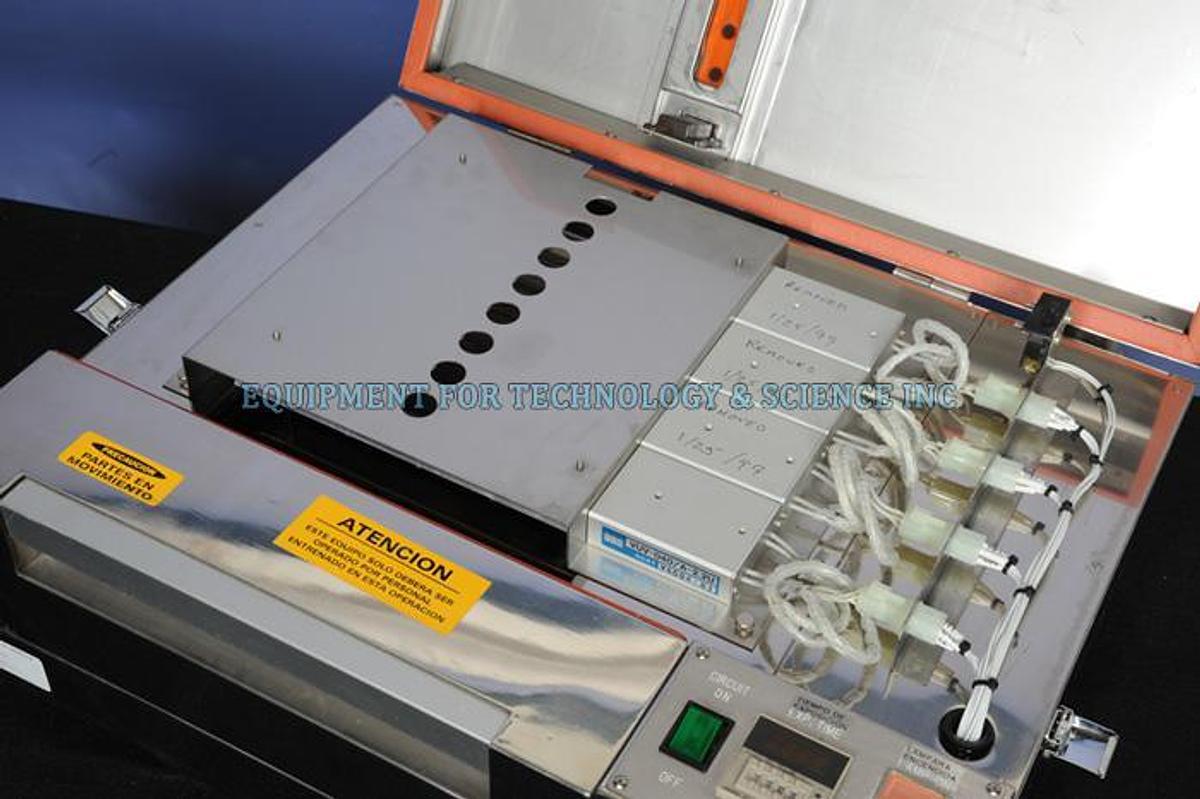

ORC VUM 3073-F00 UV Ozone Cleaner

ORC VUM 3073-F00 UV Ozone Cleaner

$5,950 (USD)

or
Call (408) 209-9278

Description

ORC UV ozone cleaner with 4 low pressure UV lamps, 200mm x 200mm process area, 0-99min digital timer, 15mm irradiation distance, 110v

manufacturer website:  http://translate.google.com/translate?hl=en&sl=ja&u=https://www.orc.co.jp/lineup/optics/16.html&prev=search

  • Equipped with a unique low-pressure UV lamp that causes less damage to the substrate and has a high ability to decompose organic substances.

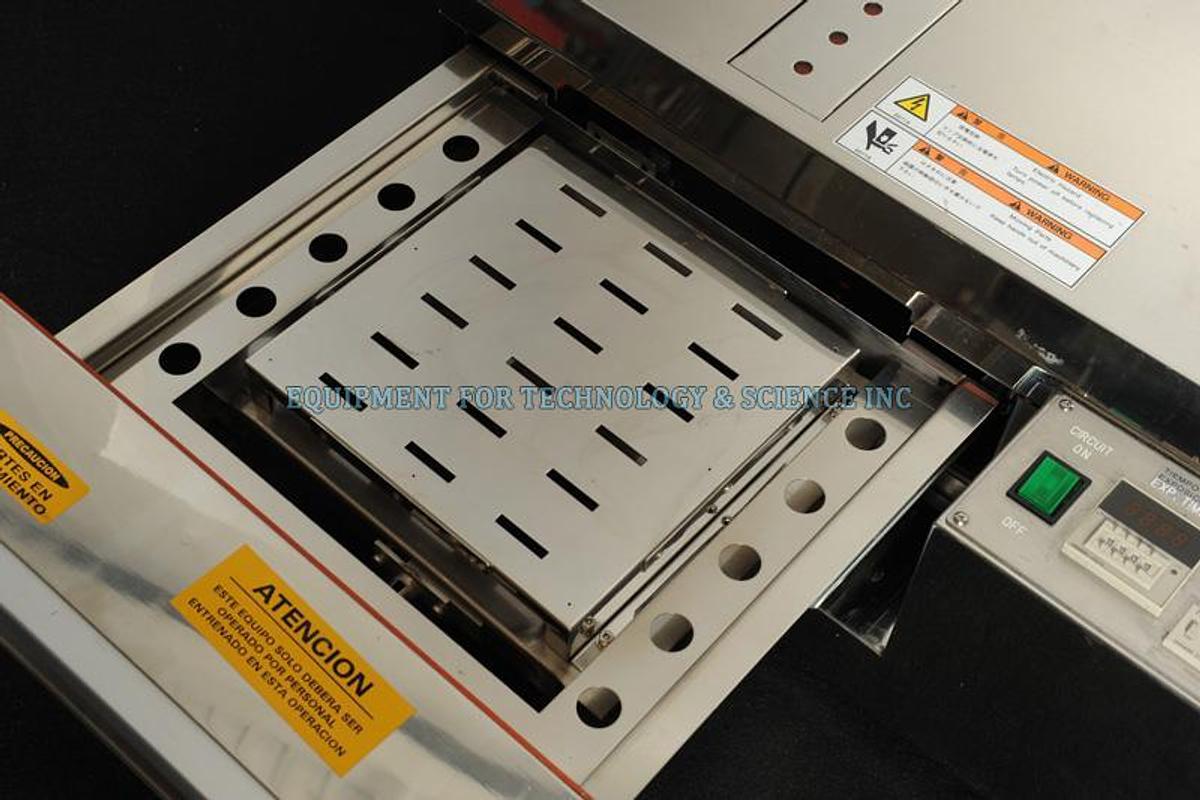

  • By using the mode that swings the substrate, the amount of UV light is evenly irradiated onto the substrate.
  • The board will not heat up much.
  • Both an irradiation method that cuts ozone and an irradiation method that purges nitrogen gas can be applied.



    • Product Specifications

    Specification

    ModelVUM-3073F
    Lamp usedLow pressure UV lamp
    VUV-040/A-2.2U・4 lights
    Irradiation distance15mm
    Irradiation area200W × 200D
    Irradiation time0~99min59sec(variable)
    exhaust ozone removalUse of filter for ozone decomposition
    External dimensions580(W) × 500(D) × 240(H)mm 25kg
