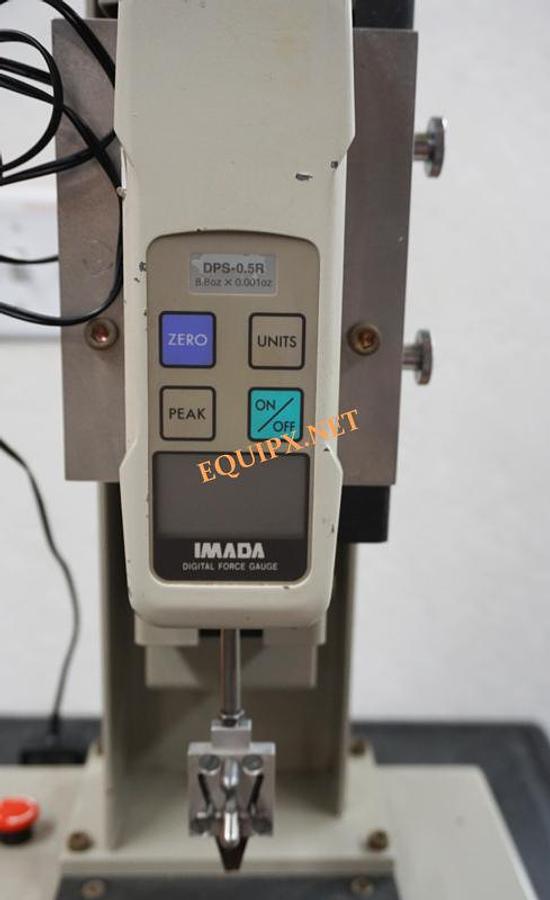

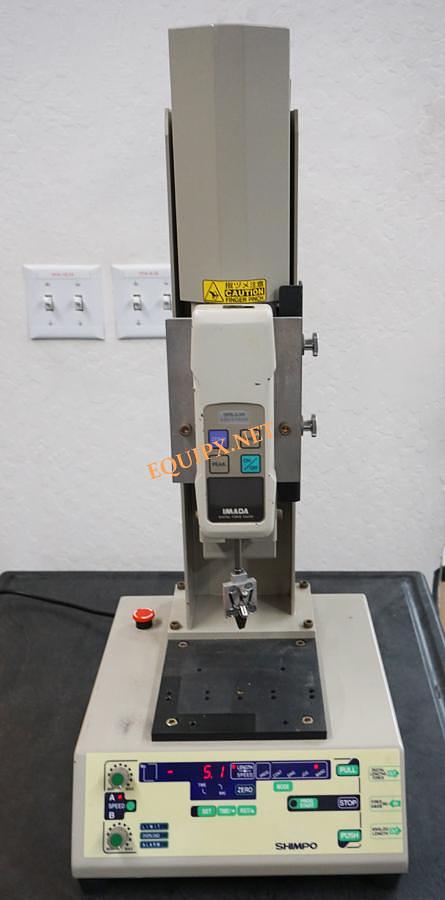

Shimpo Instruments FGS-100PVL, 110lbf Motorized Test Stand with Imada Digital Force Gauge

Motorized Test Stand FGS-100PVL (vertical - low speed) - 110 lb Capacity Specifications

Capacity 110 lb (50 kg)

Stroke 5.5" (140 mm)

Vertical Clearance 2.4"- 7.1" (61-181 mm) 5 steps, 1.18"/step (30 mm/step)

Travel 100PVH:Adjustable: 1.57-15.74"/min (40-400 mm/min) 100PVL:Adjustable: 0.39-3.93"/min (10-100 mm/min)

Display Four digit LED, 0.41" high (10.5 mm).

Reads in inches (0.01 resolution) or millimeters (0.1 resolution)

Power 120 VAC, 60 Hz

Weight 42 lb (19 kg)

Because speed, distance, and time are controlled by the user in either a vertical or horizontal model, our motorized stands can be configured for any application.

User programmable set points: speed, distance, stop time

High and low force set points user selectable through RS232C interface or directly through DFS gauge

Gauge overload protection

Analog distance outputs

Single cycle and continuous cycling capabilities

Compatibility with nearly all manufacturers’ gauges

All gauge functions can be communicated through stand via RS232 interface

Manually adjustable upper and lower limits
