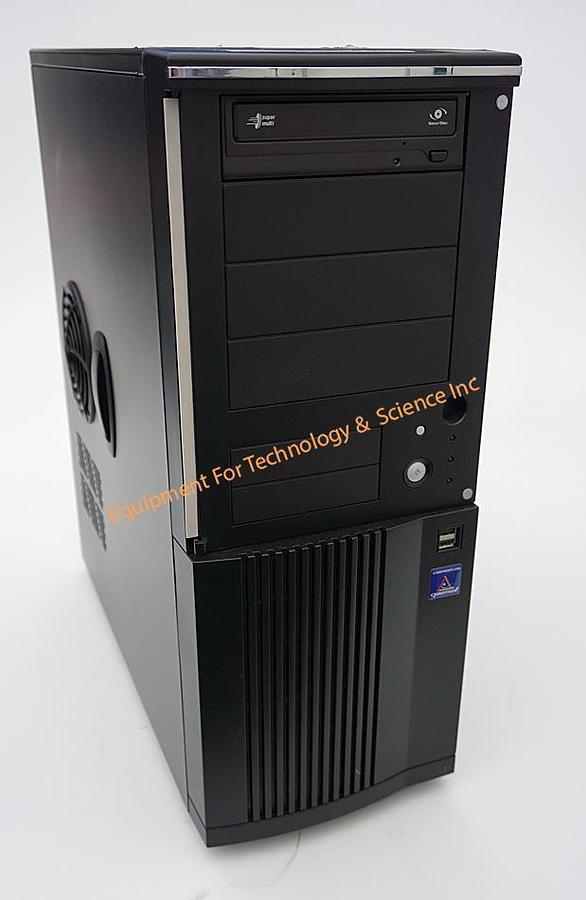

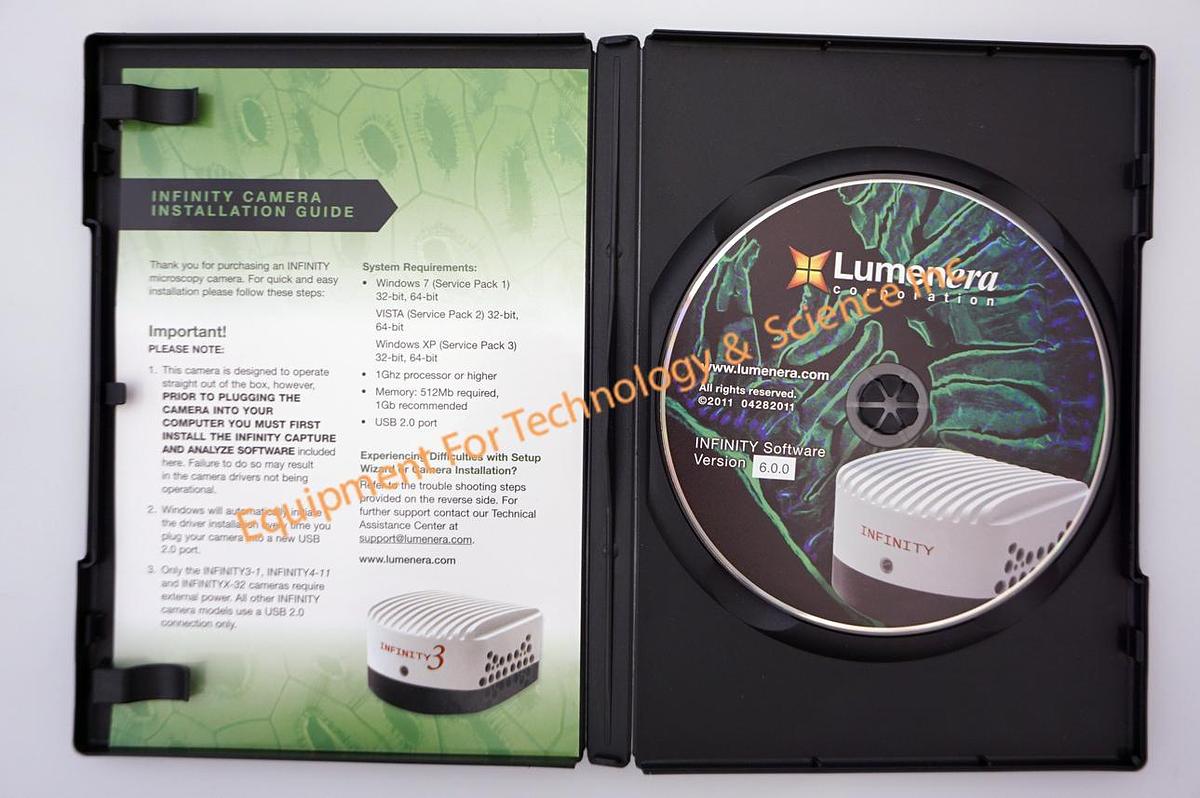

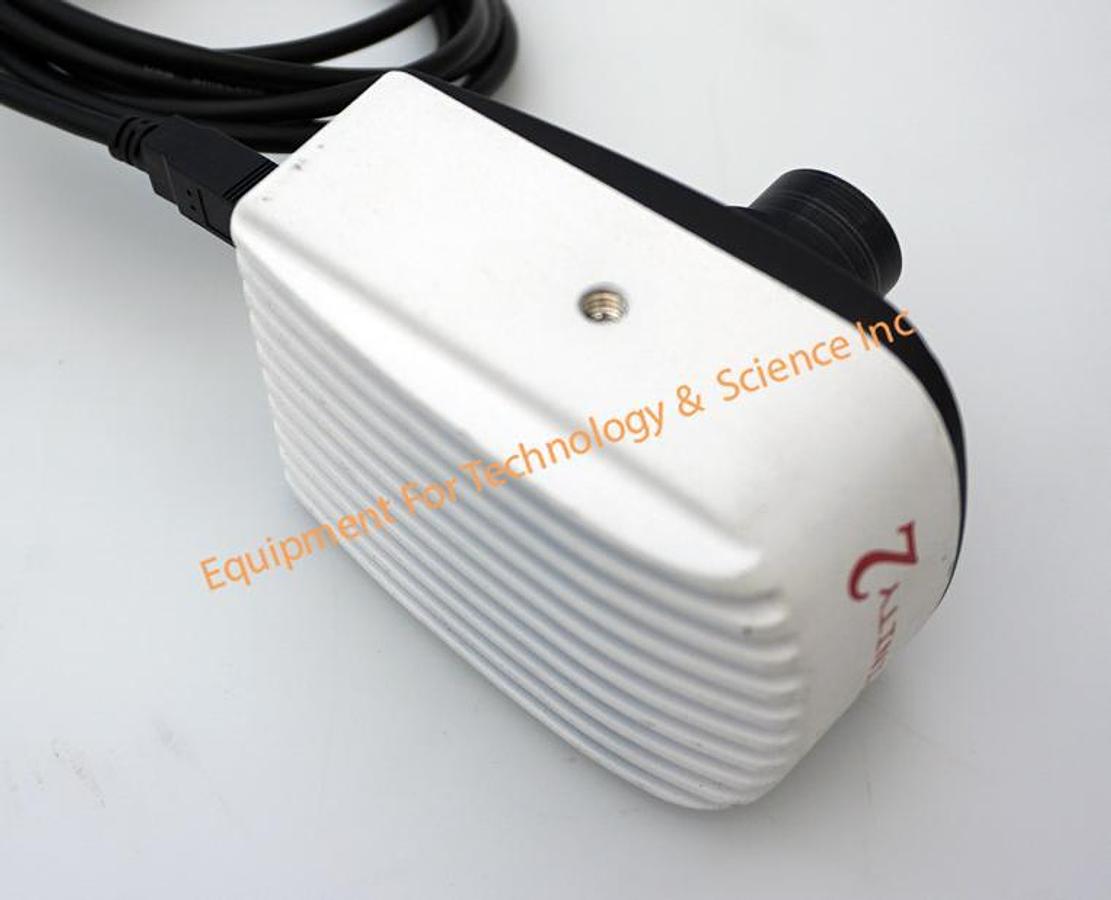

Lumenera Infinity 2-3C, 3.3 megapixel Digital CCD Camera with Windows 10 PC and software
Lumenera Infinity 2-3C, 3.3 megapixel Digital CCD Camera with Windows 10 PC and software
$2,650 (USD)
Description
High-speed USB 2.0 interface for ease of installation on any computer
The low noise characteristic 3.3 megapixel CCD image sensor Crisp color quality for the most demanding bright field, dark field, DIC microscopy applications including clinical pathology and cytology, histology, life science and geology
Full color sub-windowing allows for rapid focus and scanning of samples: 5 fps at full 2080 x 1536 resolution Select 8 and 12-bit pixel data modes
Product Highlights:
High-speed USB 2.0 interface for ease of installation on any computer
The low noise characteristic 3.3 megapixel CCD image sensor
Crisp color quality for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, histology, life science and geology
Full color sub-windowing allows for rapid focus and scanning of samples: 5 fps at full 2080X1536 resolution
Select 8 and 12-bit pixel data modes
Ordering Options:
INFINITY2-3C 3.3 Megapixel Color CCD Camera
Technical Specifications:
Camera Sensor
| Image Sensor | 1/1.8 Interline Sony ICX262 3.3 megapixel color progressive scan CCD sensor |
| Effective Pixels | 2080 x1536 |
| Frame Rate | 5 fps at full resolution, higher fps with binning and ROI |
| Digital Output | 8 and 12-bit |
| Read Noise | 12 e- rms |
| Readout Frequency | 22.5 MHZ |
| Dimensions (W x H x D) | 2.25 x 3.85 x 1.56 inches (enclosed) |
| Mass | ~300g |
| Power Requirement | USB bus power, or external 5VDC - 500mA |
| Power Consumption | ~2.5Watts |
| Operating Temperature | 0° C to +50° C |
| Operating Humidity | 5%-95%, Non-condensing |
| Integration Time | 1/1000 to 16 sec. |
| Shutter | Interlaced |
| ROI | User Selectable through mouse click and drag |
| Auto Exposure |
