Dual-channel capability permits simultaneous measurements of amplitude and phase.
Digital display readout in engineering units eliminates the need to convert volts to displacement.
Out-of-range indicator notifies the user if the target moves out of the linear range.

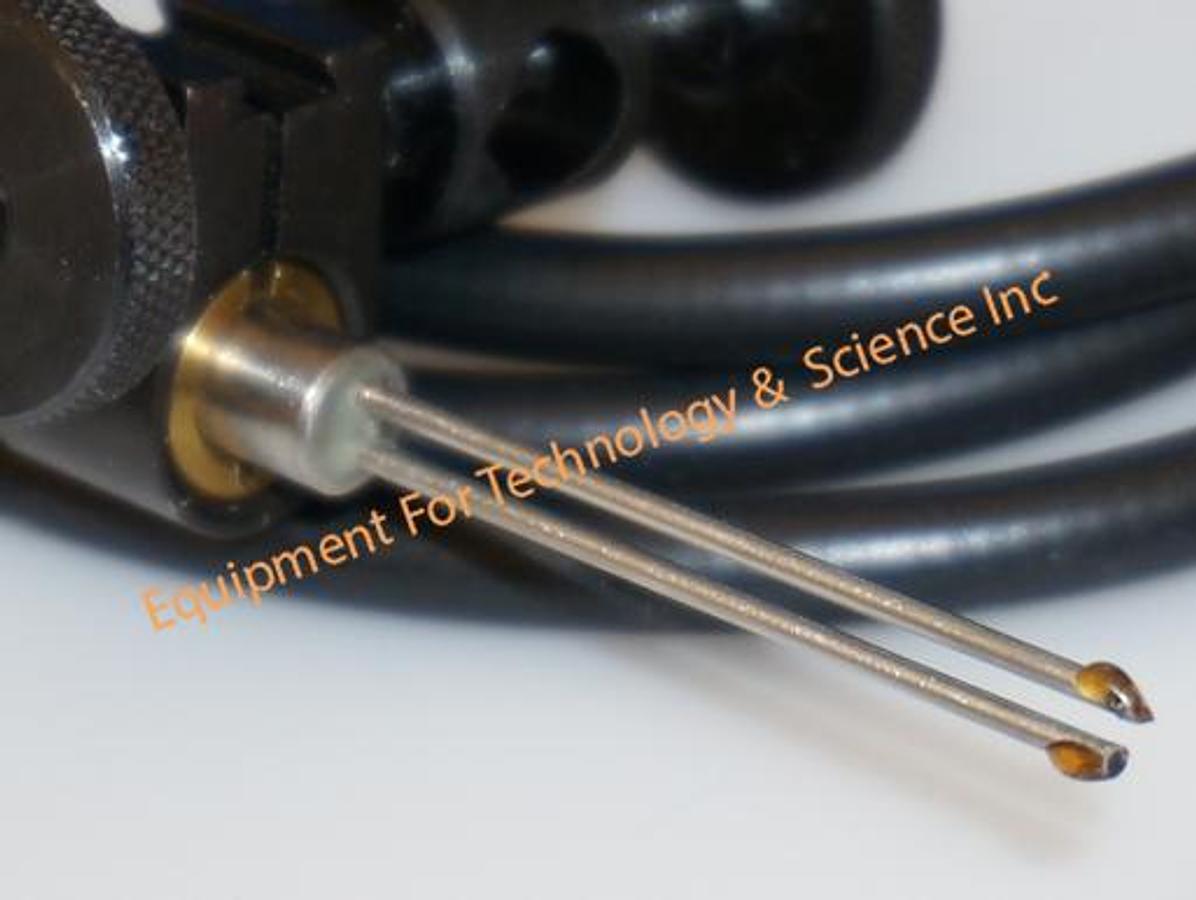

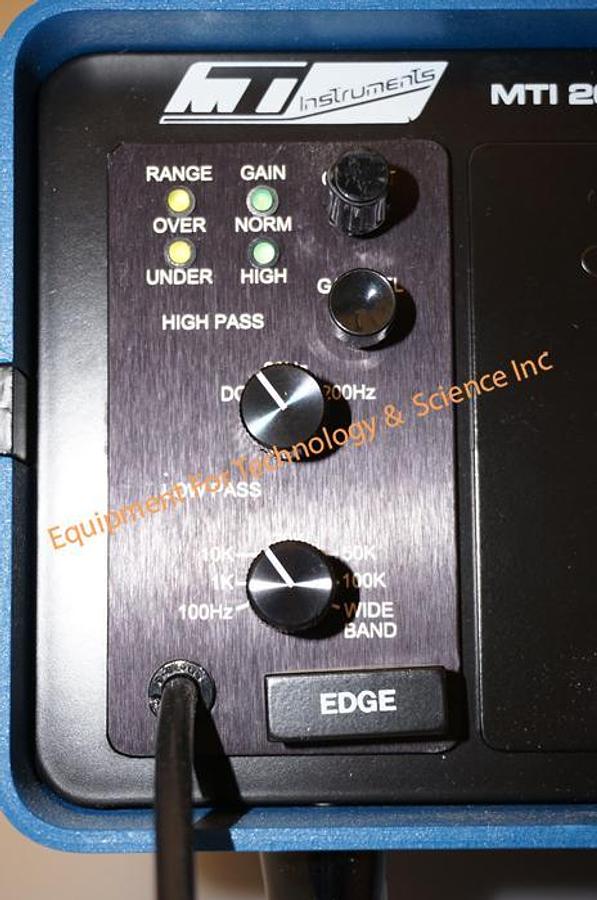

Interchangeable probe modules allow the user to select from seven standard fiber-optic probe designs, providing 14 different standard measurement ranges and resolutions.
High-resolution module resolves to 0.1 µin. standard or 0.01 µin. (2.5A°) optional. With external filtering, 0.004-µin. (0.1nm) resolution is possible.

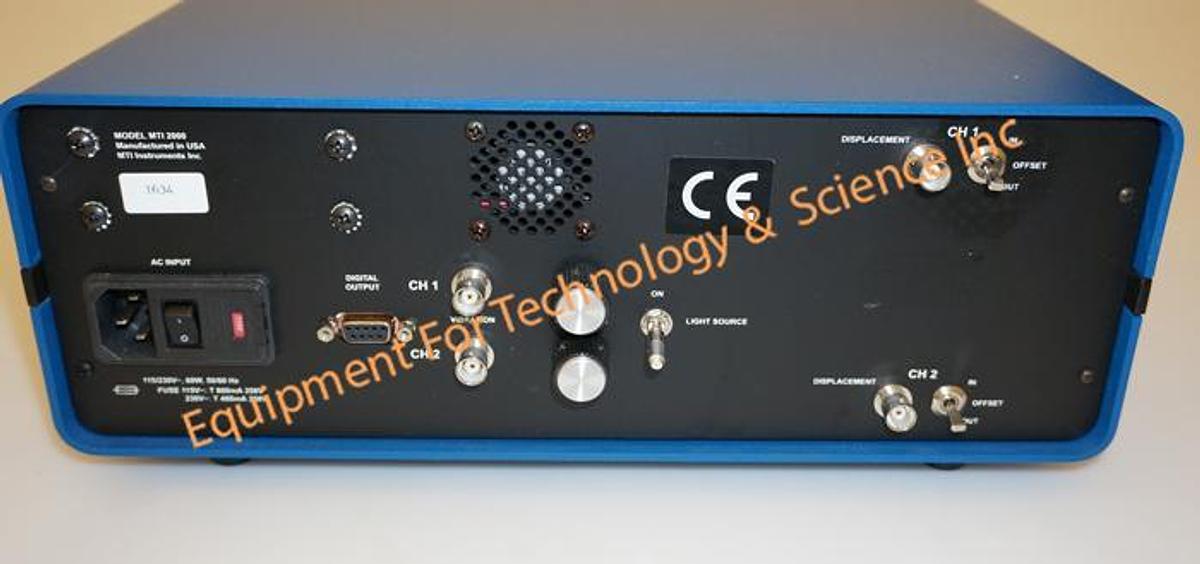

Standard 0-to-10 V dc analog real-time output is compatible with most signal conditioning equipment.Â
