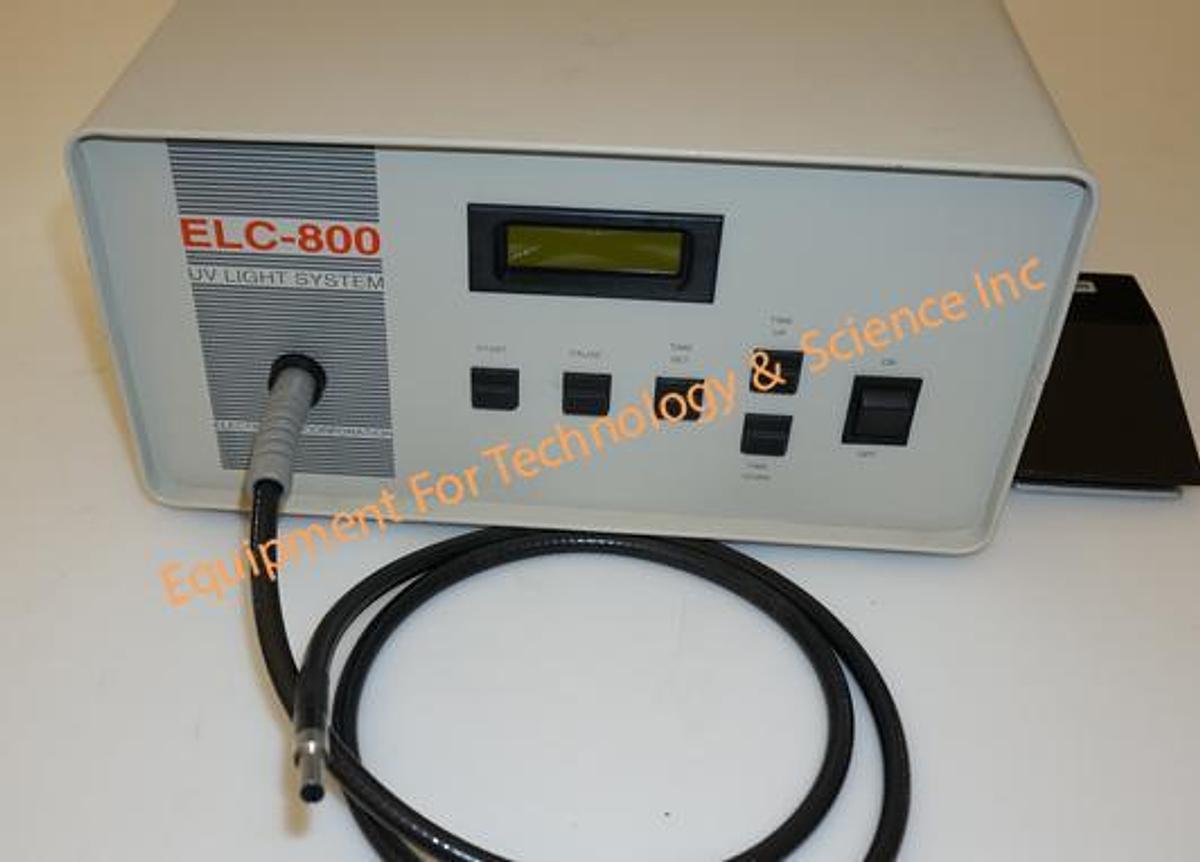

Electro-Lite Corp ELC-800 UV light curing system

The ELC-800 provides greater than 8W/cm ² of UV energy at 365nm.

When interfaced with a remote PC, screen instructions guide the operator through sequences of dedicated commands, including input for user password, product identification, date and time of production run,

Features such as lamp ignition, lamp ready signal, complete exposure control, can be controlled by a remote PC.

Easy to read LCD display features lamp ignition, lamp ready, lamp life hour meter, exposure time,

UV output by means of a built-in radiometer, lamp replacement notice, and overheat conditions.

SpecificationsInput Voltage: 100-120V AC, 60Hz,1.5A 220-240V AC, 50Hz,1.0AInput Power: Auto Ranging, 90-264 volts AC, 47 - 63Hz.

Lamp: High Pressure 200 Watt DC Short arc mercury vapor.

Includes 5mm x 1500mm (59") light guide and footpedal

Output: Greater than 7W/cm² (minimum with 5mm x 1500mm Light guide)
