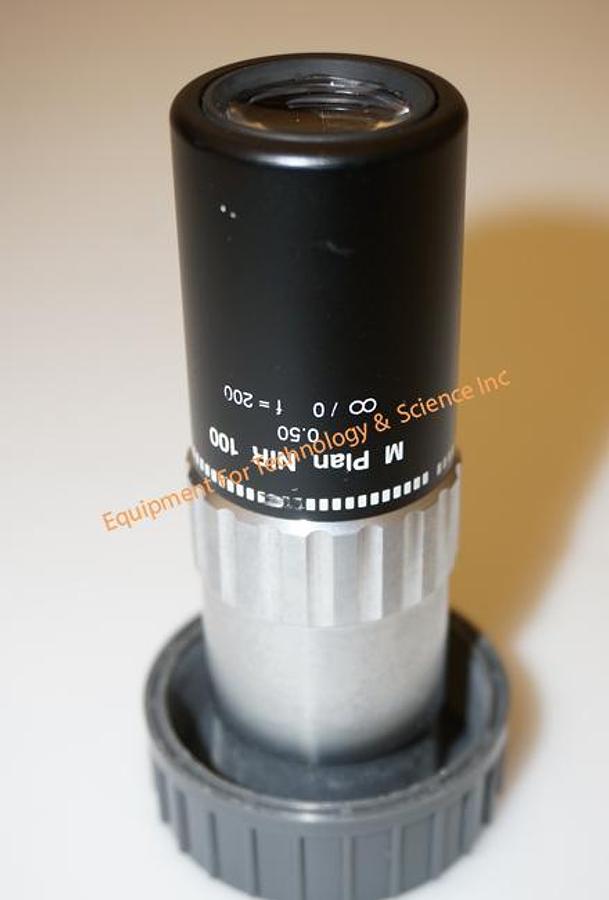

Mitutoyo M Plan NIR-100x (378-826) Objective

Description

pn 378-826, long working distance, Visible to NIR applications, color corrected from 480nm-1800n, long working distance of 12.0mm, 0.5NA, 100x magnification, pn 378-826

100X Mitutoyo Plan Apo NIR Infinity Corrected Objective, #46-406

Magnification:

100X

Numerical Aperture NA:

0.50

Compatible Tube Lens :

Focal Length: 200mm

Depth of Focus (Î¼m):

1.1

Field of View, 1/2" Sensor:

0.06 x 0.05mm

Field of View, 18 Diameter Field Eyepiece (mm):

0.18

Field of View, 2/3" Sensor:

0.09 x 0.07mm

Field of View, 24 Diameter Field Eyepiece (mm):

0.24

Focal Length FL (mm):

2.0

Length excluding Threads (mm):

83.0

Manufacturer:

Mitutoyo

Maximum Diameter (mm):

34.0

Resolving Power (Î¼m):

0.6

Style:

Infinity Corrected

Type:

Microscope Objective

Weight (g):

335.00

Working Distance (mm):

12.0

Wavelength Range (nm):

480 - 1800

Specifications
