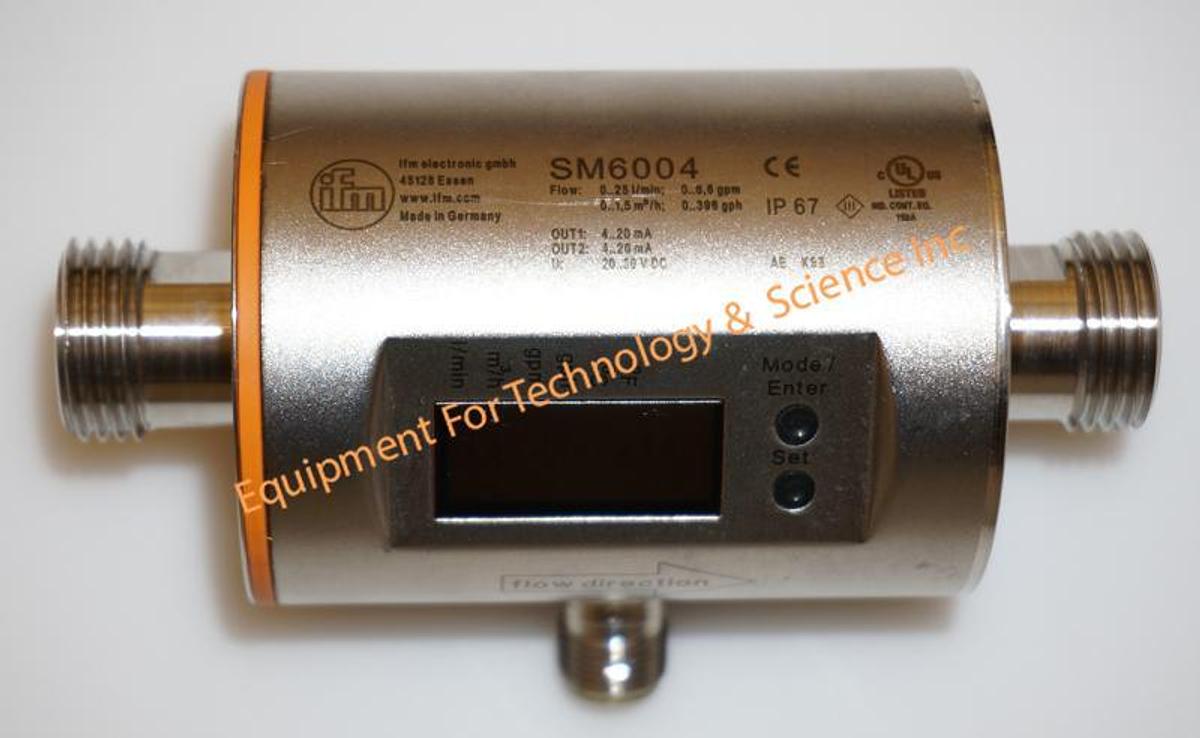

IFM SM6004 Magnetic Inductive Flowmeter 0.1 to 25GPM

IFM SM6004 Magnetic Inductive Flowmeter 0.1 to 25GPM

$325 (USD)

or
Call (408) 209-9278

Description

Magnetic inductive flowmeter including 2m cable.  Requires 24VDC power supply

  • Item: Electronic Flowmeter
  • Housing Material: 316L Stainless Steel
  • For Pipe Size: 1/2 in
  • Connection Size: 1/2 in
  • Flow Material: Conductive Media
  • Connection Type: BSPP
  • Max. Pressure: 232 psi
  • Max. Viscosity: 370 SUS
  • Wetted Materials: 316L Stainless Steel, FKM, PEEK
  • Flow Range: 0.1 to 25 gpm
  • Fluid Temp. Range: -4 Degrees to 176 Degrees F
  • Flow Range (LPM): 0.1 to 25
  • Output Type: Programmable
  • Length (In.): 4 in
  • Sensor Type: Magnetic
  • Fitting Size (In.): 1/2
  • Ambient Temperature: 14 Degrees to 140 Degrees F
  • Fluid Temp. Range (Deg. F): -4 to 176
  • Accuracy (%): +/-2
  • Display Type: LED
  • Display Units: cu m, L, Lpm, M3PH
  • Pressure Rating (PSI): 232
  • Country of Origin (subject to change): Germany

    • see PDF below for complete specs
