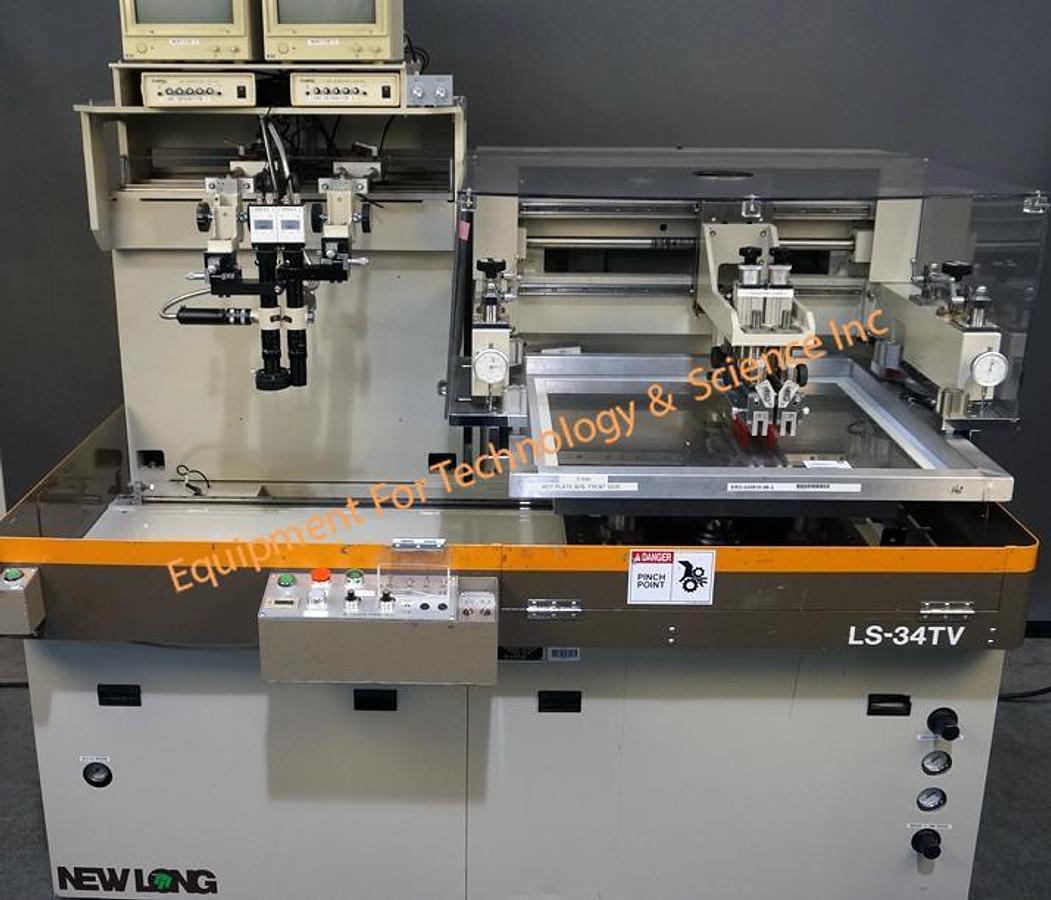

| LS-34TV Screen Printer |
The LS-34TV Screen Printer by New Long is built with efficiency in mind. This high precision screen printer is most suitable for glass board, print board, and thermal applications
Excellent rigiditySTabilized high precision printingTV manual alignment gives you easy set-upDate of manufacture 12/1999sn 043-1393 | |
|
| LS-34TV Main Features |

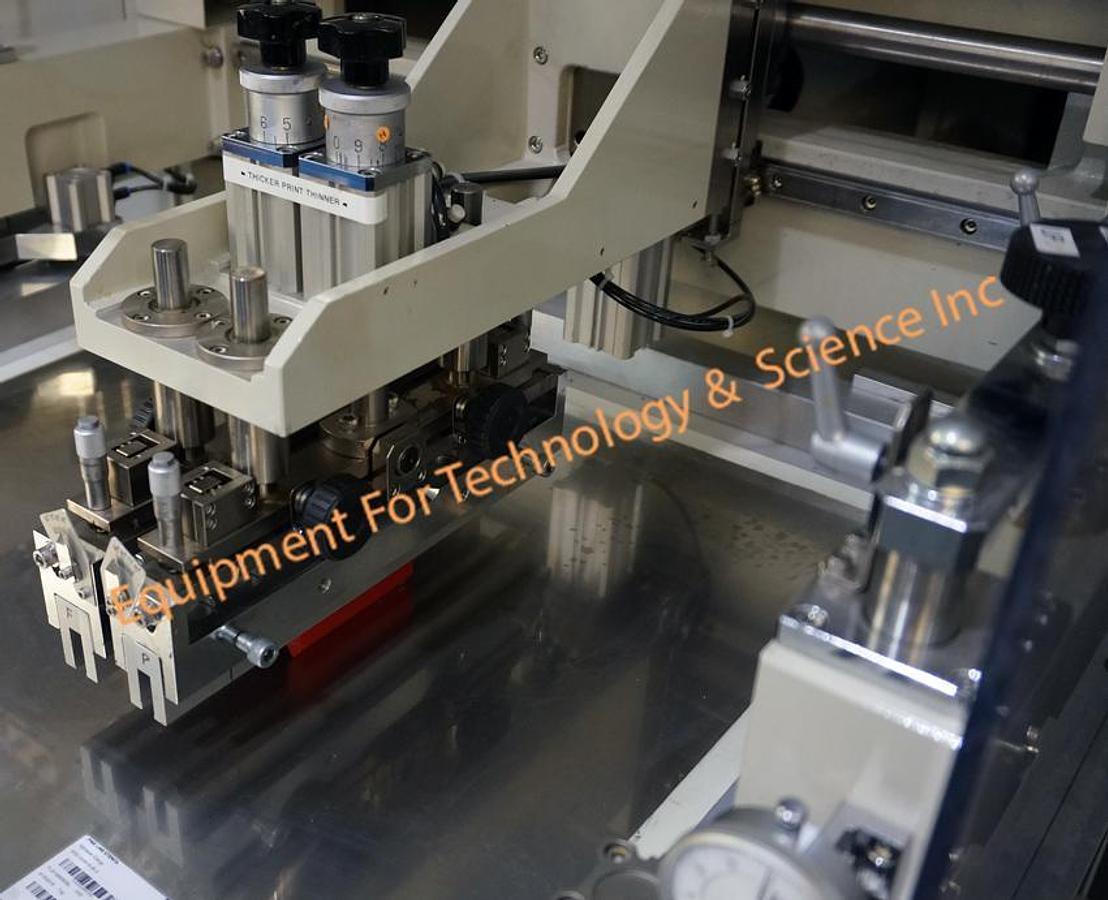

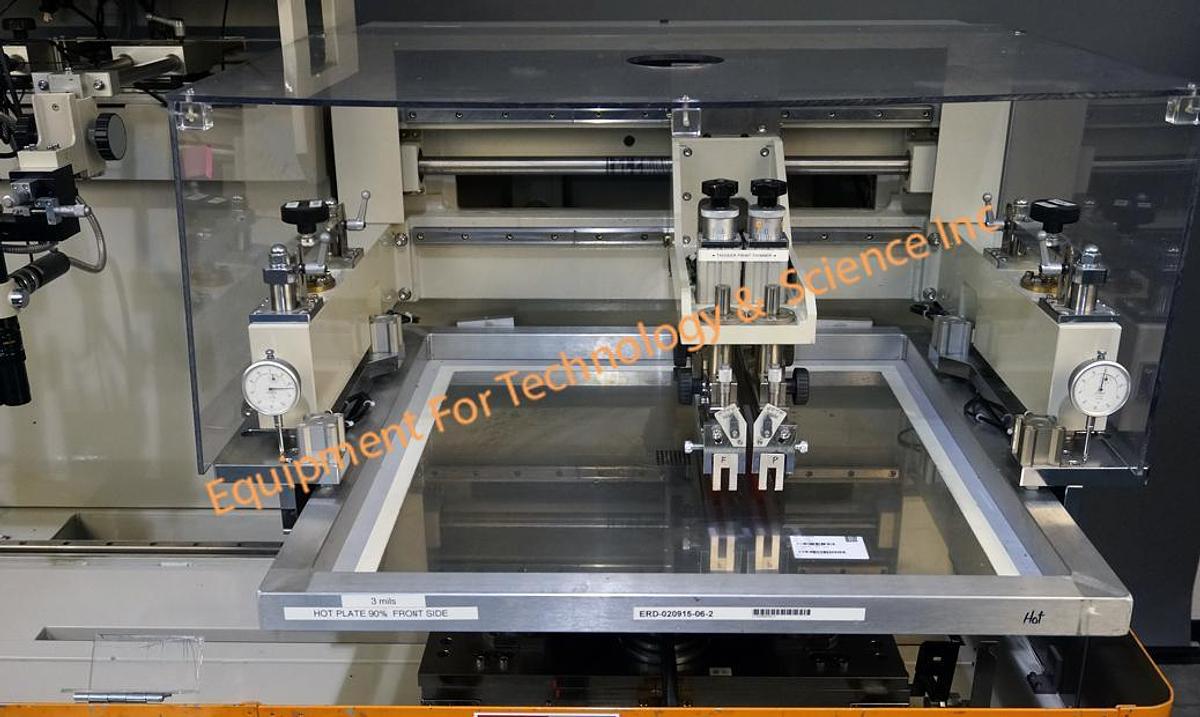

TV's visual alignment gives the operator the high precision alignment at an accelerated set-up time.A high-rigid frame ensures stable and high precision printing.The entire squeegee head is lifted by SW operation for easy removability of the squeegee and for easy remove of the screen frame.High-speed printing is possible at cycle time of 7.5 sec. (At squeegee speed 270 mm/sec).The screen frame is easily inserted by sliding action and it can be installed by one-touch control.Easy selection of various printing mode.Standard printing.Double squeegee mode.The table moves horizontally from side to side, so safe and compact machine layout becomes possible.Metal mask stencils can be used for S.M.T. application. |
| LS-34TV Specifications |

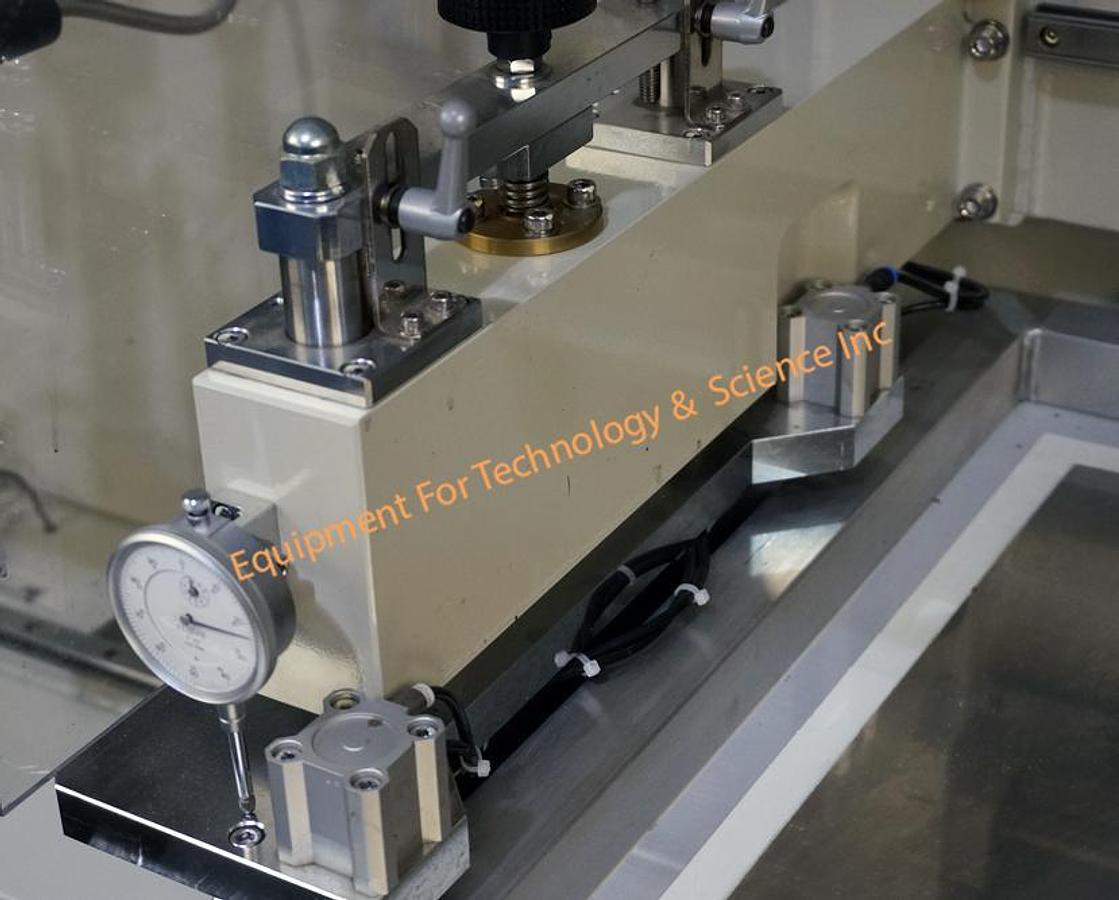

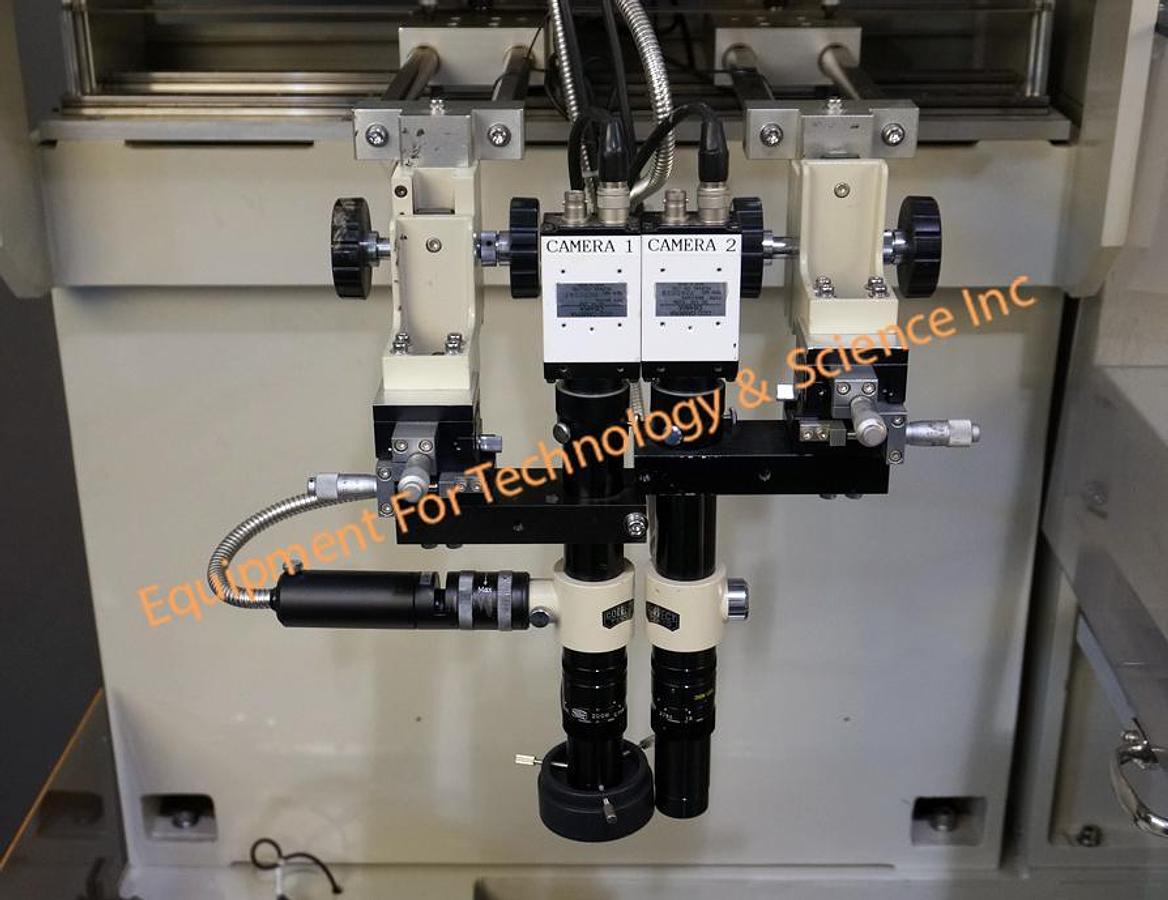

Printing partsPrinting area 300x400 mm(Max)Screen frame size 550x650 mm650x750 mmTable size 450x550 mmSqueegee speed 40~300 mm/secPrinting pressure 0~0.4 MPa(Variable)Positioning (Fine adjustment of screen frame) 1)X,Y direction 10 mm2)Theta direction ±3°Clearance adjustment Z direction 20 mmMachine repetition precision ±0.01 mmPower requirement AC200V 3 phases1.0 KWAir pressure 0.5 MPa or more20 L/minute(ANR)Machine's weight about 800 kgMachine's dimensions (W)1840x(D)1080x(H)1320 mmAlignment partsCamera Use CCDOptical field range 3x4 mm (at 40 times) |
