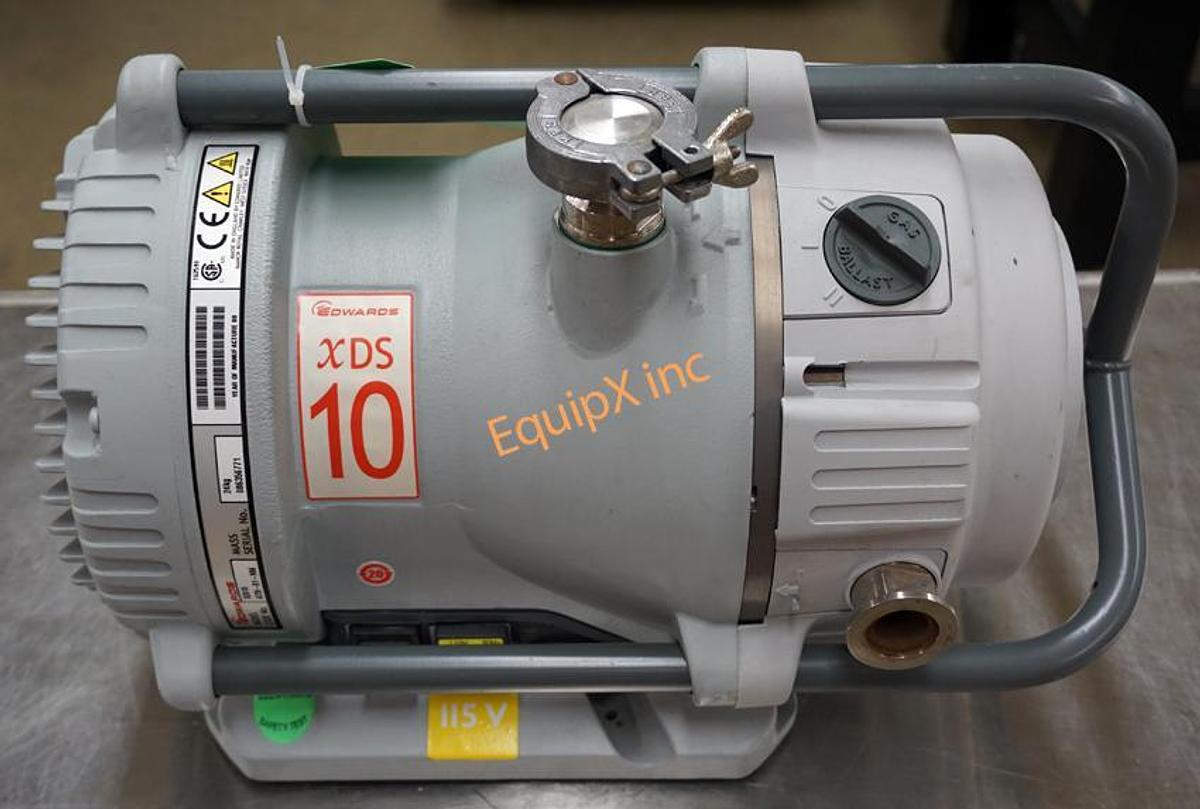

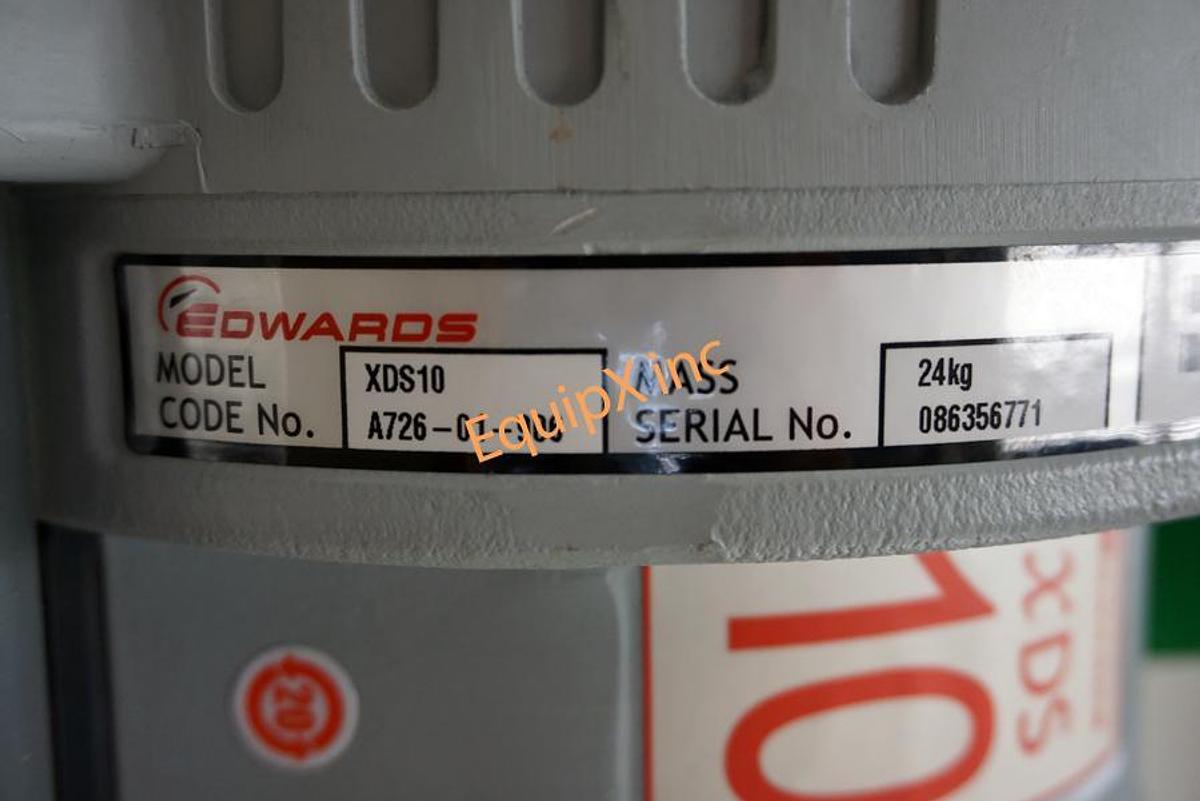

Edwards XDS10 scroll pump 6.5CFM@ 60hz, Guaranteed to <10microns
Edwards XDS10 scroll pump 6.5CFM@ 60hz, Guaranteed to <10microns
$4,150 (USD)
or
Call (408) 209-9278
Description
Technical Data
| 60Hz | 13.4 m3h-1 / 7.9 ft3min-1 |
| Peak pumping speed | |
| 60 Hz | 11.1 m3h-1 / 6.5 ft3min-1 |
| Ultimate vacuum (Total pressure) | |
| 60 Hz | 6 x 10-2 mbar / 4.5 x 10-2 Torr |
| Max inlet pressure for water vapour | 35 mbar / 23 Torr |
| Max water vapour pumping rate | 70 gh-1 |
| Max water vapour pumping rate | 200 gh-1 |
| Max allowed outlet pressure | 1 bar gauge / 14 psig |
| Max allowed inlet and gas ballast pressure | 0.5 bar gauge / 7 psig |
| Motor power 1-ph and 3-ph | 0.3kW |
| Power connector 1-ph | IEC EN60320 C13 |
| Nominal rotation speed 50/60 Hz | 1500 / 1800 rpm |
| Weight | 24.5 kg / 54 lb |
| Inlet flange | NW25 |
| Exhaust flange | NW25 |
