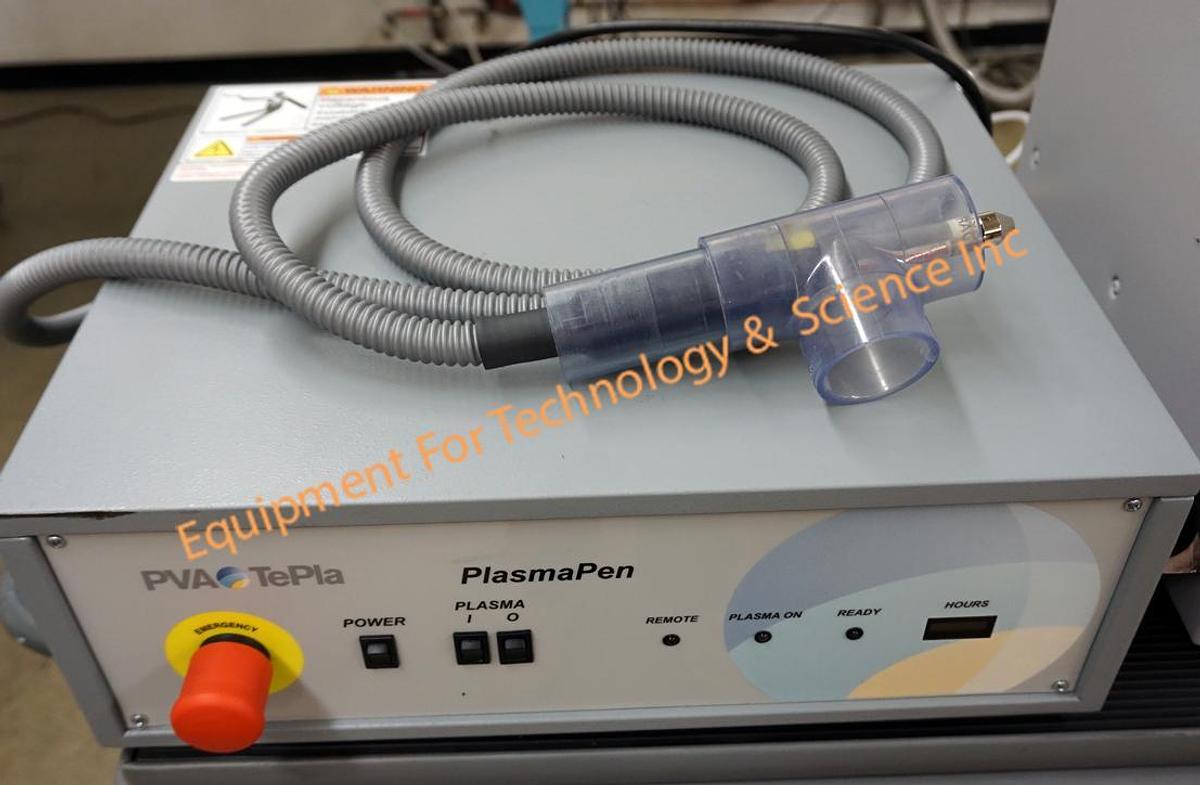

The Tepla atmospheric plasma pen generates high density atmospheric plasma for surface treatment
Technical Data
Width of treatment band 3 - 10 mm (configurable)Service Interval 1500 hours (gas dependent)Standard Cable Length 3 m - 6 m (9 - 18 ft.)
Power RequirementsElectricity 115 VAC, 1 phase, 60 Hz (4 amps max)
100 or 230 VAC, 1 phase, 50/60 Hz (4 amps max)
Compressed Air Compressed air (6 Bar, 88 psi), 1275 liters/hour (45cf3/h)Other Gasses N2, N2/H2, O2, CO2, HeWeight 25 kg / 55 lbs
Optional: BOFA AD-350 fume extractor: $1400.
223 CFM Digital flow control systemBlower with high airflow and pressureLow cost replacement filtersLow noise levelsFilter condition indicatorDeepPleat flter technologyAdvanced Carbon Filter TechnologyReverse Flow Air TechnologyHEPA Filter Technology17-Point SureCheck Quality Standard

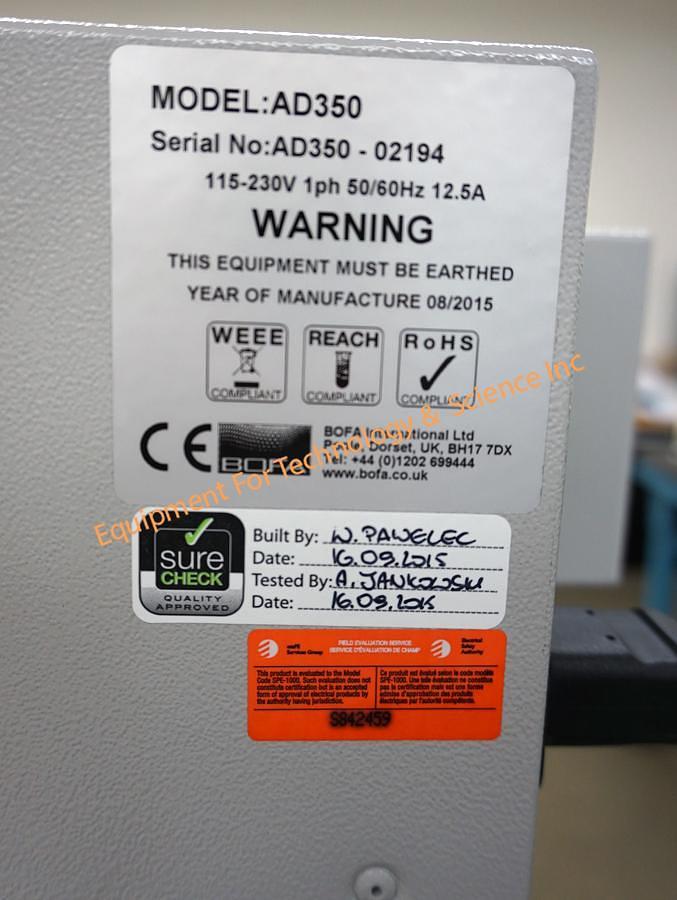

Model AD-350Voltage: Auto-Sensing 90V - 257VDimensions (HxWxD) 590 x 375 x 375 mm 23.2 x 14.8 x 14.8Cabinet Construction Brushed stainless steel / Powder coated mild steelAirfow / Pressure 380m3/hr / 96mbar 223cfm / 96mbarElectrical Data 115-230v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kwNoise Level < 60dBA (at typical operating speed)Weight 40kg 88lbsApprovals CE UL
Surface Media Area 6m2 approxFilter Media Glass FibreFilter Media Construction 100mm DeepPleat Construction with Webbing SpacersFilter Efficiency (95% @ 0.9 microns)
HEPA Filter Media Glass FibreHEPA Media ConstructionMaxi Pleat Construction with Webbing SpacersFilter Housing Zintec Mild SteelTreated Activated Carbon 9 kgs (19.8 lbs, specific blend for laser fumes)Filter Efficiency 99.997% @ 0.3 micronsSee PDF link below for specifications and description of Tepla Pen and BOFA fume extractor
