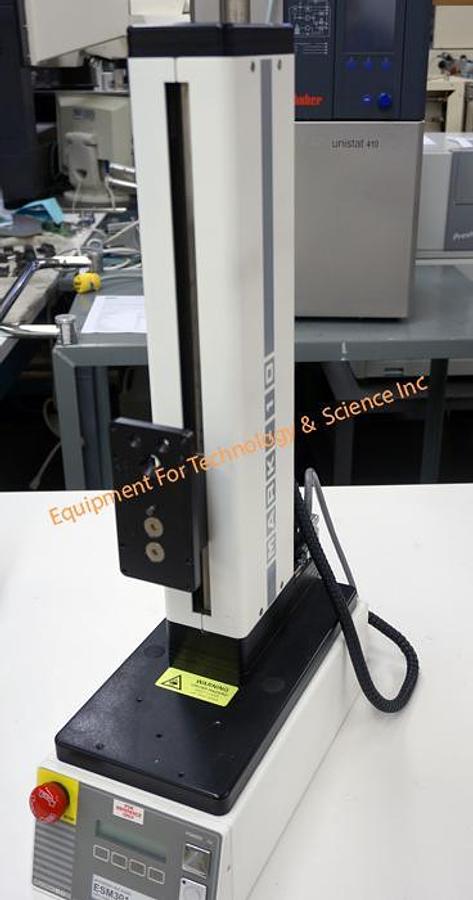

Mark 10 model ESM-301 test stand including M7-10 force gauge (10lb capacity)
Mark 10 model ESM-301 test stand including M7-10 force gauge (10lb capacity)
$3,150 (USD)
or
Call (408) 209-9278
Description
| Model | ESM301 | ESM301L |
| Load capacity: | 200 lb (1 kN) @ >24 in/min (610 mm/min) | 300 lb (1.5 kN) @ up to 24 in/min (610 mm/min) |
| Maximum travel distance: | 11.5 in (292 mm) | 18 in (457 mm) |
| Speed range: | Standard: 0.5 - 13 in/min (13 - 330 mm/min) Optional: 0.02 - 45 in/min (0.5 - 1100 mm/min) | |
| Speed setting accuracy: | ±0.2% | |
| Speed variation with load: | ±0% (stepper motor driven) | |
| Limit switch repeatability: | 0.001 in (0.03 mm) | |
| Travel accuracy: | ±0.002 in (0.05 mm) | |
| Travel repeatability: | 0.001 in (0.02 mm) | |
| Travel resolution: | 0.001 in / 0.02 mm | |
| Power: | Universal input 80-240 VAC, 50/60 Hz | |
| Weight: | 34 lb (15.4 kg) | 39.5 lb (23.7 kg) |
| Warranty: | 3 years (see individual statement for further details) | |
| Certification: | CE mark |
Specifications
| Stock Number | 3330 |
| Sort | 0 |
