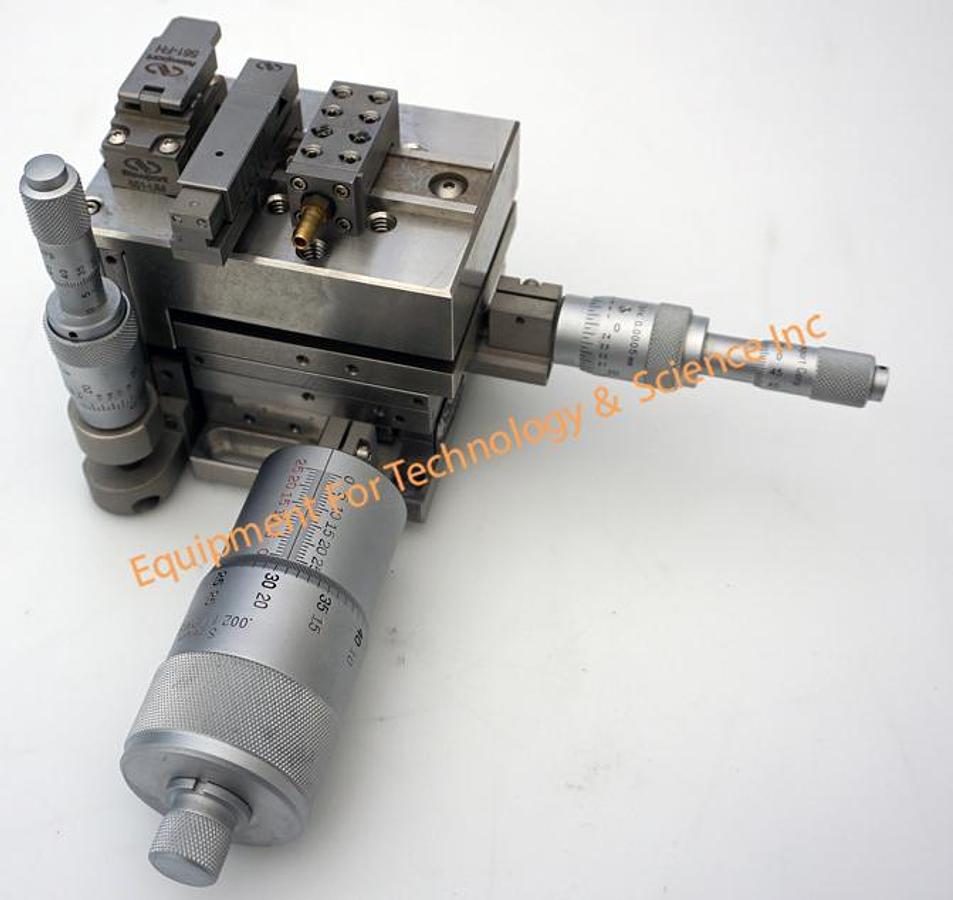

Newport 562 3 axis right hand stage with 561-FH, 561-VH, WG-16

2 Newport DM-13 differential micrometers

1 Newport/Starrett HR-1 large knob 25.4mm x .01um micrometer

561-VH vacuum waveguide mount

561-UM universal module

561-FH fiber holder for 125u fibers

WG-16 fiber array gripper

The Newport WG-16-Array Fiber Array Gripper is one of Newport's ULTRAlign series of accessories. Meant to mount on the dovetail of a ULTRAlign 561 or 562 Fiber Positioning Stage, it allows for firm, and reproduceable mounting of 1- to 16-channed fiber arrays or other short planar devices. The spring-loaded grip has a lock-open feature for one-handed operation, and 12mm wide gripping surface is polished to prevent damage to your mounted items. With the fixed jaw always remaining stationary, this gripper is a kinematic device.
