Newport 69920 power supply 350-1200w

Newport 69920 power supply 350-1200w

$3,950 (USD)

or
Call (408) 209-9278

Description

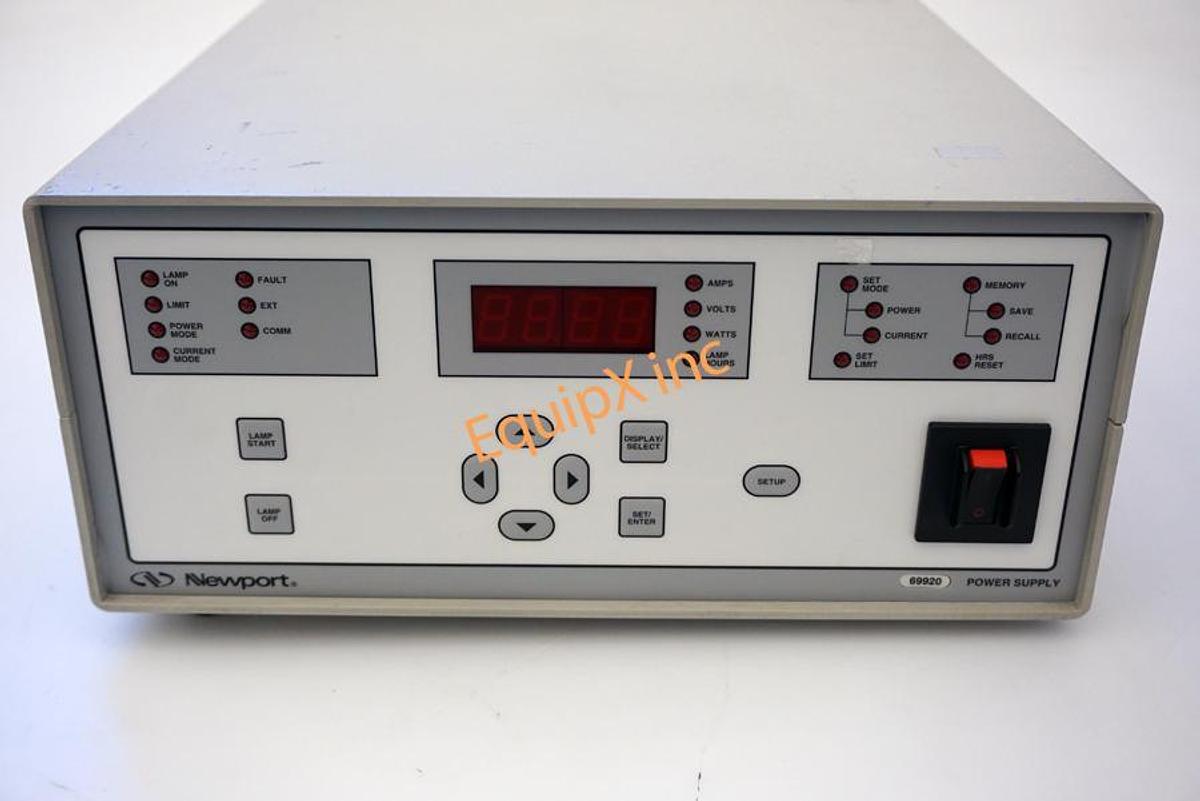

The 69920 Universal Arc Lamp Power Supply is used to power 450 W and 1000 W solar simulators.

It is highly regulated and maintains a very stable light output. For long- term stability-critical applications, the Digital Exposure Controller is recommended. It compensates for factors beyond the power supply such as lamp aging, electrode erosion, and gas absorption.

The 69920 has an RS-232 computer interface in order to set the lamp operating parameters, monitor the light output levels, and turn power on/off remotely.

Technical Specs

  • Lamp Wattage
    350 - 1200 W
  • Operating Mode
    Constant Power or Constant Current
  • Light Ripple
    < 1% RMS
  • Digital Meter Resolution, Current
    0.1 A
  • Digital Meter Resolution, Power
    1 W
  • Digital Meter Resolution, Voltage
    0.1 VDC
  • Accuracy
    < 0.05% (% full scale)
  • Line Regulation
    ± 0.05%
  • Power Requirements
  • 95 - 132 VAC, 47 - 63 Hz
  • Operating Temperature
    10 - 40°C
  • Safety Interlock Voltage
    12 VDC/GND
  • Input Circuit Breaker
    15 A, 2 Pole
  • ÂDimensions
    16.0 x 12.0 x 5.18 inch [406 x 305 x 131.6 mm] (L x W x H)
  • Weight
    20 lbs. [9 kg]
