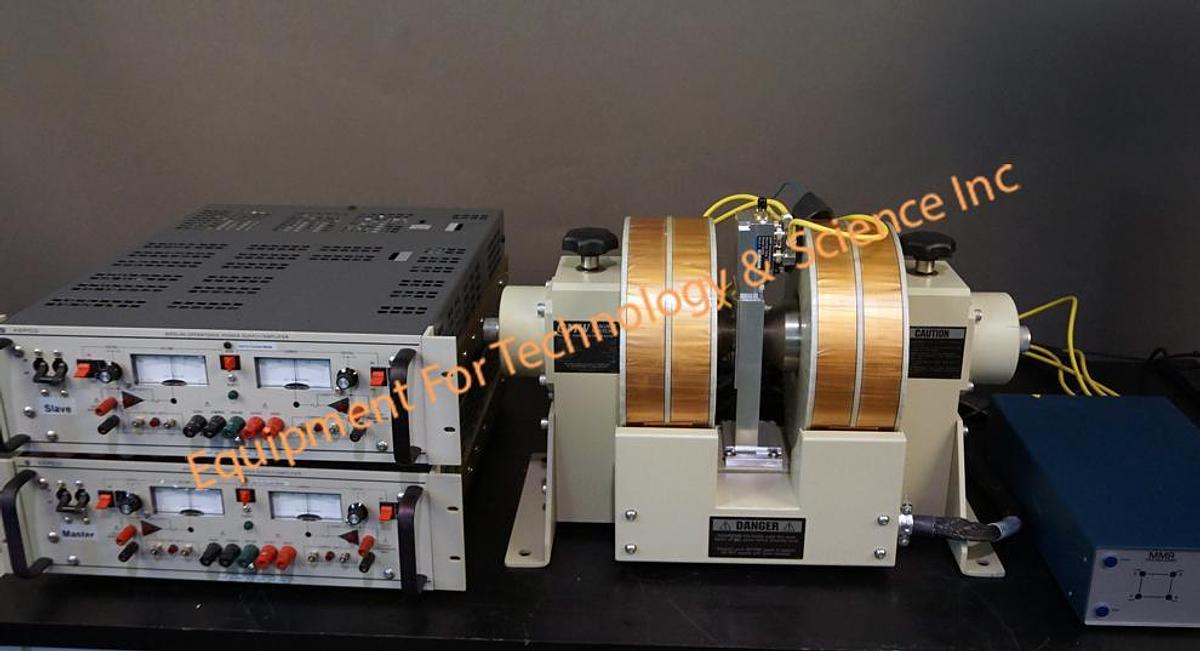

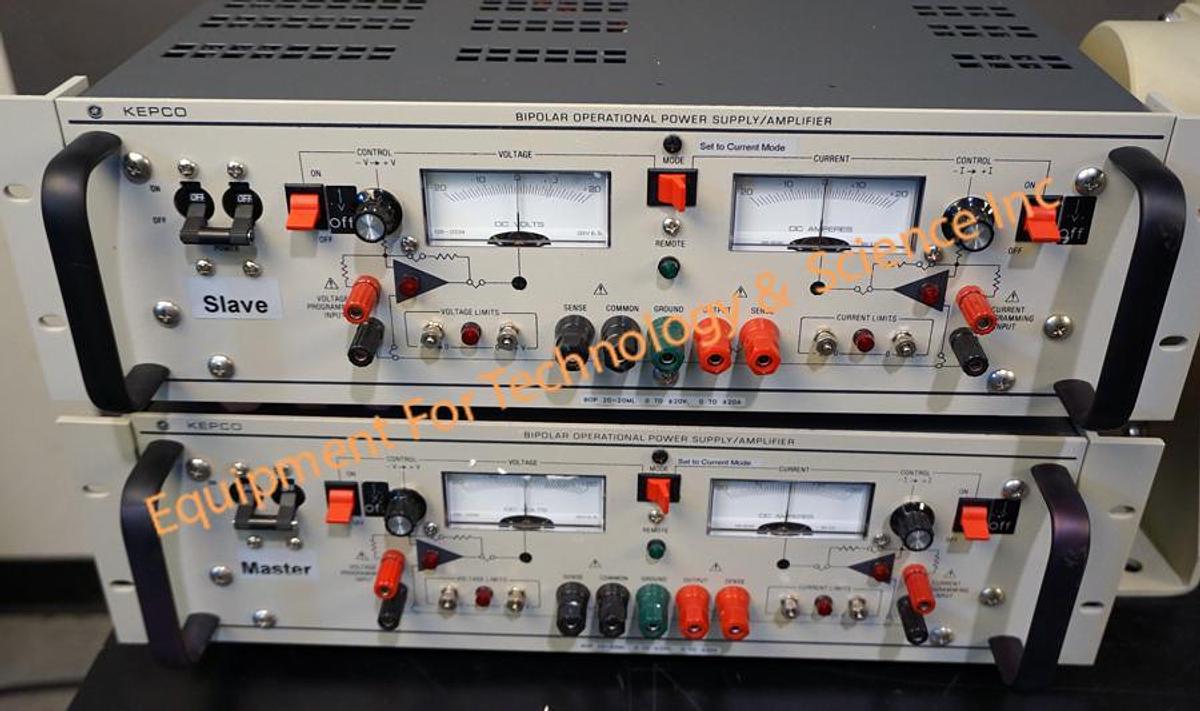

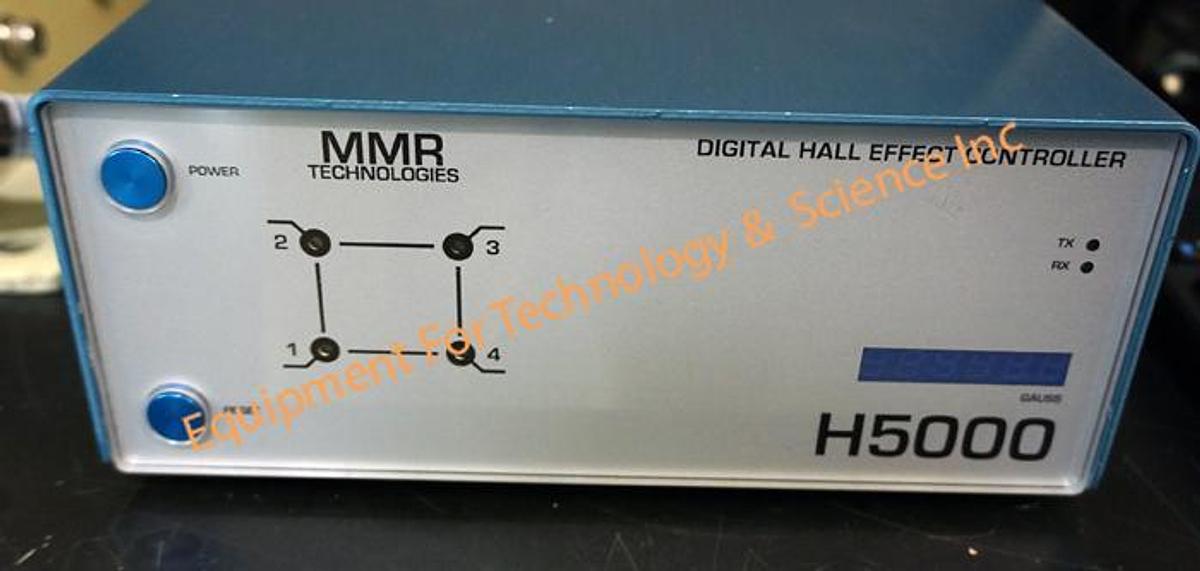

Variable Temperature Hall Dewar

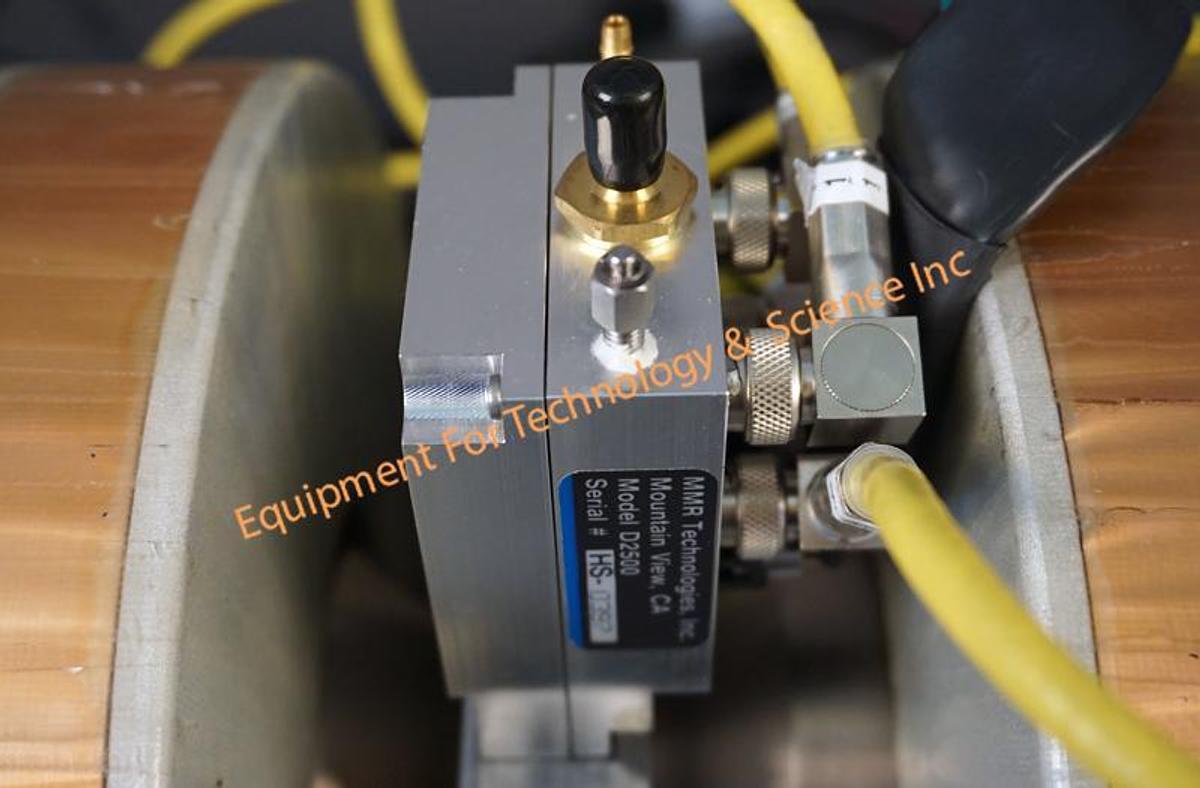

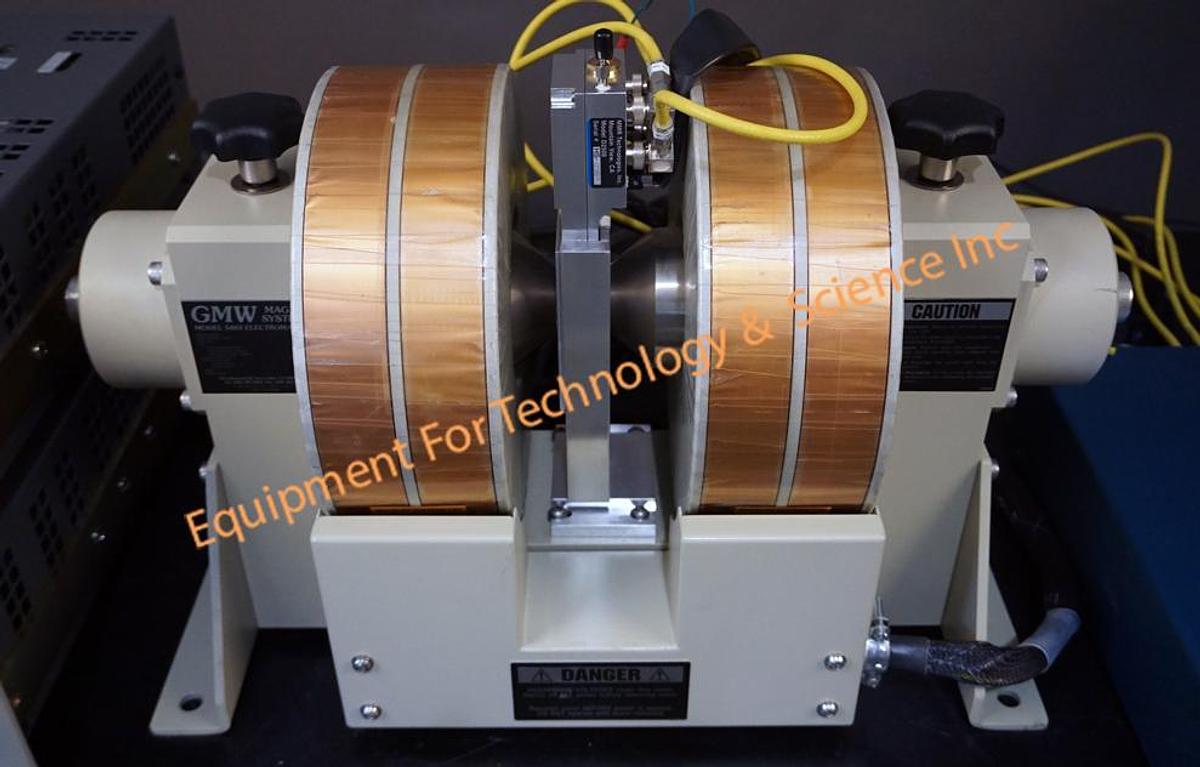

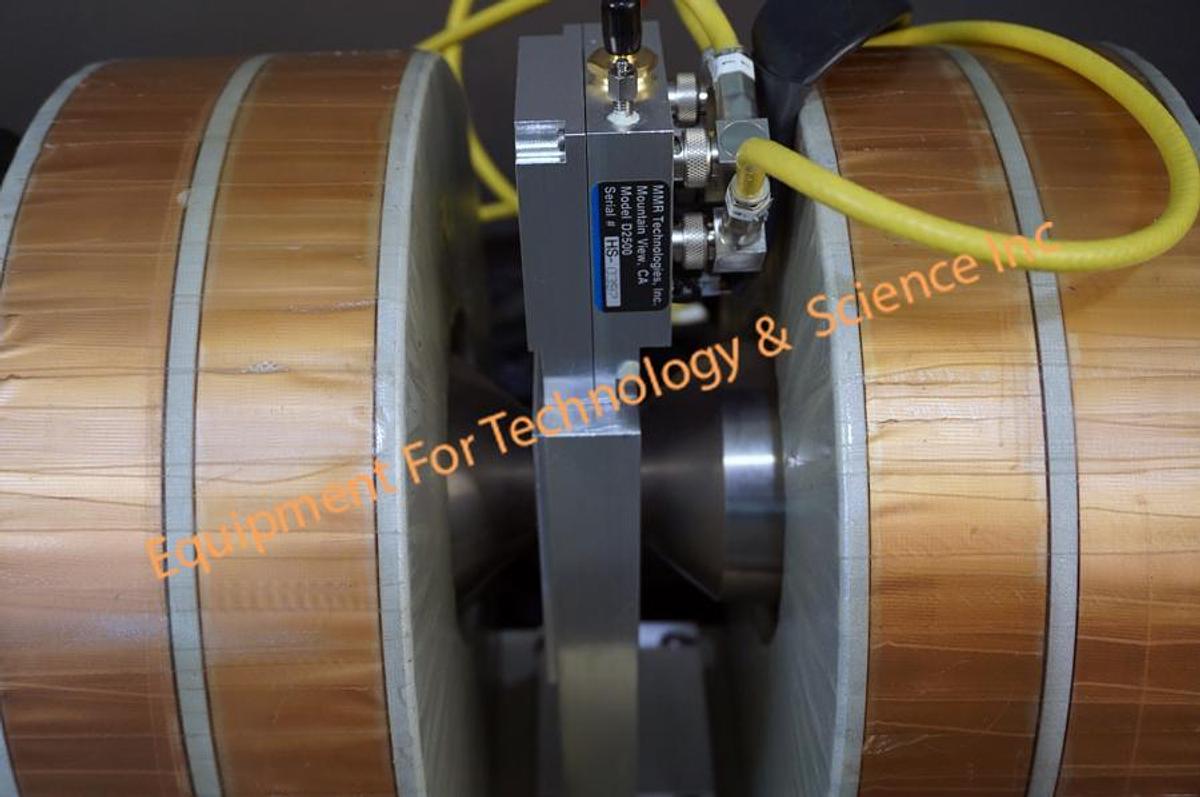

The VTHS Dewar is a low-profile Dewar designed to fit between the poles of a magnet to enable measurements to be made of the resistivity, Hall mobility and other properties of materials over a wide range of temperatures. Guarded triax leads provide electrical input to the sample via similarly guarded leads on a Kapton Harness to the sample on the cold stage. A Hall sensor immediately adjacent to the sample allows measurement of the magnetic field at the sample location.

Room temperature sample stage

Standard Window Material: Fused silica

Optional Window Materials: Sapphire, Quartz.

Guarded triax leads to sample

Four sample leads for Van der Pauw measurements

Extra BNC lead for heater for Seebeck measurements

Simple sample mounting

Integral Hall sensor at sample site

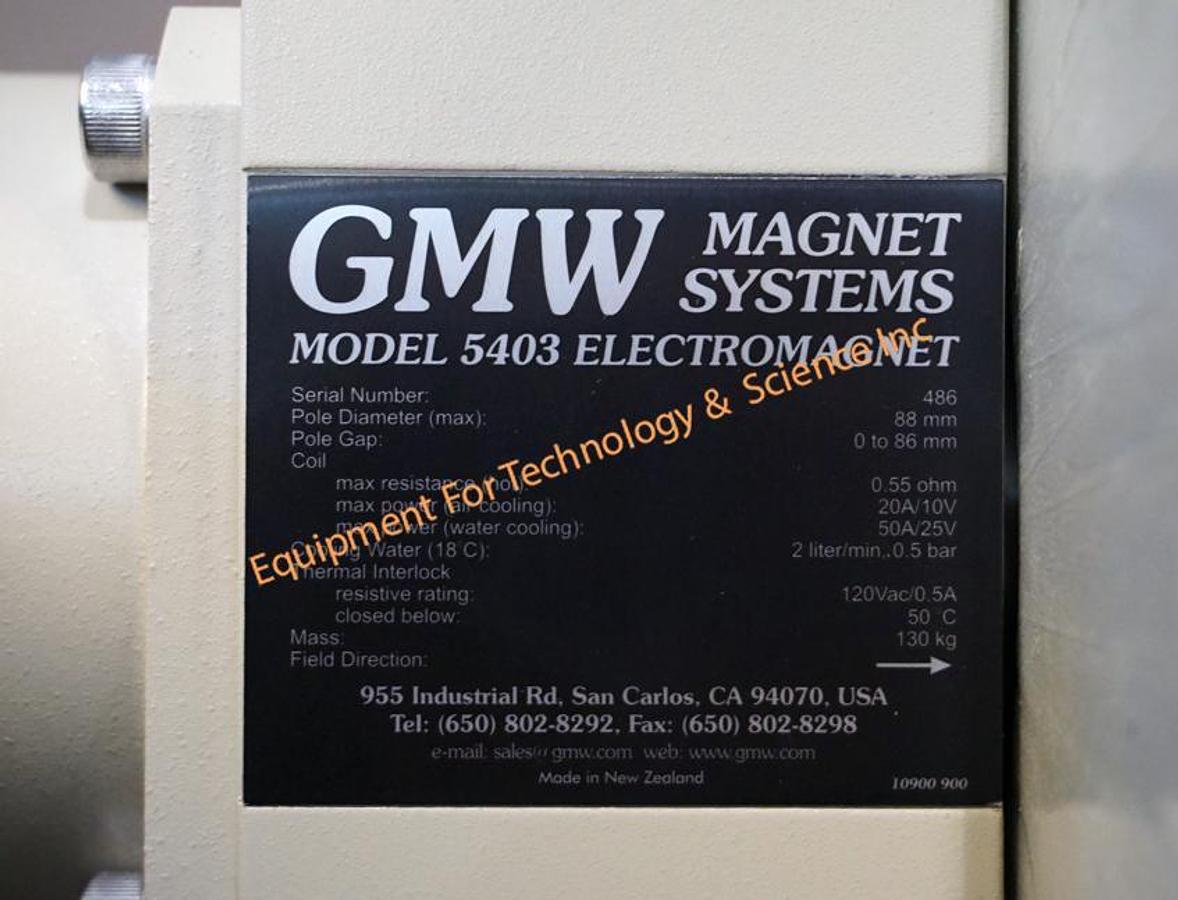

Compatible with two different MMR electromagnets, allowing maximum flexibility in sample analysis

Dewar Dimensions: 6.0" L x 2.5" W x 0.75" H at sample

Weight of Vacuum Chamber: 170 g (6 oz)

Manufacture date 2016

Currently support is available for MMR Hall effect systems thru Transient Signal Technologies of Roseville, CA
