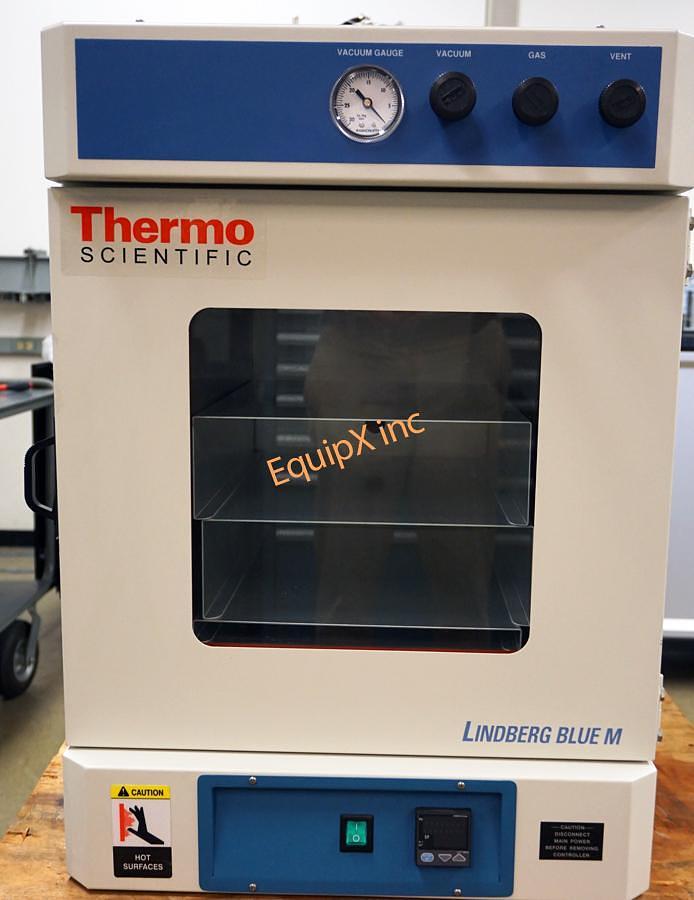

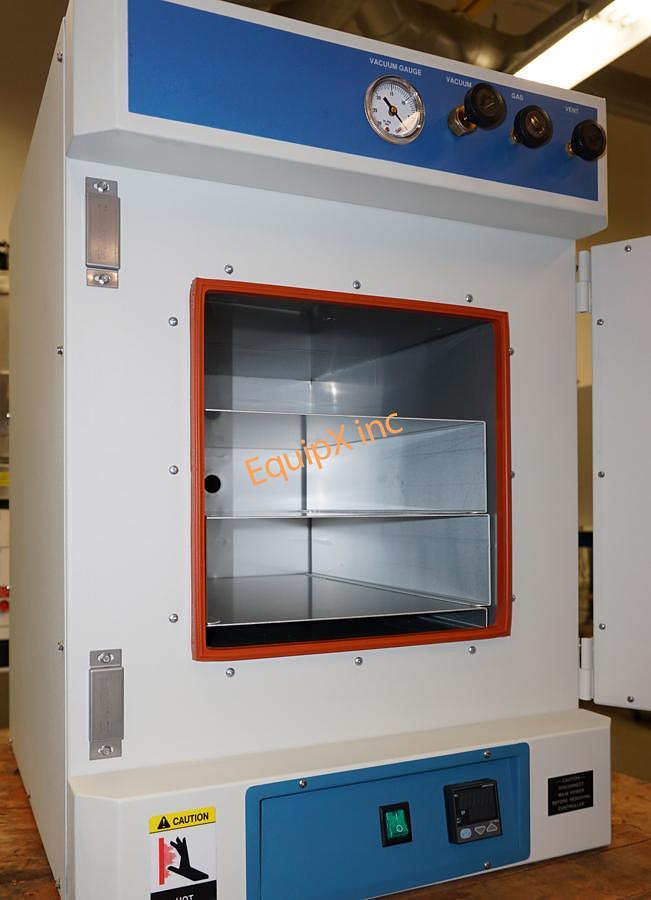

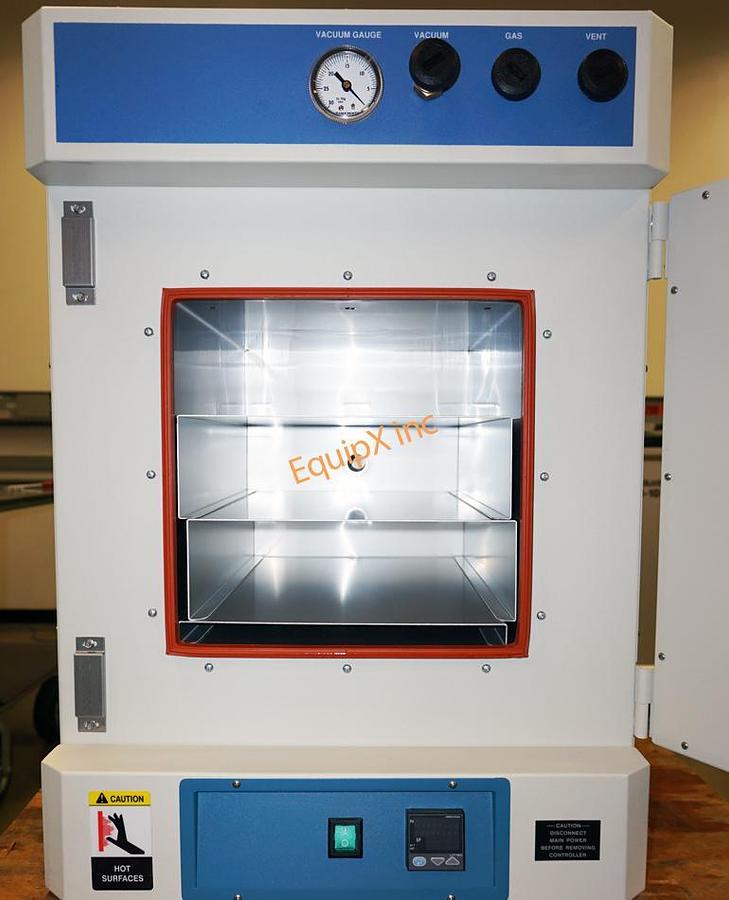

Thermo Scientific Lindberg VO1218A vacuum oven, max 260C (500F)

Digital electronic control, built-in over-temperature protection, and a fully flexible vacuum/purge/release system for a range of applications including drying, curing, outgassing, aging, process control and other applications requiring elevated temperature in reduced atmospheres or vacuum/purge with nonflammable and inert atmospheres.

Single-Setpoint Digital Microprocessor Control

Maximum temperature: 260°C (500°F) with nominal uniformity of ±3.5% of setpoint

Simultaneous LED display of setpoint and actual temperature with push-button view

Keypad data entry and pull-out control module for easy service

Independent over-temperature safety system factory set with reset push-button

Vacuum System

1in. (2.54cm) manifold, chamber rear, exterior, connects to pump or in-house vacuum source

With inert gas injection valve, fresh air inlet, vacuum exhaust port, controllable vacuum release vent port

1000 microns (1torr) capacity

Vacuum gauge, vacuum, gas and inlet valves located on front

Construction

Corrosion-resistant stainless-steel cabinet chamber

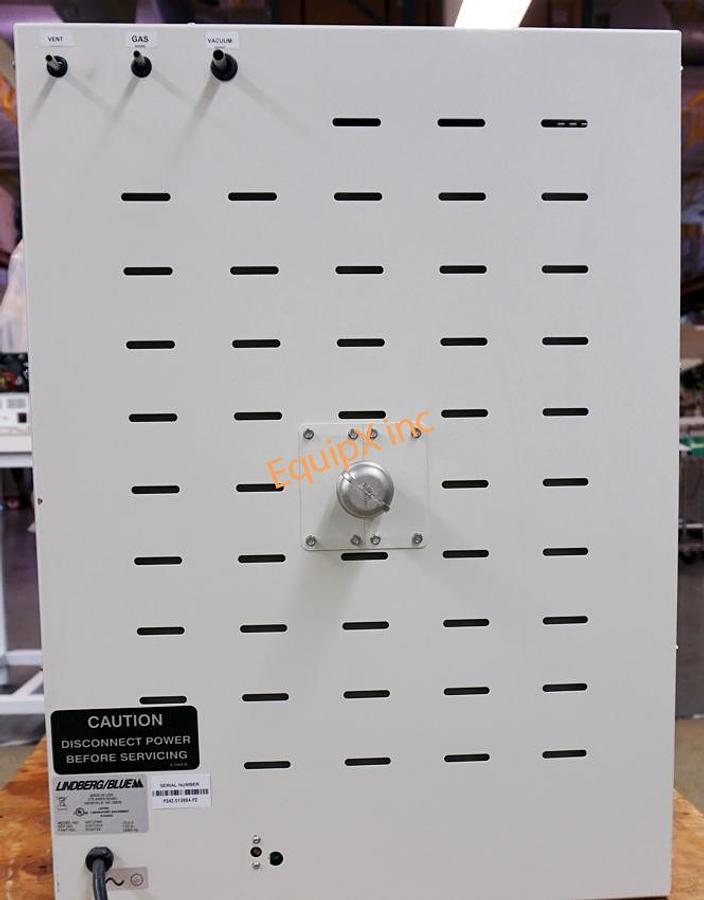

Rear-mounted vacuum manifold connects to pump (not included) or in-house vacuum source

Low-watt heating element extends oven life

Heavy-gauge steel, dual-wall construction with fiberglass insulation for minimum heat loss in walls and door

High-temperature silicone gasket is specially molded for a positive seal

Magnetic latch for positive door seal (4.5 cu. ft. capacity models include mechanical latches)

Viewing windows: 0.5in. (1.3cm) thick in two smaller capacity models or 0.75in. (1.9cm) thick in 4.5 cu. ft. model; permit observation of work in progress without loss of heat

Stainless-steel exterior models come with double door - a solid outer door over inner window door

Technical Specifications:

Max Temperature	260°C (500°F)
Volume	1.5 cu ft (42.5 L)
Outside Dimensions (LxWxH)	26 x 21 x 29" (66 x 53 x 74 cm)
Chamber Dimensions (DxWxH)	18 x 12 x 12" (46 x 31 x 31 cm)
Power	120V / 1250W
Control	Digital Microprocessor Control
Vacuum	1 x 10-2; torr (10 microns)
Temperature Range	6° above ambient to 260°C
Temperature Resolution	±1°C
Display	LED
Safety Features	Overtemperature Safey System
Chamber	Corrosion-resistant stainless steel
Ports	Inert gas port, vacuum port and vent port
Exterior finish	Painted Steel
Number of shelves	3
Electrical	120V, 50/60/Hz, 1250w
